5 Common Geotextile Fabric Applications You Should Know

Geotextile fabrics, frequently referred to absolutely as geofabrics, are permeable artificial substances engineered for use in soil and civil development projects. Their versatility stems from their core functions: separation, filtration, drainage, reinforcement, and protection. Far from being a one-size-fits-all product, exceptional geofabric kinds are designed to meet particular engineering challenges. Understanding their sensible purposes is key to specifying the proper fabric for your project. Here are 5 of the most frequent and impactful makes use of for geotextile cloth that each expert in construction, landscaping, or civil engineering must know.

1. Road and Pavement Construction
One of the foundational makes use of of geotextile material is in roadway and pavement systems. Here, it notably features as a separator. When positioned between the gentle subgrade soil and the mixture base layer, it prevents the intermixing of these two materials. This separation is quintessential for retaining the structural integrity and load-bearing ability of the road.

Without a geotextile, heavy site visitors hundreds can pressure the mixture stones down into the gentle soil, whilst concurrently pumping nice soil particles up into the mixture layer. This infection weakens the base, main to untimely rutting, potholes, and pavement failure. A strong geo cloth mesh or woven cloth acts as a bodily barrier, making sure the mixture base stays easy and functional. Furthermore, sure non-woven geofabric kinds can supply lateral drainage, supporting to dissipate pore water stress in the subgrade and lengthen the pavement's lifespan.

2. Drainage and Filtration Systems
Geotextiles excel as filters in a number of drainage applications. They permit water to ignore via whilst stopping soil particles from migrating and clogging the drainage system. This is fundamental for the long-term overall performance of French drains, trench drains, protecting wall drains, and side drains alongside roadways.

In these systems, the cloth is wrapped round a perforated pipe and mixture fill. Water from the surrounding soil flows freely thru the fabric, however the soil is retained. For an positive secure geo material filter, the fabric's obvious opening measurement (AOS) need to be cautiously chosen primarily based on the soil gradation. The incorrect preference can lead to both blinding (soil clogging the fabric) or piping (soil washing through). Modern geofabric kinds for filtration are designed to be "non-clogging" for the unique soil, making sure regular overall performance over decades.

3. Erosion Control on Slopes and Shorelines
Combating soil erosion is a fundamental environmental and engineering concern. Geotextiles supply an fine answer in countless ways. On newly seeded slopes, a biodegradable open-weave geo cloth mesh made from substances like jute or coir can be laid down. This mesh quickly stabilizes the soil, protects seeds from washout, and retains moisture to useful resource germination. As vegetation establishes, the cloth naturally decomposes.

For permanent, high-strength erosion control, artificial geotextiles are used under revetments, riprap (loose stone), or articulated concrete blocks alongside shorelines, riverbanks, and channels. Here, the material acts as a filter and separator, stopping underlying soil from being washed out thru the rock layers whilst permitting water stress to equilibrate. This utility frequently requires a high-strength woven material that can stand up to the abrasive weight of heavy stone.

4. Reinforcement for Retaining Walls and Embankments
Geotextiles supply tensile electricity to soil, which inherently has sturdy compressive however vulnerable tensile properties. In routinely stabilized earth (MSE) maintaining partitions and steep embankments, layers of high-strength woven geofabric kinds are positioned between compacted soil lifts. The cloth interacts with the soil thru friction, growing a coherent, gravity-resistant mass that can keep returned vertical or near-vertical faces.

This reinforcement permits for the building of stable, low-budget constructions that would in any other case require lots extra costly concrete or masonry walls. The material additionally serves its filtration function, stopping the buildup of hydrostatic stress at the back of the wall. While no longer an secure geo cloth filter—as it should enable water to drain—its permeability is engineered to stability each electricity and drift requirements.

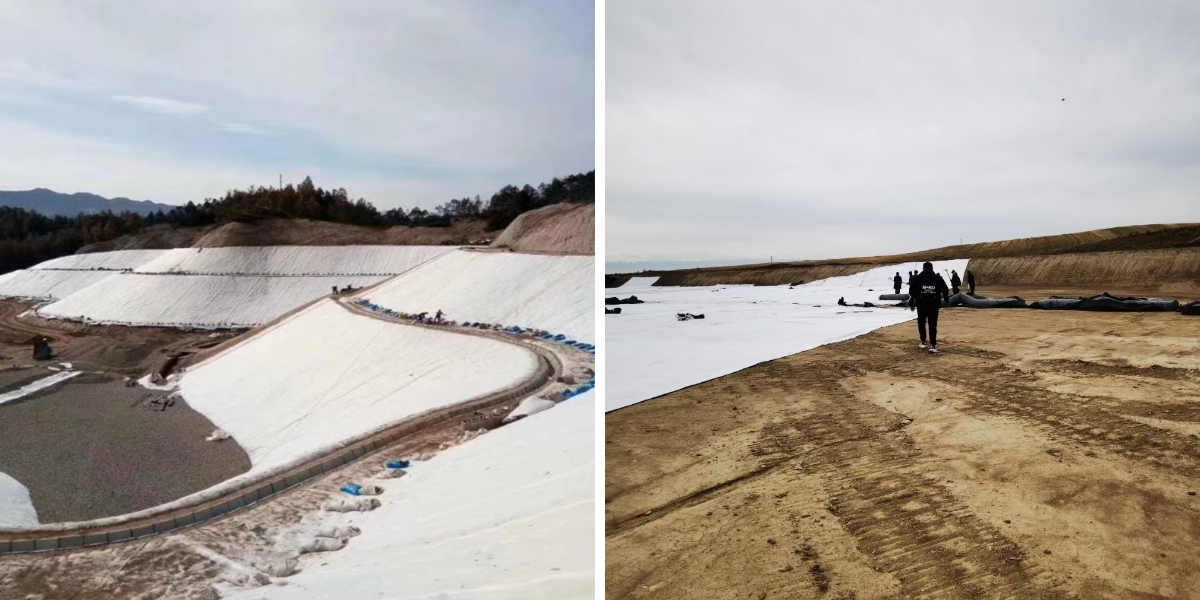

5. Landfill and Containment Protection
In environmental containment projects, such as landfills, ponds, and lagoons, geotextiles play a crucial defensive role. They are regularly used in conjunction with impermeable geomembrane liners (like HDPE or PVC). Here, a non-woven geotextile is positioned each below and above the geomembrane.

The layer beneath cushions the liner, defending it from puncture with the aid of sharp stones or irregularities in the subgrade. The layer above protects the liner from harm at some point of the placement of drainage stone or waste. In this vital application, the geotextile acts as a shielding shield, making sure the long-term integrity of the tightly closed geo cloth filter machine (where the geomembrane is the tightly closed component). Selecting the terrific cushioning geofabric kinds with the proper thickness and puncture resistance is fundamental for the liner's overall performance and longevity.

Conclusion: The Right Fabric for the Job
As these 5 functions demonstrate, geotextile cloth is a ways extra than simply a roll of cloth. It is a precision-engineered development fabric that solves complicated soil-related problems. The key to success lies in choosing the right geofabric types—whether woven, non-woven, or mesh—based on its required principal function: separation, filtration, drainage, reinforcement, or protection. From stabilizing a easy backyard direction with a geo material mesh to making sure the protection of a huge landfill with a multi-layer device inclusive of an impenetrable geo cloth filter, these versatile substances are crucial to constructing durable, efficient, and sustainable infrastructure. Always seek advice from with engineering specs and cloth facts sheets to make certain your task advantages thoroughly from the proper geotextile solution.
