The Ultimate Guide to Landfill Liners: Using Geomembranes for Base, Caps, and Leachate Ponds
Introduction to Landfill Lining Systems
A landfill is extra than simply a pit for garbage; it’s a meticulously engineered containment structure. Its principal goal is to isolate waste, mainly the liquid residue recognised as leachate, from the surrounding ecosystem. Modern composite lining structures commonly combine a geomembrane with a compacted clay layer. This dual-layer method affords a strong hydraulic barrier, with the geomembrane supplying most useful impermeability. The desire of geomembrane cloth is paramount, with excessive density polyethylene hdpe liners being the most frequent due to their remarkable chemical resistance and durability. For sure applications, pvc geomembrane affords blessings in flexibility and seam strength. Understanding these substances is key to designing wonderful containment for the landfill’s base, its last cover, and the fundamental leachate ponds.
Chapter 1: The Foundation of Safety: Base Liner Systems
The base liner is the first and most crucial line of protection at the backside of a landfill cell. Its sole motive is to stop leachate from migrating into the subsoil and groundwater.
Material Selection: HDPE Takes the Lead
For base liners, cloth overall performance is non-negotiable. High density polyethylene hdpe liners are the enterprise wellknown for this application. Their superb houses include:
Exceptional Chemical Resistance: HDPE can face up to the aggressive brew of chemical substances and natural compounds determined in leachate.
High Tensile Strength and Durability: It resists punctures and stresses from the overlying waste and drainage layers.
Very Low Permeability: It offers an actually impenetrable barrier to fluid flow.
Long Service Life: Properly hooked up HDPE can function for many years underneath difficult conditions.
While pvc geomembrane is used in some containment scenarios, its chemical resistance profile makes it much less frequent for important base liners in municipal stable waste landfills, the place the leachate composition is distinctly variable and aggressive.
Design and Installation
A cutting-edge base liner is a composite system. The geomembrane is established over a organized subgrade and is frequently coupled with a geosynthetic clay liner (GCL) or compacted clay. Above it, a drainage layer collects leachate, which is then piped to series ponds. Installation needs excessive care: seams are thermally welded to create continuous, examined barriers, and the liner need to be covered from injury through shielding geotextiles.
Chapter 2: Sealing it Shut: Final Capping Systems
Once a landfill phone reaches capacity, it have to be completely sealed off from the environment. The last cap, or closure system, performs various critical functions: it minimizes precipitation infiltration (thereby lowering leachate generation), controls landfill fuel migration, and helps floor vegetation.
The Role of Geomembranes in Capping
A capping geomembrane acts as a raincoat for the closed landfill. By developing a barrier towards water ingress, it dramatically cuts down the extent of leachate that wishes to be managed. Like the base, caps regularly use composite systems. High density polyethylene hdpe liners are once more a famous preference for their established sturdiness and resistance to ultraviolet (UV) radiation when accurate formulated, even though they are generally protected quickly after installation. Their power helps withstand achievable differential agreement of the waste below.
Material Considerations for Caps
While HDPE is prevalent, pvc geomembrane is additionally a sturdy contender for capping applications. Its most suitable flexibility and elongation homes can be fine in situations the place some agreement is anticipated, as it can conform to modifications besides compromising integrity. The preference between HDPE and PVC relies upon on site-specific elements like agreement predictions, cost, and regulatory approval. Both substances create the vital barrier that isolates the waste from the ecosystem and hydrologic cycle for the lengthy term.

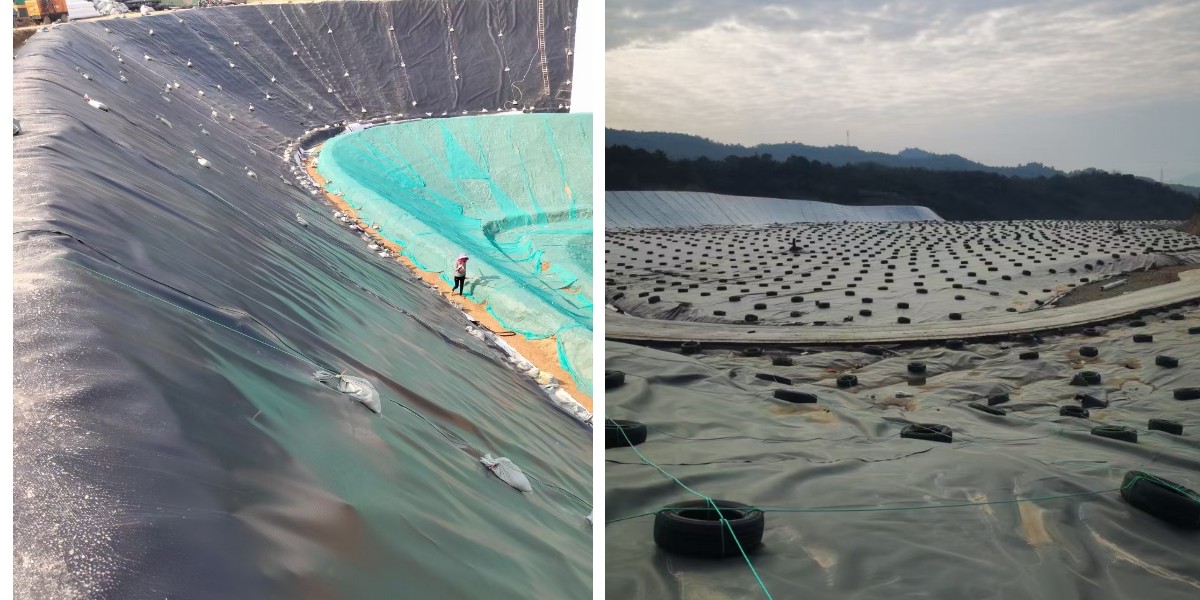

Chapter 3: Containing the Contaminant: Leachate Pond Liners
Collected leachate is channeled into specifically designed storage or evaporation ponds earlier than therapy and disposal. Lining these ponds is truely obligatory to stop this poisonous liquid from polluting nearby groundwater.
Why Geomembranes are Non-Negotiable for Leachate Ponds
Leachate is a complicated environmental hazard. A pond liner should be chemically resistant, automatically robust, and totally impermeable. This is a ideal software for engineered geomembranes. They furnish a cost-effective, reliable, and installable answer for developing a fundamental and from time to time secondary containment system. The ideas are comparable to growing a massive, industrial-scale hdpe lining for water tank, however with even higher needs for chemical resistance and environmental safety.
Selecting the Right Liner for the Pond
High density polyethylene hdpe liners are the most often designated fabric for leachate ponds. Their unmatched chemical resistance profile ensures they can deal with the harsh leachate combine over lengthy periods. The set up requires specialist welding and detailing round pipes and structures. For smaller or transient ponds, or the place flexibility is a high concern, a pvc geomembrane can be a appropriate alternative, imparting exceptional seam power and ease of set up on complicated slopes. Ultimately, the liner transforms a easy excavation into a secure, regulated containment facility, tons like a impervious hdpe lining for water tank ensures protected potable water storage—but in reverse, retaining a unsafe liquid securely contained.
Conclusion: The Geosynthetic Barrier for Environmental Protection
From base to cap to pond, geomembranes furnish the vital engineered barrier that makes safe, current waste disposal possible. The determination of the proper material—whether the strong excessive density polyethylene hdpe liners or the bendy pvc geomembrane—is a vital engineering choice based totally on chemical exposure, stresses, and website conditions. These artificial liners, when designed and mounted to strict first-rate assurance standards, structure a continuous, impermeable containment system. They defend groundwater resources, manipulate leachate generation, and make sure that landfills meet their environmental stewardship responsibilities for many years after closure. Just as a dependable hdpe lining for water tank is imperative to easy water supply, a high-performance geomembrane device is critical to defending our surroundings from landfill contaminants.
