Choosing the Right Geocell: A Look at HDPE, Polymer Alloys, and Key Specifications

In the world of civil engineering and floor stabilization, the geocell has revolutionized how we method soil reinforcement, load support, and erosion control. A geocell, fundamentally, is a three-dimensional, honeycomb-like shape made from polymeric materials. When increased and crammed with soil, aggregate, or concrete, these cell confinement structures create a inflexible mattress that distributes masses over a wider area, extensively improving the performance of the underlying soil. Whether for heavy-duty roadways, steep slope protection, or difficult environmental projects, choosing the fantastic geocell is necessary for long-term success and cost-effectiveness. This complete information delves into the core cloth choices—specifically geocell HDPE and superior polymer alloys—and outlines the integral specs you should reflect onconsideration on to make an knowledgeable selection for your project.

Understanding Geocell Materials: HDPE vs. Polymer Alloys

The performance, durability, and suitability of a geocell are intrinsically linked to its base polymer. The two major classes dominate the market: regular High-Density Polyethylene (HDPE) and contemporary Polymer Alloys.

High-Density Polyethylene (HDPE) Geocells

Geocell HDPE is the most broadly diagnosed and traditionally used material. HDPE is a thermoplastic polymer recognised for its excessive strength-to-density ratio, incredible chemical resistance, and durability. Cellular confinement structures made from HDPE are generally manufactured via a non-stop extrusion and ultrasonic welding process, growing strong, seamless strips that are then perforated and multiplied on-site.

●Key Advantages: HDPE provides right tensile energy and affect resistance. It is fairly resistant to a vast vary of chemicals, which includes acids, alkalis, and salts, making it appropriate for many industrial and contaminated sites. It additionally affords gorgeous ultraviolet (UV) resistance when excellent stabilized with carbon black.

●Considerations: Pure HDPE has a described melting factor and can emerge as extra bendy in high-temperature environments. Its stress leisure traits suggest that beneath constant, long-term load, some preliminary anxiety loss may additionally occur. Therefore, geocell HDPE merchandise are regularly nice proper for purposes the place the most important requirement is confinement and erosion manipulate as a substitute than ultra-high, dynamic load-bearing over excessive temperatures.

Advanced Polymer Alloy Geocells

Polymer alloy geocells symbolize the next technology in cell confinement gadget technology. These are now not easy blends however are molecularly engineered composites, regularly incorporating substances like novel polyethylenes, polyester, or nylon into their matrix.

●Key Advantages: The major aim of alloying is to beautify precise performance properties. These alloys are engineered for highest quality creep resistance (minimal deformation below long-term load), greater stiffness (or modulus), and incredible overall performance throughout a broader temperature range. A polymer alloy geocell usually keeps its structural integrity and load distribution skills from severe bloodless to excessive heat, making it best for annoying infrastructure initiatives like heavy-haul roads, railways, and everlasting earth retention walls.

●Considerations: This superior overall performance frequently comes at a greater preliminary cloth cost. However, the life-cycle fee gain can be sizeable due to decreased maintenance, thinner mixture infill requirements, and prolonged provider existence underneath extreme conditions.

Critical Specifications for Geocell Selection

Beyond the base material, a suite of bodily and mechanical specs defines a geocell's capability. Understanding these parameters is imperative for matching the product to your project's stresses and environmental conditions.

1. Sheet Thickness & Density

The thickness of the geocell strip wall is a direct indicator of its robustness and weight capacity. It is measured in mils (thousandths of an inch) or millimeters. Thicker partitions usually supply greater stress and puncture resistance. Density, expressed in g/cm³, relates to the material's molecular shape and crystallinity. For geocell HDPE, density commonly stages from 0.941 to 0.965 g/cm³, contributing to its chemical resistance and strength.

2. Tensile Strength & Yield Strength

Tensile energy measures the pressure required to pull a mobile confinement machine strip to the factor of breaking. More critically, yield energy suggests the stress at which the cloth starts to deform plastically (permanently). For load-bearing applications, a excessive yield electricity is indispensable to stop the geocell from stretching and dropping confinement underneath load. Polymer alloys frequently excel in this metric.

3. Creep Resistance

Creep is the tendency of a polymer to slowly deform below sustained mechanical stress over time. Superior creep resistance is arguably the most essential property for a geocell in permanent, load-bearing applications. It ensures the gadget continues its geometry and load distribution potential for decades. This is a key vicinity the place superior polymer alloys are particularly formulated to outperform wellknown HDPE.

4. Weld Strength (Seam Strength)

The integrity of the ultrasonic or welded seams that shape the geocell cells is paramount. Weld electricity ought to be excessive adequate to forestall seams from peeling aside for the duration of installation, infill compaction, or below operational loads. A sturdy weld ensures the mobile confinement machine acts as a unified, monolithic mattress.

5. Environmental Resistance

A fine geocell need to stand up to its running environment.

● UV Resistance: Prolonged solar publicity can degrade polymers. All geocells ought to include UV stabilizers. Geocell HDPE is usually stabilized with 2-3% carbon black for superior, long-lasting UV protection.

●Chemical Resistance: Both HDPE and polymer alloys normally provide extraordinary resistance to soil chemicals, however unique mission contaminants ought to be reviewed in opposition to the material's chemical resistance charts.

Matching the Geocell to Your Application

Choosing between geocell HDPE and polymer alloy comes down to utility requirements, format life, and whole value of ownership.

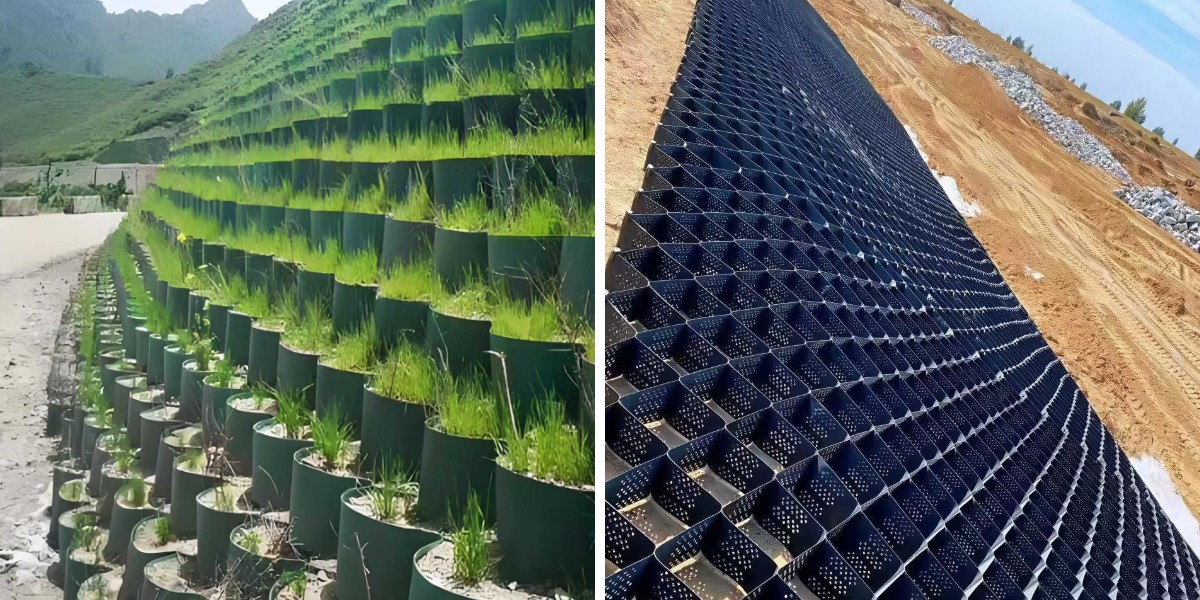

●For Erosion Control on Slopes & Channel Linings: Standard geocell HDPE is frequently flawlessly adequate. Its power and sturdiness efficaciously stabilize topsoil and vegetation, stopping floor erosion.

●For Access Roads, Working Platforms, & Parking Lots: Consider the site visitors load and graph life. For transient or light-duty everlasting roads, HDPE may also suffice. For heavy equipment, typical use, or high-stress areas, a polymer alloy geocell with greater stiffness and creep resistance will grant a greater stable, long lasting platform, frequently permitting for decreased mixture thickness.

●For Permanent Infrastructure & Critical Load Support: This consists of motorway subgrade stabilization, railway foundations, and earth retention walls. Here, the long-term, high-load overall performance of an superior polymer alloy mobile confinement machine is generally specified. Its stronger engineering residences limit long-term deformation and make sure structural integrity over the asset's lifespan.

Conclusion: A Foundation for Success

There is no one-size-fits-all geocell. The desire between reliable geocell HDPE and high-performance polymer alloys hinges on a designated evaluation of your project’s mechanical demands, environmental conditions, and overall performance expectations. By shifting past a established search for a "geocell" and focusing on the core fabric science and key specifications—creep resistance, yield strength, weld integrity, and environmental durability—you can choose the most reliable cell confinement system. This knowledgeable selection ensures a stable, long-lasting, and low in cost solution, laying a clearly stable basis for your project's success. Always seek advice from with certified geotechnical engineers and manufacturer's technical records to validate your choice for the precise website online conditions.
