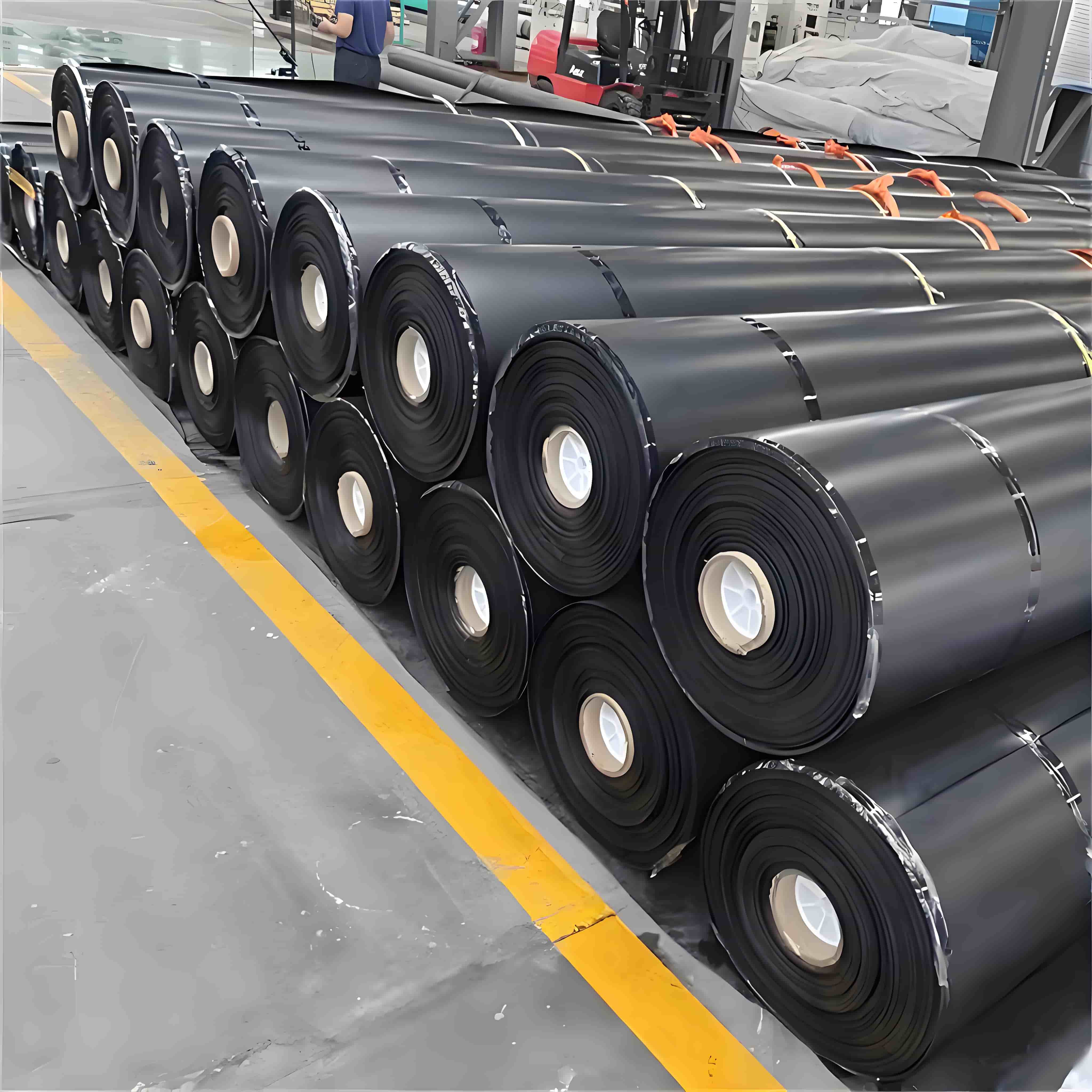

Polyethylene Pond Liner
1. Anti seepage and water locking: Dense materials block water leakage, maintain stable pond water levels, and reduce the frequency of water replenishment
2. Flexible and snug fit: Easy to bend and adapt to irregular pool shapes, fits snugly against bottom potholes, and has no blind spots for anti-seepage
3. Durable and resistant to manufacturing: resistant to UV rays, acid and alkali, resistant to biting by aquatic organisms and external punctures, with a long service life
4. Easy installation: easy to cut and splice, no need for professional tools, individuals or small teams can quickly complete the installation
Products Introduction：
Polyethylene Pond Liner is a flexible anti-seepage material designed specifically for pond and water feature engineering. It is made of high-density polyethylene (HDPE) or linear low-density polyethylene (LLDPE) as raw materials, and is produced through blow molding technology with a thickness of 0.5-1.5mm, commonly used specifications. Its core positioning is "an efficient water barrier for pond water bodies". With the dense molecular structure and flexible properties of polyethylene material, it solves the problems of natural pond leakage and difficult maintenance of artificial pond water level, while also considering ecological compatibility and construction convenience. It is suitable for various pond scenes such as family courtyard ponds, landscape water features, aquaculture ponds, etc. It is a key material for "water conservation, anti-seepage, and ecological protection" in pond construction.
Product Features：
1. Efficient water locking and anti-seepage, water-saving and worry free
The dense molecular structure of polyethylene results in a permeability coefficient of ≤ 1 × 10 ⁻¹² cm/s, almost eliminating water leakage and reducing pond water level loss rate by over 95%; Whether it is rainwater, pond water, or aquaculture water bodies, they can effectively block their infiltration into the ground, reduce the labor and water resource costs of frequent replenishment, especially suitable for arid areas or pond projects with valuable water resources.
2. Flexible and easy to shape, suitable for various pool shapes
The product has a fracture elongation rate of ≥ 500% (made of LLDPE material) and can be bent and folded freely, perfectly fitting the contours of circular, irregular, and varying depths of ponds. It can even adapt to landscape ponds with complex structures such as rockeries and stacked water, without any blind spots for seepage prevention; Lightweight (0.5mm thickness, about 500g per square meter), easy to handle and cut, ordinary scissors can adjust the size according to the pool shape, solving the pain points of rigid anti-seepage materials that are difficult to shape and prone to cracking.
3. Durable and durable, eco-friendly
After UV treatment, the performance degradation after 5 years of outdoor exposure is ≤ 8%, and it can withstand direct sunlight and wind and rain erosion; Anti puncture strength ≥ 200N, able to resist slight biting and friction from stones, tree roots, and aquatic organisms (such as fish and turtles) in the pond; The material is non-toxic and odorless, meeting food grade standards, and will not release harmful substances to pollute water bodies, ensuring the living environment of aquatic plants, fish, and other organisms.
4. Easy installation and simple maintenance
No professional mechanical equipment is required, only 2-3 people are needed to complete the laying: after cleaning the bottom of the pool, the membrane body can be directly unfolded, and the laying of ponds within 100 square meters can be completed within 1 day through overlapping, heat sealing, or special tape splicing; The surface is smooth and not easy to adhere to silt and algae. Daily cleaning only requires simple flushing, and it is resistant to acid and alkali corrosion. It can withstand changes in water quality in the pond (such as pH 6-9), and the maintenance cost in the later stage is extremely low.
5. Excellent cost-effectiveness and flexible customization
Compared to traditional concrete and clay anti-seepage methods, the material cost has been reduced by 30% -60%, and the construction period has been shortened by 50%; Support customized specifications with a width of 1-10m and any length, reducing the number of seams and minimizing the risk of leakage; We offer color options such as black (for heat absorption and insulation, suitable for aquaculture ponds) and blue (for simulating natural water bodies, suitable for landscape ponds), balancing functionality and aesthetics.
Product Parameters：
Metric | ASTM | unit | Test value | Minimum test frequency | ||||||
test method | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50mm | 3.00 mm | |||
Minimum average thickness | D5199 | mm | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | Per volume |
Minimum value (any one of 10) | -10% | -10% | -10% | -10% | -10% | -10% | -10% | |||
minimum density | D 1505/D 792 | g/cm3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 90,000 kg |
Minimum average tensile performance (1) | D638 Type IV | |||||||||
Breakage strength, | N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 | 9,000 kg | |
yield strength | N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 | ||
Strain extension, | % | 700 | 700 | 700 | 700 | 700 | 700 | 700 | ||
yield extension | % | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||
Minimum strength of right-angle tear | D 1004 | N | 93 | 125 | 156 | 187 | 249 | 311 | 374 | 20,000 kg |
Minimum puncture strength | D4833 | N | 240 | 320 | 400 | 480 | 640 | 800 | 960 | 20,000 kg |
Constant tensile load stress cracking (2) | D5397 | hour | 300 | 300 | 300 | 300 | 300 | 300 | 300 | Based on GRI GM-10 |
Carbon black content | D 1603(3) | % | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 9,000 kg |
Carbon black dispersion | D5596 | Note (4) | Note (4) | Note (4) | Note (4) | Note (4) | Note (4) | Note (4) | 20,000 kg | |
Oxygen induction time (OIT) (5) | 90,000 kg | |||||||||
(a) Standard OIT | D3895 | minute | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
（b） high-handed OIT | D5885 | minute | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
85℃ Oven aging (minimum average) (5)(6) | Per formula | |||||||||
(A) Standard OIT is retained after 90 days | D 5721 | % | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
(B) High voltage OIT is retained for 90 days | D 3895 D5885 | % | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |
Ultraviolet resistance (7) | Per formula | |||||||||
（a） standard OIT | D3895 | Note (8) 50 | ||||||||
(b) Retention of high pressure OIT after 1600 hours (9) | D5885 | % | ||||||||
Product Applications：
1. Family courtyard and landscape pond
Courtyard small fish pond/water feature: A small ornamental fish pond, rockery flowing water, and fountain water feature installed in the family courtyard to prevent water leakage and maintain the landscape effect, suitable for landscape decoration projects in villas and residential courtyards.
Park/community landscape pool: used for landscape ponds and artificial lakes in urban parks and community green belts, adapted to ecological water features with aquatic plants such as lotus and water lilies, which not only prevent seepage but also ensure the growth environment of plant roots.
2. Aquaculture ponds
Freshwater aquaculture ponds: laid at the bottom of fish fry cultivation ponds, koi aquaculture ponds, and crayfish aquaculture ponds to prevent water leakage and soil pollution, facilitate water quality management and pond cleaning, and are suitable for home farming or small-scale farming projects.
Special aquaculture: used in aquaculture ponds for amphibians such as turtles and frogs, with smooth surfaces to reduce disease growth, anti-seepage properties to maintain stable aquaculture water bodies, and suitable for special aquaculture scenarios.
3. Agriculture and Irrigation Ponds
Agricultural Water Storage Tank: Installed at the bottom of farmland irrigation water storage tanks and orchard water storage tanks to reduce water leakage, improve irrigation water utilization efficiency, and adapt to agricultural water-saving projects in arid areas.
Rice field aquaculture pond: a field pond used for fish and shrimp farming in rice fields, with anti-seepage measures and easy control of water level and quality, achieving an ecological agricultural model of "rice fish symbiosis" and adapting to comprehensive agricultural development projects.
4. Other distinctive ponds
Children's Play Pool: A small play pool used in amusement parks and kindergartens, made of non-toxic and environmentally friendly materials to ensure children's safety, with anti-seepage properties to maintain water levels, and suitable for the construction of parent-child entertainment venues.
Sewage treatment oxidation pond: an oxidation pond used for rural domestic sewage treatment and small-scale industrial wastewater treatment. The anti-seepage membrane prevents sewage from infiltrating into the underground and polluting the soil, making it suitable for environmental protection sewage treatment projects.
Polyethylene Pond Liner, with its core advantages of "efficient water locking and anti-seepage, flexible adaptation to various shapes, durable and eco-friendly, convenient and affordable", accurately solves the core pain points of "serious leakage, complex construction, and ecological incompatibility" in various pond projects, and is the "exclusive anti-seepage tool" for pond construction.
