Performance and Practical Application of Composite Geomembranes in Reservoir Construction

Water loss via reservoir seepage is a necessary problem for agriculture, municipalities, and industry. Unlined reservoirs can lose over 30% of saved water annually, main to greater charges and environmental stress. Traditional clay or concrete liners regularly crack, leak, or require regular maintenance. A confirmed choice is the Composite Geo-membrane, which combines a geomembrane with geotextile layers to create a flexible, almost impermeable barrier. This case find out about examines how a HDPE Composite Geomembrane was used to retrofit a leaking irrigation reservoir, accomplishing a 97% discount in seepage. We additionally draw on ideas from Landfill Composite Geomembrane applications to spotlight great practices for long-term water conservation.

1. The Problem: An Unlined Reservoir Losing Water

The Green Valley Irrigation Reservoir (a consultant case) is placed in a semi-arid agricultural zone. Originally constructed with compacted earth and a herbal sandy clay floor, it had an fine permeability of about 10⁻⁵ cm/s. Daily seepage reached 3,200 cubic meters, representing 35% of complete annual inflow. This compelled farmers to pump high priced groundwater and created water shortages downstream. The nearby water district determined to retrofit the reservoir with a high-performance lining system. The dreams have been to decrease seepage to beneath 5% of storage, make certain a 25-year provider life, and entire set up inside a 90-day dry season window. Engineers chosen a Composite Geo-membrane system as the most dependable and in your price range solution.

2. Material Selection and Design

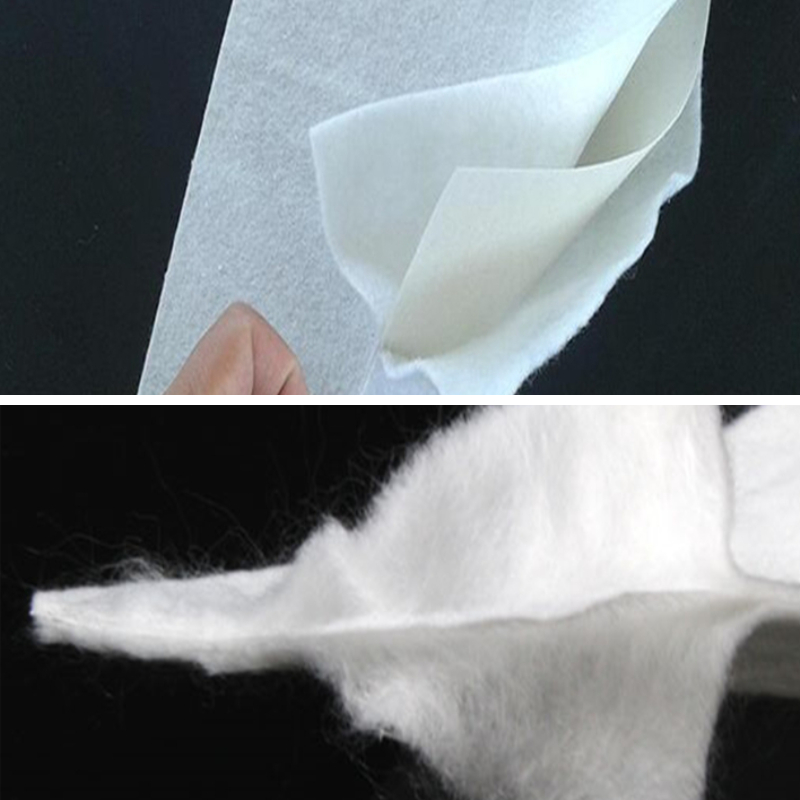

The website online introduced challenges: a rocky subgrade with sharp gravel, seasonal temperature swings from -10°C to 42°C, and barely alkaline water (pH 8.2). Any lining cloth had to withstand puncture, UV degradation, and thermal expansion. The engineering crew distinct a two mm thick HDPE Composite Geomembrane with a nonwoven geotextile cushion (400 g/m²) positioned underneath it. On the aspect slopes, a 2nd lighter geotextile was once brought above the geomembrane to guard in opposition to UV publicity and enable a soil cover. This plan borrows immediately from Landfill Composite Geomembrane systems, the place geotextiles furnish puncture safety and drainage for any minor leaks. The HDPE cloth gives extraordinarily low permeability (1 × 10⁻¹⁴ cm/s for water), excessive tensile strength, and tremendous resistance to each chemical substances and sunlight.

3. Installation Process

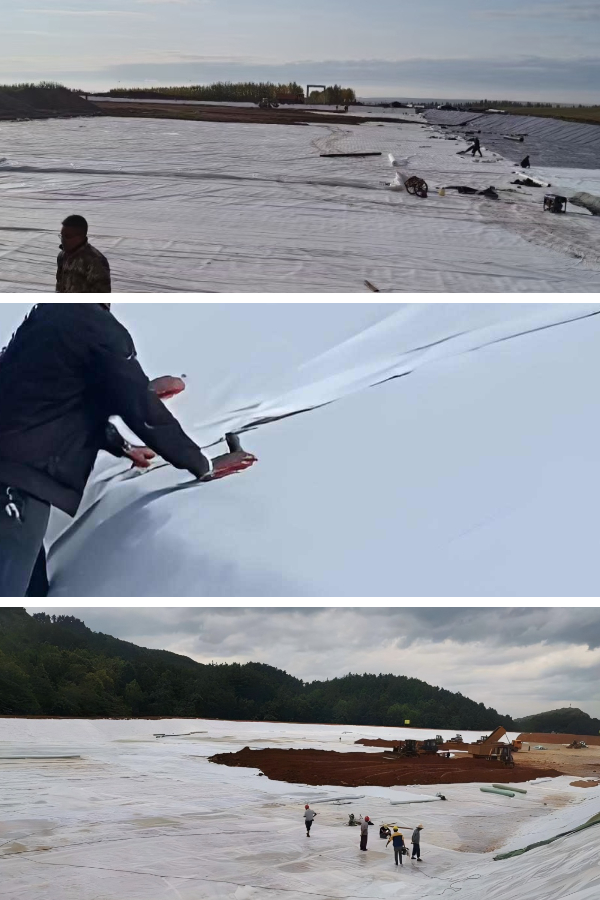

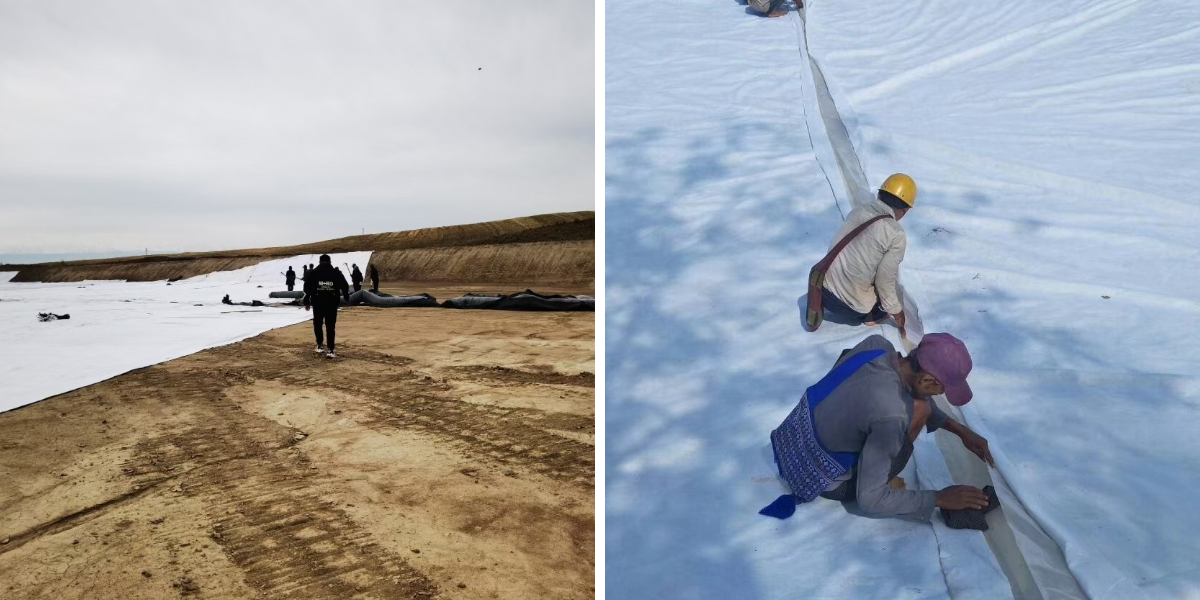

The reservoir used to be drained and the subgrade cleared of vegetation and massive rocks. A 10 cm sand cushion was once positioned to create a clean surface. The geotextile cushion used to be rolled out first, observed by means of the HDPE Composite Geomembrane panels. All subject seams have been made the use of dual-track thermal fusion welders. Every seam underwent non-destructive air stress checking out and vacuum field testing, plus unfavourable samples have been reduce each five hundred meters for laboratory peel and shear testing—standards borrowed from Landfill Composite Geomembrane quality assurance. The geomembrane was once anchored in a 1/2 m deep perimeter trench backfilled with compacted clay. A 30 cm soil cowl was once positioned over the facet slopes. The complete 4 hectare reservoir was once lined inside seventy two days.

4. Performance Results

After refilling, the reservoir used to be monitored for 18 months. Daily seepage dropped from 3,200 m³ to simply eighty five m³—a discount of 97.3%, exceeding the plan target. The final losses had been nearly completely evaporation. Electrical leak region surveys discovered solely two tiny holes, probably from development debris, which had been shortly repaired. The Composite Geo-membrane showed no cracking or seam separation in spite of thermal cycling. Water fantastic increased dramatically: turbidity fell from over 50 NTU to under two NTU, and the HDPE Composite Geomembrane prevented salt intrusion from underlying saline soils. These effects reveal that a exact set up composite liner can reap near-zero seepage for decades.

5. Lessons from Landfill Applications

Why borrow from landfill technology? Landfill Composite Geomembrane systems have been sophisticated over a long time to include aggressive leachate underneath excessive loads. Key training encompass the significance of a geotextile cushion to stop puncture, the use of electrical leak region to confirm integrity after backfilling, and rigorous seam trying out protocols. For reservoir liners, these identical ideas apply. However, a reservoir liner need to additionally withstand long-term UV publicity if left uncovered, whereas landfill liners are constantly covered. The Green Valley mission tailored landfill exceptional practices whilst specifying UV-stabilized HDPE and a shielding soil cover on slopes. The resulting Composite Geo-membrane system combines the excellent of each worlds: the durability of landfill-grade substances and the hydraulic overall performance required for easy water storage.

6. Economic Benefits

The whole mounted price of the HDPE Composite Geomembrane system was 235,000perhectare,or235,000 per hectare,or940,000 for the 4 hectare reservoir. Annual water financial savings (reduced seepage plus averted pumping) had been valued at 100,500.The simple payback period was 3.1 years.Over a 25−year design life,net saving sexceed 100,500. Additionally, the dependable water grant allowed neighborhood farmers to change to higher-value crops, growing annual income through $120,000. As water will become scarcer and extra expensive, these financial returns will solely grow.

7. Best Practices

For any reservoir lining project, use a Composite Geo-membrane with a nonwoven geotextile cushion. Specify an HDPE Composite Geomembrane for uncovered or semi-exposed conditions. Adopt landfill-grade seam trying out (100% nondestructive plus damaging samples). Install a perimeter anchor trench with compacted backfill. Finally, behavior an electrical leak vicinity survey after set up to realize hidden damage. Following these pointers will supply reliable, long-term water conservation.

Conclusion

This case find out about demonstrates that cutting-edge composite geomembranes are a high-performance, reasonably priced answer for reservoir water conservation. The Composite Geo-membrane, specifically when designed as an HDPE Composite Geomembrane with geotextile protection, can decrease seepage through over 97% and keep integrity for decades. Even concepts from Landfill Composite Geomembrane systems—such as rigorous seam checking out and leak detection—are immediately transferable. As local weather exchange intensifies drought risks, investing in composite geomembrane liners is now not simply clever engineering; it is imperative for water security.
