Geocell vs. Geogrid: Understanding the Differences in Reinforcement Technology

When engineers face difficult soil conditions, slope steadiness issues, or heavy site visitors loads, two geosynthetic options regularly come to mind: geocells and geogrids. While each are used for floor reinforcement, they function on essentially exclusive mechanical ideas and are appropriate for wonderful applications. Choosing the incorrect science can lead to assignment delays, value overruns, or even structural failure. This article compares geocells and geogrids in detail, supporting you apprehend when to specify every system. Along the way, we will discover key purposes such as geocell slope protection, geoweb geocell systems, and geocell for street development to illustrate real-world differences.

1. Fundamental Working Mechanisms

The important distinction between geocells and geogrids lies in how they have interaction with soil and loads. A geogrid is a planar, open-grid shape made from polymers such as polypropylene or polyester. It reinforces soil specially via mechanical interlock and friction. When soil or mixture fills the apertures of the geogrid, the grid confines the particles, stopping lateral motion and distributing tensile forces throughout a wider area. Geogrids are normally laid in horizontal layers and are very fine at resisting tensile stresses – for example, in keeping wall backfill or pavement base courses.

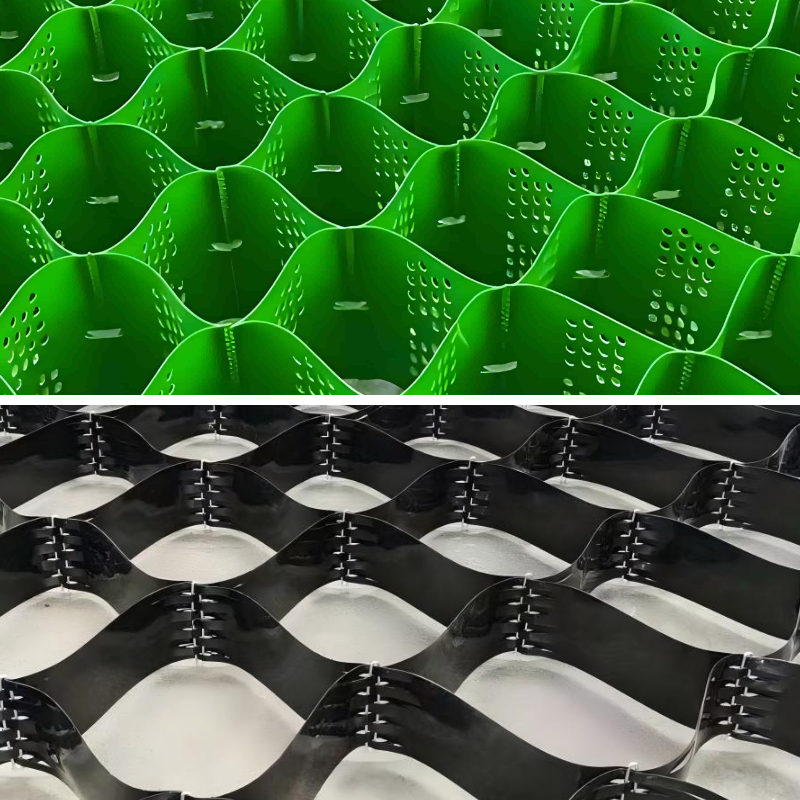

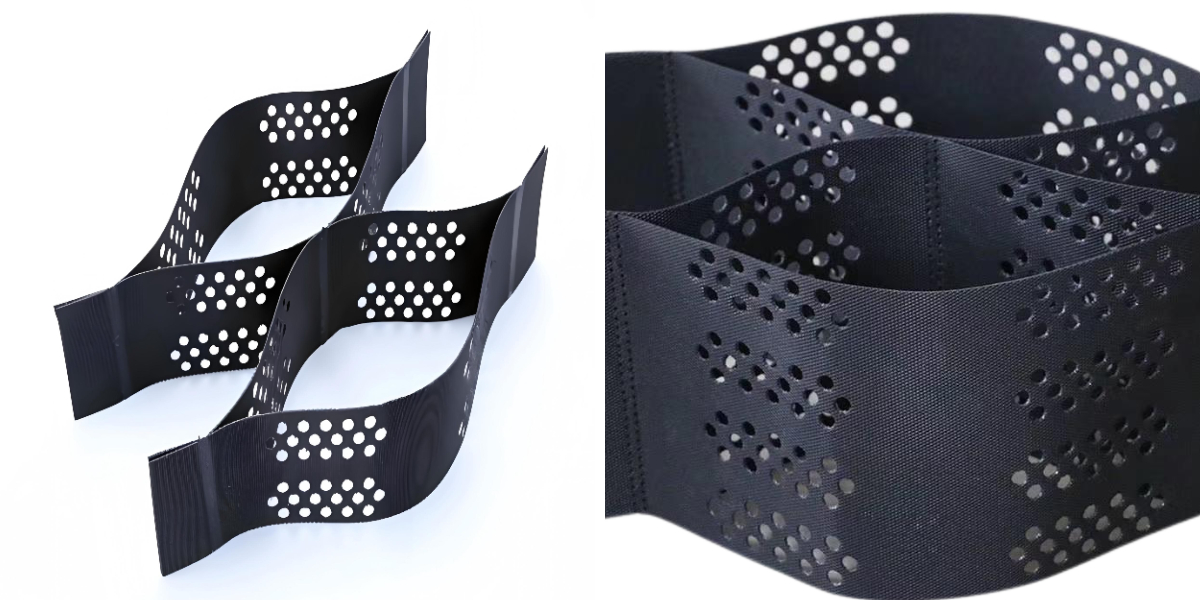

In contrast, a geocell is a three-dimensional, honeycomb-like structure. When accelerated on site, the geoweb geocell (a frequent time period for these mobile confinement systems) varieties interconnected cells that are crammed with soil, sand, gravel, or concrete. The mobile partitions grant all-around confinement, developing a semi-rigid mattress that resists each vertical and lateral forces. This 3-dimensional confinement is basically distinctive from the planar reinforcement of geogrids. For example, when used for geocell slope protection, the phone partitions forestall floor erosion by using maintaining infill cloth in vicinity even on steep inclines, whilst additionally including tensile reinforcement via the cell network.

Understanding this mechanical big difference is critical. Geogrids excel at anxiety resistance in one or two directions. Geocells excel at confinement, load distribution, and erosion control. Neither is universally higher – the desire relies upon completely on the web page stipulations and overall performance requirements.

2. Slope and Erosion Control Applications

On slopes, the distinction between the two applied sciences turns into right away visible. For long, uniform slopes where the important problem is tensile reinforcement of the soil mass, geogrids are frequently used as horizontal reinforcing layers inside engineered fill slopes. They work via tying lower back the face of the slope and resisting interior sliding forces.

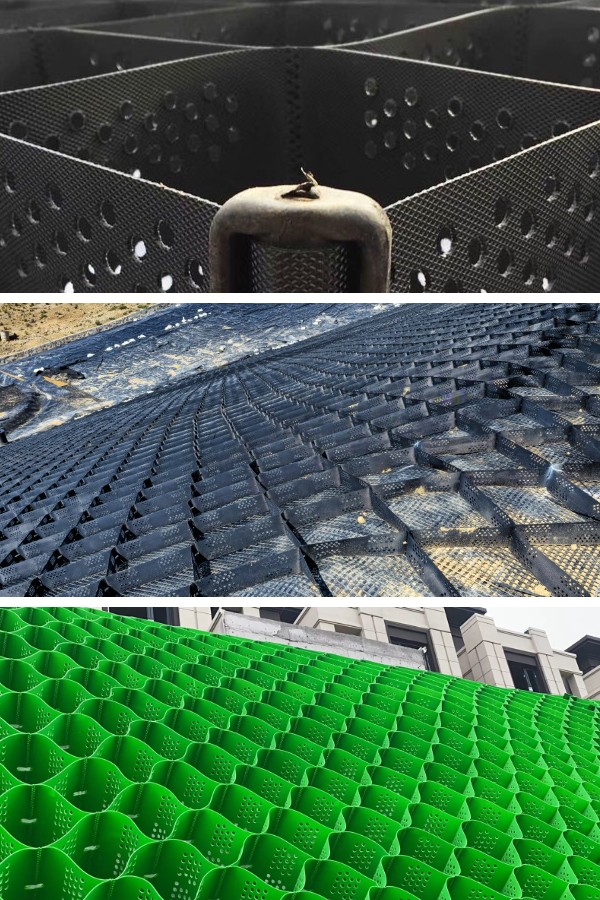

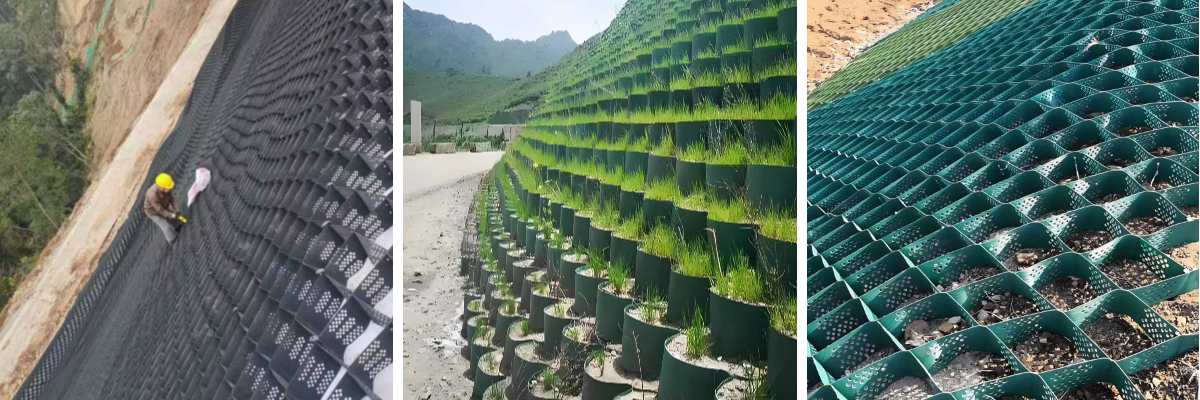

However, when floor erosion, shallow slope failures, or steep attitude balance are the most important challenges, geocell slope safety provides finest performance. The 3-dimensional cells confine topsoil or vegetative increase medium, stopping washout at some stage in heavy rainfall. Because the geoweb geocell shape is bendy but laterally stiff, it can conform to irregular slope contours whilst retaining confinement. This makes geocell slope safety perfect for channel linings, embankments, dam faces, and landfill cowl slopes the place erosion is a regular threat.

Geogrids on my own can't grant floor erosion safety due to the fact they have no phone partitions to maintain infill in place. In many slope projects, engineers mix each technologies: geogrids for deep-seated reinforcement of the slope body, and geocell slope safety as a surficial armor layer. The geoweb geocell used in such purposes is usually made from high-density polyethylene (HDPE) or polypropylene, with perforated or stable partitions relying on drainage needs. When specifying geocell slope protection, elements such as mobile height, wall thickness, and infill cloth ought to be matched to the slope attitude and expected hydraulic shear stresses.

3. Road Construction and Pavement Reinforcement

Another place the place the distinction between geocells and geogrids is stark is avenue construction. Both merchandise are used to enhance subgrade bearing capacity, limit rutting, and lengthen pavement life. However, they attain these advantages via distinctive mechanisms.

Geogrids are broadly used as base reinforcement in bendy pavements. Placed at the interface between vulnerable subgrade and granular base course, a geogrid affords lateral restraint to combination particles, distributes wheel hundreds greater evenly, and reduces the required base thickness. This works nicely for roads on exceedingly uniform, fairly vulnerable soils.

Geocell for avenue building takes a exclusive approach. The mobile confinement machine creates a stiffened mattress that bridges over tender spots and prevents punch-through failure. When the geoweb geocell is crammed with compacted aggregate, the phone partitions generate passive resistance and confinement pressure, drastically growing the modulus of the infilled layer. This is specifically treasured for unpaved roads, haul roads, brief get admission to roads, and pavements constructed on very smooth subgrades (e.g., peat, clay, or moist silt). In many cases, geocell for avenue development approves contractors to use lower-quality, domestically accessible infill substances whilst nevertheless attaining goal performance. The geocell additionally reduces lateral spreading of base aggregate, which is a frequent failure mode on vulnerable soils.

For paved roads, geogrids are greater frequent in the base path the place tensile forces dominate. But for unpaved, heavy-haul, or emergency get right of entry to roads, geocell for street development regularly outperforms geogrids due to the fact it controls each vertical contract and lateral displacement simultaneously. Project price comparisons exhibit that whilst the geoweb geocell fabric may also have a greater preliminary unit price than geogrid, the discount in required fill thickness and prolonged upkeep intervals can end result in decrease life-cycle costs.

4. Load Distribution and Bearing Capacity Improvement

Load distribution conduct is every other key differentiator. Geogrids enhance bearing potential mainly via tensioned membrane effect. When a load is applied, the geogrid deflects, growing tensile forces that are transferred to the surrounding soil. This works nicely for uniformly disbursed masses and for reinforcing embankments over gentle ground.

Geocells, by means of contrast, create a semi-rigid slab effect. The restricted infill behaves like a cohesive mass with improved interior friction perspective and obvious cohesion. For factor masses such as truck tires or development equipment, geocell for avenue building spreads the vertical stress over a lots large footprint in contrast to unreinforced or geogrid-reinforced sections. Studies have proven that a right designed geoweb geocell layer can decrease vertical stress on subgrade by using 50% or more, which is frequently optimal to a single layer of geogrid.

This slab impact is additionally really useful for railroad tune ballast and industrial yard applications. Where geogrids are inclined to creep beneath sustained loading, the mobile confinement of a geocell gives long-term dimensional stability. For geocell slope safety involving heavy armor rock or concrete infill, the geocell prevents rolling or sliding of person stones, in fact developing a bendy concrete mattress.

5. Installation and Constructability

Installation practices range significantly. Geogrids are lightweight, roll out easily, and require minimal connection hardware. They can be reduce with hand equipment and are positioned without delay on organized subgrade, with overlaps secured through staples or pins. This velocity of set up makes geogrids eye-catching for large-area tasks like toll road embankment reinforcement.

Installing a geoweb geocell machine requires greater steps. The collapsed geocell panels are delivered folded, then elevated on web site like an accordion. Expansion ought to be executed cautiously to obtain the specific phone dimensions. The increased geocell is anchored to the floor the usage of stakes or battens, then infill cloth is positioned and compacted. For geocell slope protection, deployment regularly requires working from the pinnacle of the slope downward, with cautious tensioning to preserve cells open at some point of filling. On slopes steeper than 30 degrees, brief brackets or shotcrete may additionally be wished to maintain the geoweb geocell earlier than infill is placed.

For geocell for street construction, set up is extra straightforward: the accelerated geocell is positioned on organized subgrade, infilled with mixture the use of excavators or wheel loaders, and then compacted with rollers. The method is slower than geogrid placement, however the overall performance advantages on susceptible subgrades frequently justify the more labor. One vital note: geocell set up requires correct high-quality manage to make certain cells are utterly multiplied and correct anchored. Geogrids are extra forgiving of minor set up errors.

6. Durability, Maintenance, and Design Life

Both geocells and geogrids are manufactured from polymers that withstand chemical attack, UV radiation (if blanketed or as it should be stabilized), and organic degradation. However, the failure modes differ. Geogrids are inclined to set up injury from sharp aggregate, as nicely as creep underneath sustained tensile loads. For everlasting structures, first-rate geogrids with low creep practicable are specified.

Geocells are much less prone to creep due to the fact the essential load direction is via the constrained infill alternatively than the polymer walls. The partitions themselves trip surprisingly low tensile stresses once the cells are crammed and compacted. For geocell slope protection, the polymer can be uncovered to sunlight; consequently UV-stabilized HDPE or polypropylene is essential. Many geoweb geocell merchandise consist of perforations to enable water drainage and root growth, which additionally reduces hydrostatic stress at the back of the slope armor.

Maintenance necessities additionally differ. A geogrid-reinforced slope or avenue that starts to exhibit misery frequently requires excavation and substitute of the geogrid layer – an steeply-priced intervention. A geocell for avenue development machine that develops a localized melancholy can once in a while be repaired by using including infill and compacting, as the geoweb geocell cells include the damage. For geocell slope protection, remoted mobilephone harm from vandalism or particles have an impact on can be repaired through cleansing the mobile and re-compacting infill. Geogrid harm is tougher to patch effectively.

7. Cost-Effectiveness and When to Choose Each

Finally, price assessment relies upon on task objectives. For horizontal reinforcement in holding walls, steep engineered slopes, or base reinforcement beneath paved roads on fair-to-good subgrades, geogrids are normally extra cost-effective. They require much less cloth volume, quicker installation, and decrease delivery fees due to their planar, light-weight nature.

For functions requiring third-dimensional confinement, erosion manage on slopes, unpaved roads on very gentle soils, channel protection, or load aid over localized susceptible zones, geocell for street building and geocell slope safety are superior. The geoweb geocell may additionally have a greater upfront fabric cost, however it reduces mixture thickness through 30-50% in contrast to unreinforced sections, and can prolong carrier lifestyles with the aid of years. In many mining and infrastructure projects, the whole established fee of a geocell answer is aggressive when all layers and preservation are accounted for.

As a rule of thumb: if the fundamental failure mode is anxiety (pulling apart), specify geogrid. If the important failure modes are lateral spreading, floor erosion, tender subgrade punch-through, or slope washout, specify a geoweb geocell. For indispensable projects, think about combining each applied sciences – geogrids for deep reinforcement and geocell slope safety for the floor – to attain ultimate performance.

Conclusion

Geocells and geogrids are each effective floor reinforcement technologies, however they are now not interchangeable. Geogrids grant planar tensile reinforcement and are best for maintaining walls, paved street base courses, and embankments over modestly tender soils. Geocells grant three-d confinement and are the desired answer for geocell slope protection, unpaved roads on very vulnerable subgrades, erosion control, and channel linings. The geoweb geocell system’s capacity to create a stiff, constrained mattress makes it specially precious for geocell for avenue development in mining, forestry, and transient get right of entry to applications. By appreciation the mechanical differences, set up requirements, and failure modes described above, you can confidently choose the proper technological know-how for your subsequent challenge – or figure out when to use each in mixture for most reinforcement. Always remember on site-specific testing, engineer plan recommendations, and licensed fabric specs to acquire safe, durable, and low in cost floor stabilization.
