Concrete Canvas
1.Rapid Installation:
Simply water after laying to activate hardening, achieving C20 strength in 24 hours while saving 90% of construction time.
2.Superior Flexibility:
Conforms perfectly to uneven surfaces and complex shapes like pipe wrapping and contoured terrain.
3.Exceptional Durability:
UV-resistant, freeze-thaw resistant, and chemically inert with a service life exceeding 50 years.
4.Eco-Friendly Solution:
Minimizes concrete waste and reduces carbon footprint compared to conventional methods.
Product Introduction:

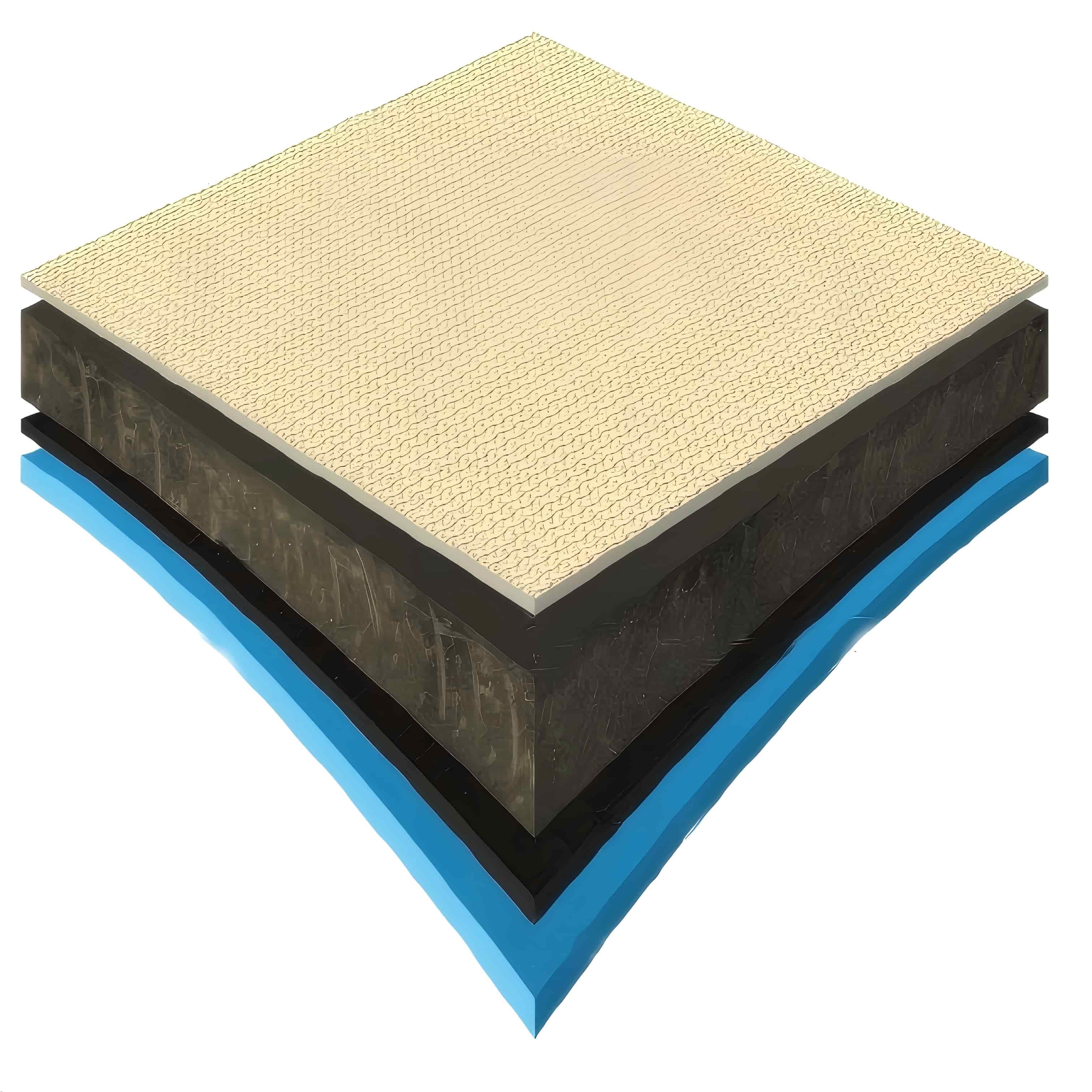

Concrete Canvas is a revolutionary flexible composite material that combines cement with fiber weaving technology to form a "ready-to-use" flexible concrete fabric. It only needs to be watered for curing to quickly form a high-strength and durable concrete layer. It is suitable for rapid construction in military, infrastructure, environmental protection and other fields.

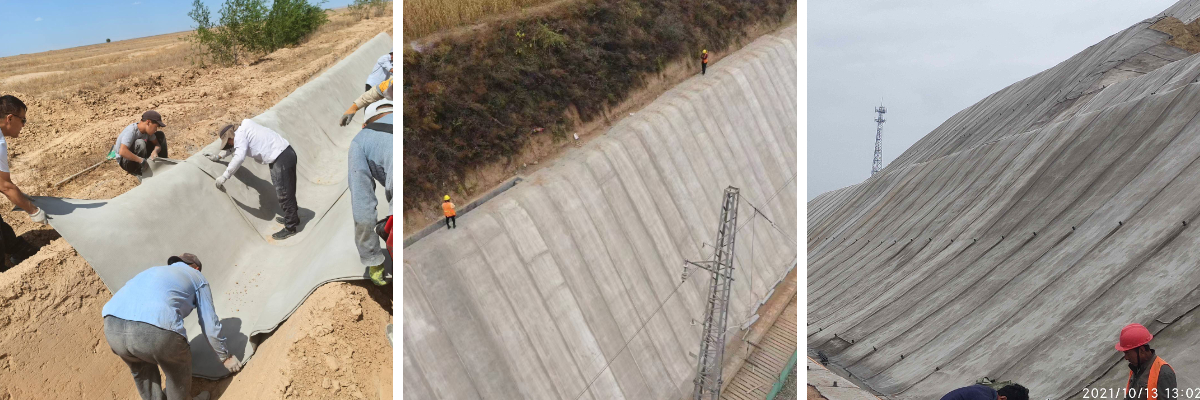

Easy Installation:Supplied in rolls with lightweight design, it can be effortlessly transported and installed by a single person without heavy machinery, significantly reducing logistics costs and complexity.
Superior Waterproofing:Featuring a waterproof backing layer, it not only provides complete water resistance but also enhances chemical corrosion resistance, effectively preventing water penetration in waterproofing applications.

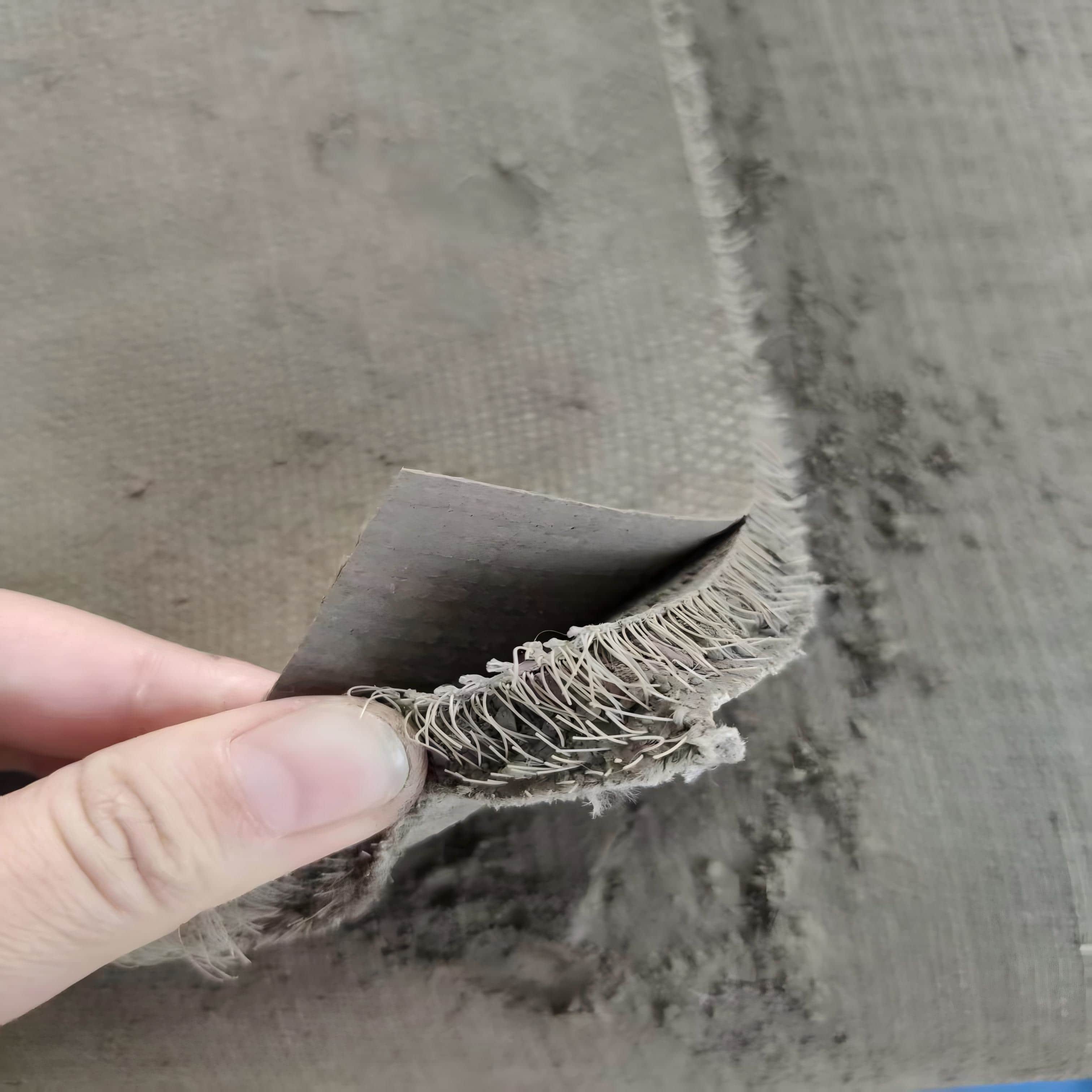

Flexible Application:With excellent drapeability, it conforms tightly to irregular surfaces and complex geometries, even forming double-curved shapes. Pre-curing, it can be easily cut or tailored with common hand tools to meet diverse project requirements.
Product Parameters:
surveillance project | DYSNT-A1 | DYSNT-B1 | DYSNT-C1 | Test basis | remarks |
length (M) | 10--50 | / | |||
width (M) | 1--3 | / | |||
thickness (mm) | 6mm/8mm/9mm/10mm/12mm/15mm/20mm | / | |||
Compressive strength (MPa) | ≧50 | ≧70 | ≧85 | GB/T17671-2021 | |
Flexural strength (MPa) | ≧13 | ≧18 | ≧22 | GB/T 7019-2014 | |
Flexural strength retention rate after freeze-thaw cycles (%) | ≧85% | ≧90% | ≧90% | GB/T 50082-2009 | The freezing and thawing cycle from 50 to 200 times changed the indexes accordingly |
Water quality requirements for hydration | running water | Tap water, sea water | Tap water, seawater, sewage | / | |
Construction temperature conditions | · Construction above 0℃ | · Construction above-5℃ | · Construction above-5℃ | / | |
fire protecting performance | B1 | GB 8624-2012 | |||
Harmful substance leaching test items | Limitation index (mg/L) | GB 5085.3-2007 | |||
Copper (total copper) (mg/L) | ≤100 | ||||
Zinc (total zinc) (mg/L) | ≤100 | ||||
Cadmium (total) (mg/L) | ≤1 | ||||
Lead (total lead) (mg/L) | ≤5 | ||||
Total chromium (mg/L) | ≤15 | ||||
Nickel (total nickel) | ≤5 | ||||
Arsenic (total) | ≤5 | ||||

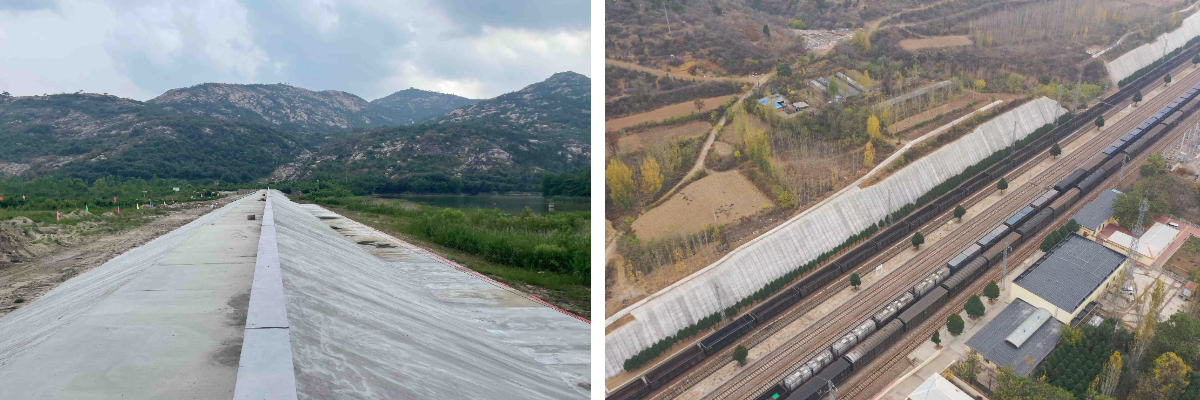

Product Applications:
1.Water Conservancy Projects: Channel lining, dam slope protection, drainage ditch seepage control.
2.Transportation Infrastructure: Temporary road reinforcement, tunnel lining, railway subgrade protection.
3.Military/Emergency Applications: Rapid blast wall construction, trench reinforcement, post-disaster temporary facilities (e.g., shelter flooring).
4.Mining Rehabilitation: Tailings pond coverage, slope stabilization, dust suppression.
5.Municipal/Landscaping: Artificial lake waterproofing, tree pit protection, ecological slope greening.
Choosing concrete canvas means not only opting for a high-performance building material but also embracing an efficient, environmentally friendly, and cost-effective construction solution. Whether it's for large-scale engineering projects or small home improvement renovations, concrete canvas can meet your diverse needs, offering you a brand-new construction experience and reliable quality assurance for your projects.
