Revetment Mesh
1.Stabilizes slopes & stops erosion：Holds soil tightly to prevent landslides and loss from rain or water flow.
2.Helps plants grow fast：Porous design lets sunlight, water and air reach seeds, so vegetation takes root quickly.
3.Tough & eco-friendly：Made from durable, corrosion-resistant materials that last outdoors, and are non-toxic to the environment.
4.Easy to install & saves money：Lightweight and flexible for quick laying on any slope, cutting down construction time and costs.
Product Introduction:
Basic Properties
Revetment Mesh is a flexible geosynthetic material, usually made of corrosion-resistant HDPE, PP or galvanized steel wire. It features a porous structure with customizable mesh size and thickness, and is lightweight for easy transportation and cutting. It is also weather-resistant, able to withstand long-term exposure to sunlight, rain and temperature changes.
Core Functions
Slope stabilization & erosion control: It locks soil particles in place to resist scouring from water flow and wind, preventing slope collapse and soil loss.
Vegetation promotion: Its porous design allows sunlight, water and air to penetrate, creating a favorable environment for seed germination and root growth.
Ecological protection: After integrating with vegetation, it forms a green composite protection system, avoiding environmental damage caused by traditional rigid engineering.
Main Characteristics
Flexibility: Adapts to uneven terrain and slope deformation without cracking.
Cost-effectiveness: Simple installation requires no heavy equipment, reducing construction and maintenance costs.
Durability: Corrosion-resistant materials ensure long service life in harsh outdoor conditions.
Environmental friendliness: Non-toxic, pollution-free, and compatible with natural ecosystems.
Product Parameters:
Item | EM2 | EM3 | EM4 | EM5 |
Unit mass per area / (g/m2) | ≥220 | ≥260 | ≥350 | ≥430 |
thickness /mm | ≥10 | ≥12 | ≥14 | ≥16 |
Width deviation /m | ±1.0 | |||
length variation /m | ±1 | |||
Longitudinal tensile strength/(KN/m) | ≥0. 80 | ≥1.4 | ≥2. 0 | ≥3. 2 |
Tensile strength in the transverse direction / (KN/m) | ≥0. 80 | ≥1.4 | ≥2. 0 | ≥3. 2 |
Product Applications:

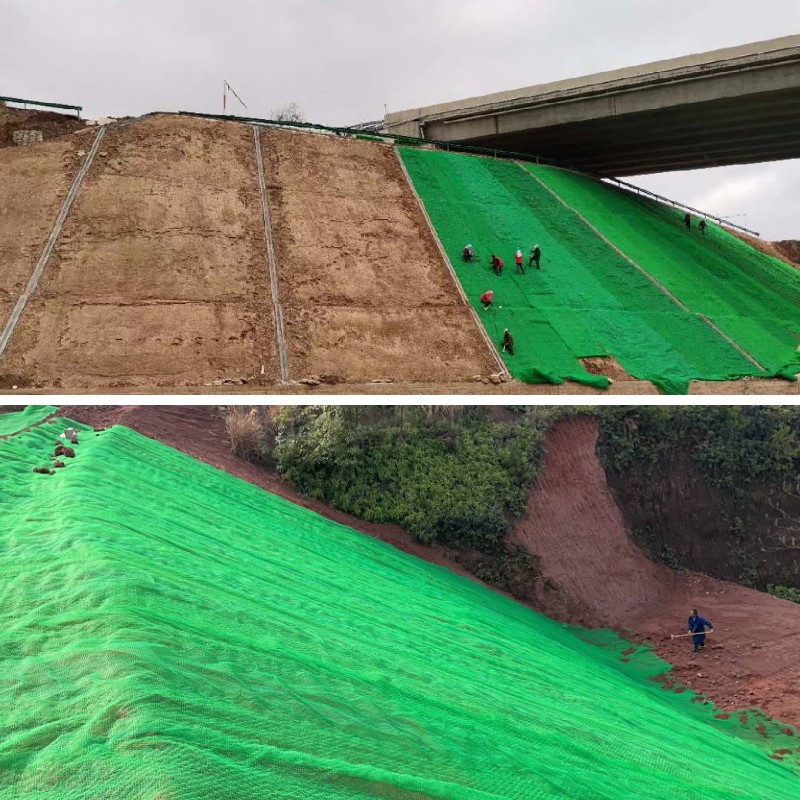

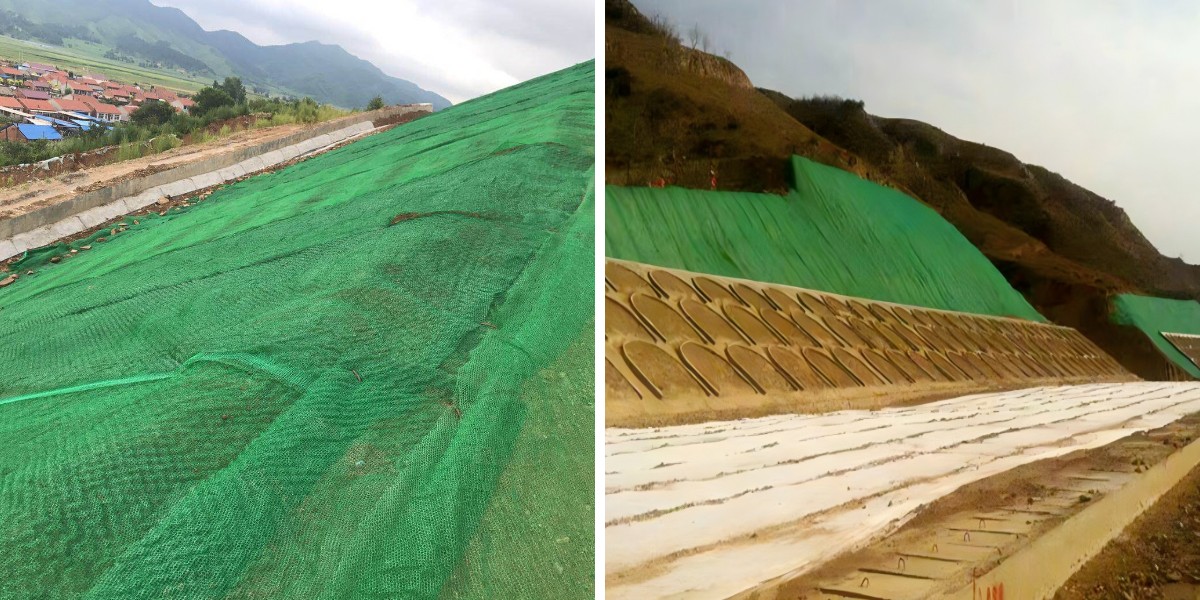

1.Highway & Railway Slope Protection
Layed on slopes alongside highways, railways, and interchanges to resist soil erosion caused by rain runoff and wind, prevent slope collapse, and cooperate with vegetation planting to form green protective barriers, ensuring traffic safety.
2.River & Reservoir Bank Reinforcement
Applied to riverbanks, embankments, reservoir slopes, and coastal revetments. It can withstand the scouring of water flow, stabilize the soil structure, and promote the growth of aquatic plants, achieving ecological bank protection instead of traditional rigid structures like concrete.
3.Mining Area Ecological Restoration
Covered on the surface of waste rock piles and mining subsidence areas to fix the loose soil, provide a stable growth base for plants, and accelerate the vegetation recovery of damaged mining areas, reducing geological disasters such as debris flow.
4.Urban Greening & Landscape Engineering
Used in urban slope greening, rooftop greening, and landscape slope projects. It helps fix the soil matrix, supports the growth of turf and shrubs, and creates beautiful and ecological urban green spaces.
5.Farmland & Water Conservancy Construction
Applied to the slopes of farmland terraces, irrigation canals, and small reservoirs to prevent soil loss, maintain the integrity of water conservancy facilities, and protect agricultural production conditions.
Summary
In essence, revetment mesh serves as a cost-effective and eco-friendly solution that bridges engineering reinforcement and ecological protection. It is adaptable to diverse scenarios ranging from transportation infrastructure and water conservancy projects to urban greening and mining restoration. Unlike traditional rigid protection methods, it combines slope stabilization and vegetation growth, achieving long-term sustainable protection while preserving the natural environment, making it an ideal choice for modern green engineering projects.
