Repairing Damaged HDPE Liners: Techniques and Best Practices

HDPE geomembrane is broadly identified as a durable, impermeable answer for containment functions such as landfills, water reservoirs, wastewater cure facilities, and industrial storage sites. However, even with suitable geomembrane set up and maintenance, HDPE liners can maintain harm over time due to environmental stress, bodily impact, or wear. Prompt and superb restore is fundamental to maintaining the liner’s integrity, stopping leaks, and heading off luxurious environmental damage. This information explores established methods and fine practices for repairing broken HDPE liners, with a focal point on optimizing the overall performance of hdpe geomembrane and geo membrane sheet substances for the duration of the restore process.

Understanding Common Causes of HDPE Geomembrane Damage

Before diving into restore techniques, it’s necessary to discover the root reasons of HDPE geomembrane damage, as this informs the most excellent restore approach. Common problems consist of bodily punctures from sharp objects (such as rocks, building debris, or equipment), UV degradation from extended solar exposure, chemical injury from harsh resources in the contained material, and tears from floor motion or flawed geomembrane installation. Additionally, seams—critical joints in any geo membrane sheet system—can fail due to bad bonding, thermal stress, or insufficient preparation. By grasp these causes, restore groups can tackle now not simply the seen harm however additionally take steps to stop future issues, making sure long-term reliability of the HDPE liner.

Pre-Repair Steps: Inspection and Preparation

Successful HDPE liner restore starts offevolved with thorough inspection and applicable preparation. Start through conducting a complete evaluation of the hdpe geomembrane to detect all damage—this may additionally encompass visible inspections, leak detection tests, or thermal imaging for hard-to-find issues. Once harm is identified, mark the affected areas truely to make certain no spots are missed. Next, put together the restore website online by using cleansing the place round the damage: do away with dirt, debris, oil, or moisture from the HDPE surface, as contaminants can compromise the bond between the restore fabric and the current geo membrane sheet. Ensure the floor is dry and smooth, and trim any ragged edges round tears or punctures to create a clean, steady vicinity for repair. Proper education is as quintessential as the restore itself, as it ensures the restore lasts and keeps the liner’s impermeable properties.

Key Repair Techniques for Damaged HDPE Geomembrane

1. Heat Fusion Welding: Ideal for Seam Repairs and Large Tears

Heat fusion welding is the most dependable restore approach for hdpe geomembrane, specially for seam screw ups and giant tears. This technique makes use of warmness to soften the broken place and a well matched geo membrane sheet patch, growing a permanent, homogeneous bond that suits the energy of the unique liner. There are two fundamental warmness fusion methods: warm wedge welding and extrusion welding. Hot wedge welding is appropriate for flat seams and giant patches, the usage of a heated wedge to soften the HDPE surfaces earlier than compressing them together. Extrusion welding is perfect for irregular shapes, corners, or small repairs, as it makes use of a welding gun to extrude molten HDPE into the broken area. Both methods require expert operators and acceptable tools calibration to make certain steady warmth and pressure—factors that are simply as indispensable as for the duration of preliminary geomembrane installation.

2. Chemical Bonding: For Small Punctures and Minor Damage

Chemical bonding, or adhesive repair, is a realistic answer for small punctures, pinholes, and minor floor harm in hdpe geomembrane. This approach includes making use of a specialised HDPE-compatible adhesive to a geo membrane sheet patch and bonding it to the broken area. To make certain success, choose an adhesive designed particularly for HDPE, as typical adhesives will now not structure a strong, impermeable bond. Thoroughly smooth and dry each the patch and the broken floor earlier than application, and practice even stress to the patch till the adhesive treatment options completely. While chemical bonding is rapid and handy for small repairs, it is no longer advocated for giant tears or high-stress areas, as it may additionally no longer supply the identical power as warmness fusion welding.

3. Mechanical Fastening: For Temporary or Emergency Repairs

Mechanical fastening is a transient restore approach used in emergency conditions or when warmth fusion or chemical bonding is now not without delay feasible. This approach entails securing a geo membrane sheet patch over the broken region the use of HDPE-compatible fasteners, such as rivets or screws with washers. While mechanical fastening can cease leaks temporarily, it is no longer a everlasting solution, as the fasteners create possible leak points. It have to solely be used as a momentary restoration till a everlasting restore (such as warmth fusion welding) can be performed. When the use of mechanical fastening, make sure the patch is large than the broken region to distribute strain evenly, and choose fasteners that will now not corrode or harm the hdpe geomembrane further.

Best Practices for Ensuring Long-Lasting HDPE Liner Repairs

To maximize the effectiveness and durability of HDPE liner repairs, observe these quality practices: First, use restore substances that are well matched with the present hdpe geomembrane—this consists of matching the HDPE grade, thickness, and method of the authentic geo membrane sheet. Using incompatible substances can lead to bad bonding, untimely failure, or chemical reactions that injury the liner. Second, make sure repairs are carried out with the aid of trained, skilled operators, specifically for warmth fusion welding, which requires specialised skills. Third, behavior post-repair trying out to confirm the repair’s integrity—this may also encompass vacuum testing, air strain testing, or leak detection surveys. Finally, tackle the root purpose of the harm to stop recurrence: for example, if injury used to be prompted through UV degradation, think about including a UV protecting coating to the hdpe geomembrane; if punctures are common, enhance web page training or add a shielding layer over the liner.

Repair Considerations for Specific HDPE Liner Applications

HDPE liner repairs might also require application-specific changes to make sure finest performance. For example, in wastewater therapy facilities, repairs need to be resistant to chemical exposure, so pick warmth fusion welding with chemical-resistant HDPE patches. In landfills, where liners are challenge to heavy hundreds and workable punctures, repairs ought to be bolstered with extra geo membrane sheet layers or defensive padding. In water reservoirs, repairs ought to be totally impermeable to forestall water loss, so post-repair leak checking out is in particular critical. Additionally, for liners established in excessive climates (hot or cold), reflect onconsideration on thermal growth and contraction when choosing restore techniques—heat fusion welding have to be carried out inside endorsed temperature degrees to make sure desirable bonding. By tailoring repairs to the application, you can make certain the hdpe geomembrane keeps its overall performance in difficult conditions.

The Role of Proper Geomembrane Installation in Reducing Repair Needs

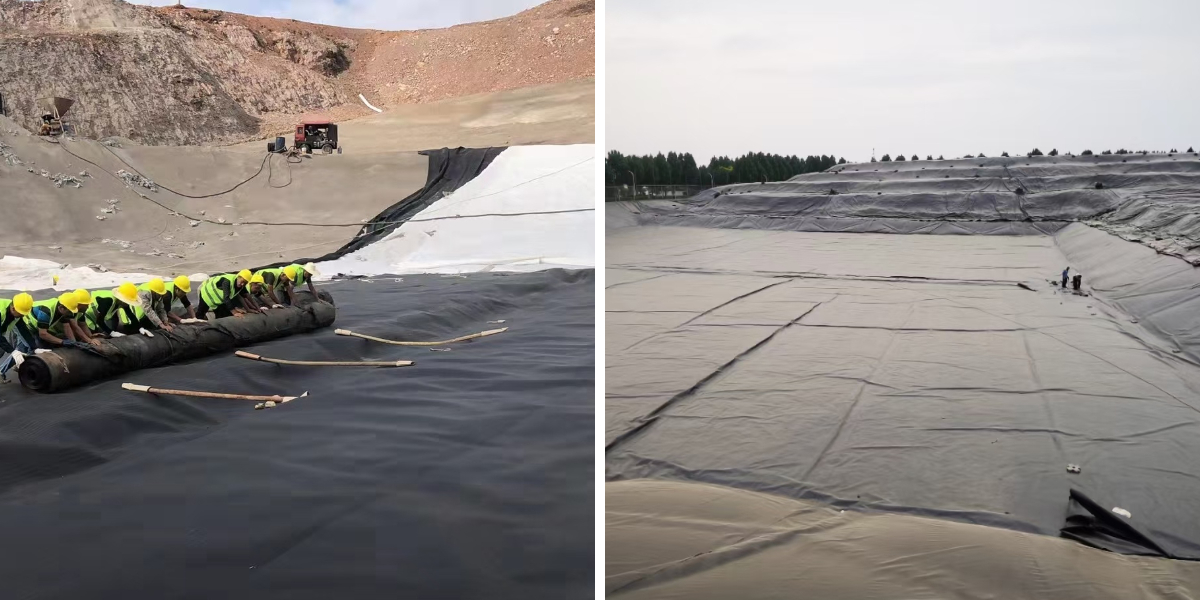

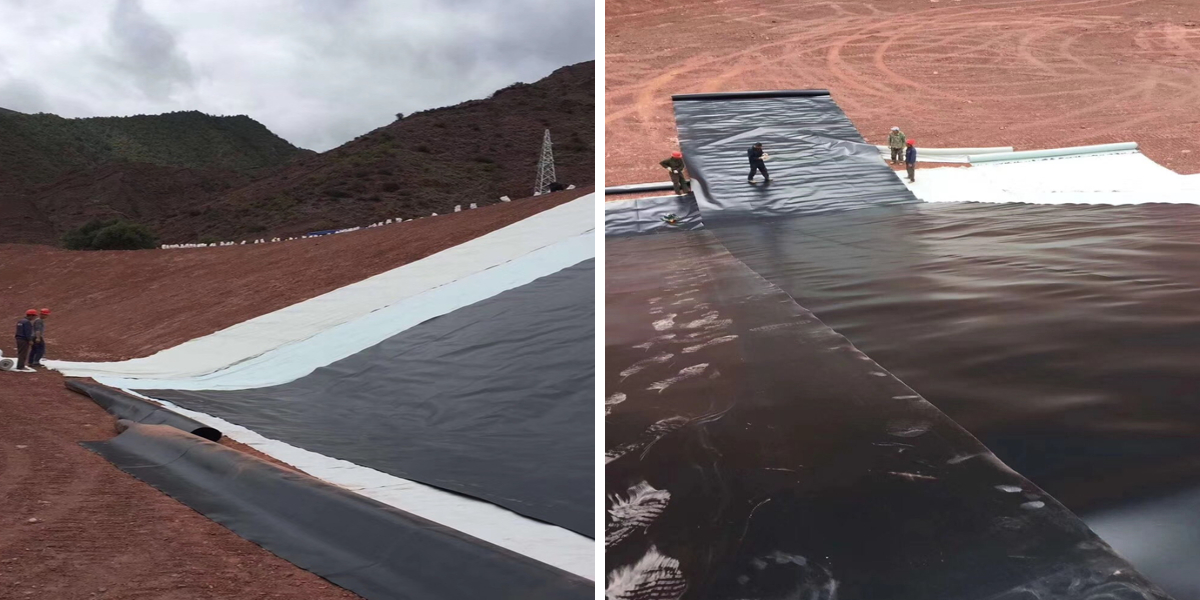

While fantastic repairs are essential, stopping injury in the first location is even better. Proper geomembrane set up is key to minimizing the want for future repairs. This consists of thorough website online coaching (removing sharp objects, grading the surface), suitable seam instruction and welding, and cautious managing of the geo membrane sheet in the course of set up to keep away from tears or punctures. Additionally, following producer pointers for HDPE geomembrane installation—such as endorsed overlap for seams, welding parameters, and backfilling practices—ensures the liner is mounted to stand up to the meant conditions. Regular preservation and inspections after set up additionally assist pick out minor troubles earlier than they end up main damage, decreasing restore expenses and extending the liner’s lifespan.

Conclusion: Prioritizing Timely, High-Quality HDPE Liner Repairs

Repairing broken HDPE liners requires a systematic approach, combining desirable inspection, preparation, and the proper restore approach for the harm kind and application. Whether the use of warmness fusion welding for everlasting repairs, chemical bonding for small issues, or mechanical fastening for emergencies, the aim is to repair the integrity of the hdpe geomembrane and make sure it continues to grant dependable containment. By following nice practices—using well matched materials, hiring expert operators, and conducting post-repair testing—you can make certain repairs are long-lasting and effective. Additionally, investing in desirable geomembrane set up and normal renovation reduces the want for repairs, defending your funding and the environment. For any HDPE liner restore project, prioritizing pleasant and timeliness will help keep away from pricey leaks and make sure the liner performs as supposed for years to come.
