Canal and Reservoir Lining with HDPE Geomembrane

Introduction: The Critical Role of HDPE Geomembrane in Water Infrastructure

Water is a quintessential useful resource for agriculture, industry, and communities worldwide. Canals and reservoirs serve as essential infrastructure for storing and transporting water, on the other hand seepage losses pose a predominant project to their effectivity and sustainability. This is the area HDPE geomembrane emerges as a game-changing solution. As a high-performance geosynthetic material, HDPE liner creates an impermeable barrier that stops water leakage, protects soil and groundwater, and extends the lifespan of water containment structures. The HDPE liner sheet has develop to be the agency ultra-modern for canal and reservoir lining duties globally, imparting unmatched durability, flexibility, and cost-effectiveness. In this article, we find out why HDPE geomembrane is the pinnacle wish for water infrastructure lining, its key benefits, set up first-rate practices, and long-term general overall performance advantages.

What Is HDPE Geomembrane? Understanding the Core Material

Before diving into applications, it’s critical to define what HDPE geomembrane is and why it stands out from one of a kind lining materials. HDPE stands for High-Density Polyethylene, a thermoplastic polymer viewed for its high-quality strength, chemical resistance, and low permeability. An HDPE liner is a continuous, flexible membrane manufactured via extruding or calendering HDPE resin into skinny sheets of more than a few thicknesses. The HDPE liner sheet is designed specifically for seepage control in water containment systems, with a dense molecular form that prevents water from passing through.

Unlike ordinary elements like concrete, clay, or asphalt, HDPE geomembrane is lightweight however robust. It is produced in large rolls, making it basic to transport and deploy over expansive canal and reservoir surfaces. The material is moreover UV-stabilized, making certain it can face up to prolonged publicity to daytime barring degradation. These inherent properties make the HDPE liner a reliable want for every new improvement and rehabilitation of getting ancient water infrastructure.

Key Benefits of HDPE Liner for Canal and Reservoir Lining

1. Unmatched Seepage Prevention with HDPE Geomembrane

The fundamental motive of any canal or reservoir lining is to stop water seepage, and HDPE geomembrane excels at this task. The material has surprisingly low permeability, developing a watertight barrier that eliminates almost all water loss by the soil. When an HDPE liner sheet is ideal hooked up and sealed, it ensures that water stays inner the canal or reservoir, maximizing water availability for irrigation, eating supply, or industrial use. This diploma of seepage control is a approaches gold standard to compacted clay or concrete, which can make stronger cracks over time and lose their impermeability.

2. Exceptional Durability and Long Service Life

Canals and reservoirs are long-term infrastructure projects, and HDPE liner is developed to last. The cloth resists well-known sorts of degradation, inclusive of chemical corrosion, UV radiation, punctures, and environmental stress cracking. HDPE geomembrane continues its structural integrity even when uncovered to harsh local weather conditions, fluctuating water temperatures, and abrasive soil particles. This sturdiness interprets to a decades-long service life, decreasing the choose for established repairs or replacements. In the prolonged run, the HDPE liner sheet proves to be a comparatively less costly funding for water infrastructure owners.

3. Flexibility to Conform to Complex Terrains

Canals and reservoirs commonly feature irregular shapes, slopes, and uneven subgrades—challenges that rigid lining materials fighting to address. HDPE geomembrane affords extremely good flexibility, allowing it to conform seamlessly to the natural contours of the land. The HDPE liner stretches and adapts barring cracking, even when the underlying soil settles or shifts over time. This flexibility simplifies set up on curved canal walls, steep reservoir slopes, and irregular basin floors, making certain a continuous, wrinkle-free lining that continues its watertight properties.

4. Cost-Effectiveness for Large-Scale Projects

Budget issues are essential for canal and reservoir projects, and HDPE liner sheet materials high-quality fee economic financial savings in distinction to desire materials. First, the material is lightweight, reducing transportation and managing costs. Second, set up is faster and requires a whole lot much less labor than concrete or clay lining, as large rolls of HDPE geomembrane can be unrolled and sealed efficiently. Third, the prolonged company existence minimizes renovation and alternative charges over time. When evaluating whole project costs, such as installation, maintenance, and lifespan, HDPE liner emerges as the most less expensive choice for every small irrigation canals and large-scale reservoir systems.

5. Environmental Protection and Sustainability

Beyond water conservation, HDPE liner helps environmental sustainability by using skill of stopping groundwater contamination. Without a ideal liner, water from canals and reservoirs can carry sediment, fertilizers, or specific air pollution into the soil and groundwater. The impermeable HDPE geomembrane acts as a barrier, containing water and any possible contaminants inner the structure. Additionally, HDPE is a recyclable material, aligning with inexperienced infrastructure goals. Choosing an HDPE liner sheet for canal and reservoir lining no longer totally protects water sources alternatively moreover minimizes the environmental have an effect on of water infrastructure projects.

Why HDPE Liner Sheet Outperforms Traditional Lining Materials

To definitely admire the charge of HDPE geomembrane, it’s integral to consider it to trendy lining options. Compacted clay liners are much less pricey then again require thick layers, are inclined to cracking when dry, and have increased permeability than HDPE. Concrete liners are lengthy lasting then again excessive priced to install, prone to cracking below temperature adjustments or soil settlement, and challenging to repair. Asphalt liners are flexible then again degrade quickly beneath UV publicity and have restrained seepage resistance.

In contrast, the HDPE liner sheet combines the pleasant attributes of all materials: it is flexible like asphalt, lengthy lasting like concrete, and impermeable like fantastic clay—without their drawbacks. HDPE liner resists cracking, UV degradation, and chemical damage, at the same time as remaining lightweight and handy to install. For canal and reservoir projects, HDPE geomembrane clearly outperforms ordinary supplies in phrases of performance, longevity, and cost-efficiency.

Installation Best Practices for HDPE Geomembrane Canal and Reservoir Lining

Proper set up is crucial to maximizing the standard overall performance of HDPE liner in canal and reservoir projects. Even the highest-quality HDPE liner sheet will fail if installed incorrectly. Below are key tremendous practices for inserting in HDPE geomembrane:

1. Site Preparation for HDPE Liner Installation
The first step is thorough internet web site preparation. Clear the canal or reservoir area of all sharp objects, which encompass rocks, roots, debris, and vegetation, as these can puncture the HDPE geomembrane. Level and compact the subgrade to create a smooth, constant surface. For areas with easy or uneven soil, a geotextile underlayment can also moreover be established to defend the HDPE liner sheet from punctures and supply greater stability.

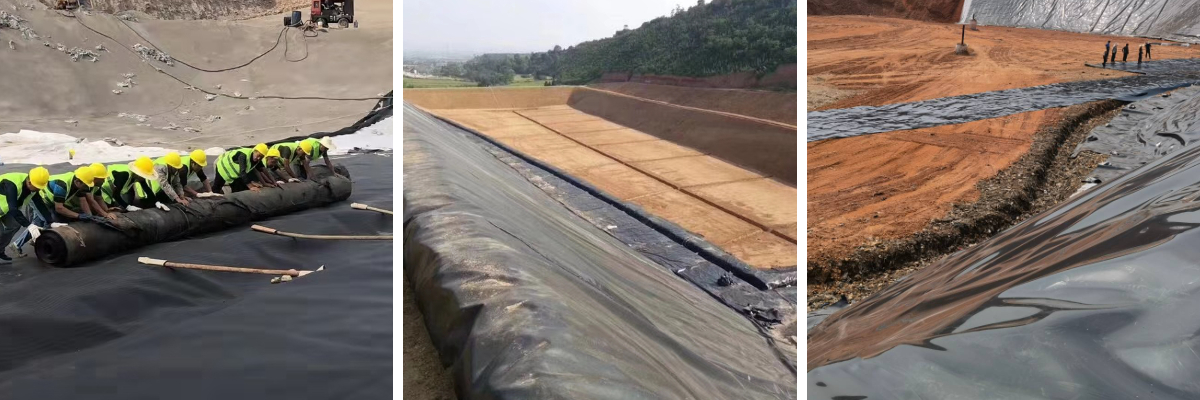

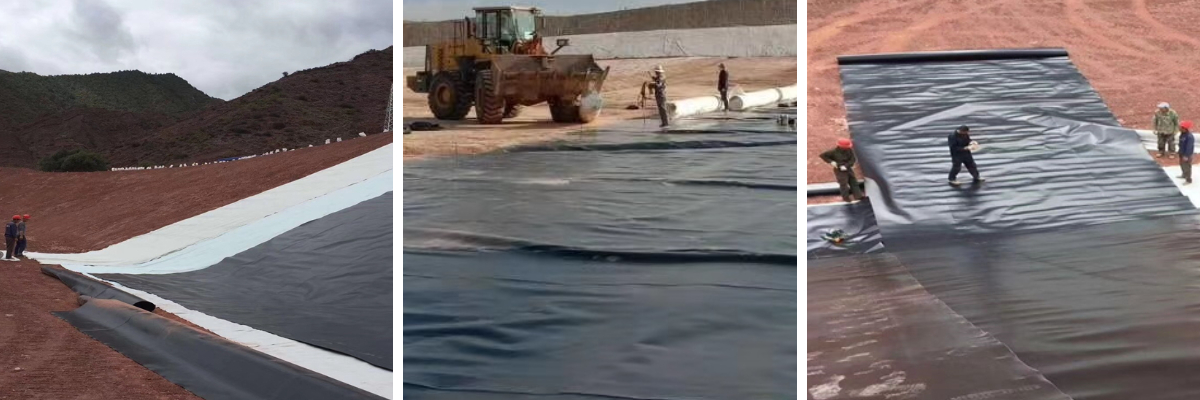

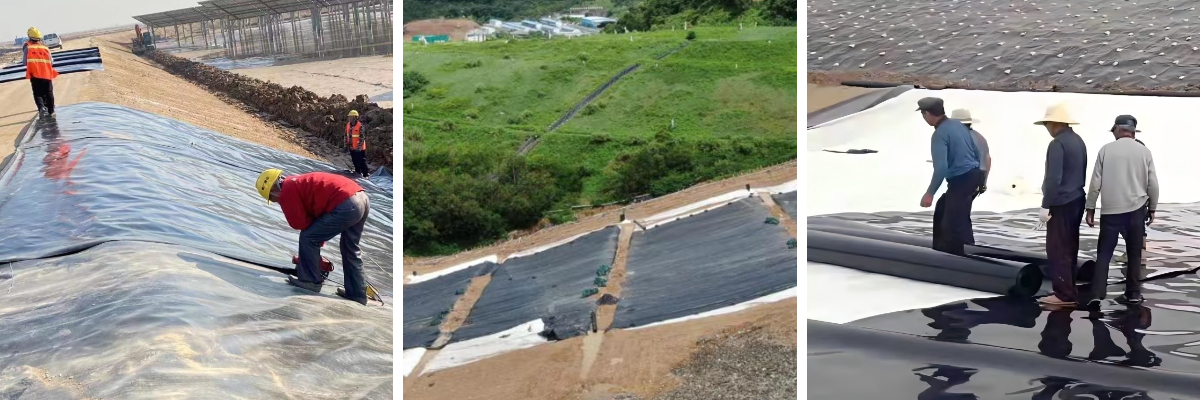

2. Deployment of HDPE Geomembrane Rolls
Once the internet site on-line is ready, unroll the HDPE liner panels cautiously during the equipped surface. Position the panels in accordance to the mission layout, making positive normal overlap between adjoining panels. Avoid dragging the HDPE liner sheet for the duration of difficult surfaces, as this can cause abrasions or tears. Use spreader bars to cope with massive rolls safely and give up damage for the length of deployment.
3. Seaming HDPE Liner Sheets for Watertight Integrity
Seaming is the most critical step in making positive the HDPE geomembrane kinds a continuous watertight barrier. The predominant strategy for turning into a member of HDPE liner sheet panels is thermal fusion welding, which melts the HDPE material at the seam and fuses the panels together. This creates a strong, permanent, watertight bond. Two time-honored thermal fusion techniques are heat wedge welding for straight seams and extrusion welding for curved or difficult seams. All seams need to be inspected and examined to make certain they are free of leaks.
4. Anchoring the HDPE Liner
To quit the HDPE liner from shifting, slipping, or lifting due to water stress or soil movement, appropriate anchoring is essential. The edges of the HDPE geomembrane are secured in anchor trenches dug spherical the perimeter of the canal or reservoir. The liner is buried in the trench and backfilled with compacted soil, making positive a tight, impenetrable anchor. Additional anchoring can additionally be required on steep slopes or in areas with immoderate water flow.
5. Post-Installation Inspection and Maintenance
After installation, conduct a thorough inspection of the entire HDPE liner sheet ground and all seams to take a seem at for defects, punctures, or leaks. Non-destructive making an attempt out methods, such as air stress making an attempt out or spark testing, can be used to affirm seam integrity. Once the inspection is complete, fill the canal or reservoir with water step by step to allow the HDPE geomembrane to settle and conform to the subgrade. Ongoing safety consists of regular inspections to put off debris, fix any damage, and make sure the liner stays in most efficient condition.

Applications of HDPE Liner Sheet in Canal and Reservoir Projects

1. Irrigation Canals
Irrigation canals are the lifeline of agriculture, and HDPE geomembrane is significantly used to line these fundamental water transport systems. The HDPE liner prevents seepage losses as water travels from reservoirs to farmland, making positive most water reaches crops. The flexibility of the HDPE liner sheet makes it pleasant for lining every small, slim canals and large, big irrigation channels, adapting to a number widths and slopes.
2. Water Storage Reservoirs
Reservoirs store water for eating supply, industrial use, and emergency needs, making seepage manipulate essential. HDPE geomembrane traces the bottom, slopes, and embankments of reservoirs, growing a reliable impermeable barrier. The HDPE liner sheet can stand up to the normal water stress and fluctuating water ranges in reservoirs, while its UV resistance ensures long-term average overall performance in uncovered areas. Both small farm reservoirs and big municipal water storage services obtain from the sturdiness and effectivity of HDPE liner.
3. Rehabilitation of Aging Infrastructure
Many existing canals and reservoirs go thru from severe seepage due to deteriorating concrete, cracked clay liners, or worn asphalt. HDPE liner affords an efficient, cheap reply for rehabilitating these developing ancient structures. Instead of costly full reconstruction, a new HDPE geomembrane liner can be set up over the present day surface, restoring watertight integrity and extending the infrastructure’s lifespan. The HDPE liner sheet conforms to the cutting-edge structure’s shape, making it gorgeous for retrofitting initiatives of all sizes.

Conclusion: Invest in HDPE Geomembrane for Long-Term Water Infrastructure Success
Canal and reservoir lining is a quintessential funding in water conservation, infrastructure durability, and environmental protection. When it comes to finding out on a lining material, HDPE geomembrane stands out as the clear leader. The HDPE liner guarantees unmatched seepage prevention, notable durability, flexibility, cost-effectiveness, and environmental sustainability—benefits that no everyday lining material can match.From small irrigation canals to large municipal reservoirs, the HDPE liner sheet has proven its reliability in water infrastructure duties worldwide. By following best set up pleasant practices, task vendors can make sure their HDPE geomembrane liner performs optimally for decades, minimizing water loss, reducing safety costs, and defending quintessential water resources.For any canal or reservoir lining project, deciding on HDPE geomembrane is no longer genuinely a choice for today—it’s an funding in the long-term success and sustainability of water infrastructure.
