5 Critical Design Factors for Specifying 3D Vegetation Nets on Construction Sites
When managing erosion and organising vegetation on development sites, 3D vegetation nets have turn out to be an enterprise popular for slope protection, channel lining, and land rehabilitation. However, now not all 3D nets operate equally. Specifying the incorrect product can lead to internet delamination, seedling washout, or entire machine failure. To assist engineers and specifiers make knowledgeable decisions, this article breaks down 5 indispensable diagram factors—with exceptional interest to arid area vegetation establishment, steep slope erosion control, and the use of a riparian vegetation internet the place hydric stipulations prevail.
H2: Factor 1 – Material Composition and UV Stability
The base polymer or fiber cloth determines how lengthy a 3D vegetation internet will keep its structural integrity underneath sunlight, temperature swings, and chemical exposure. For arid quarter vegetation establishment, this aspect is specially acute. Deserts and semi-arid areas ride excessive photo voltaic radiation, regularly exceeding 120,000 lux, blended with daylight temperatures above 40°C. Under such conditions, non-stabilized polypropylene nets can emerge as brittle and crack inside six months—before perennial grasses have time to root deeply.
When specifying for arid climates, appear for nets manufactured with high-molecular-weight polyethylene (HDPE) or UV-stabilized polyamide. These substances hold elasticity for 24 to 36 months, supplying a defensive microclimate for seedlings. The net’s open region proportion additionally matters: too dense and it traps heat, cooking subtle roots; too sparse and it affords no shade. Optimal designs for dry zones characteristic 60–70% open house with a three-d wave shape that casts partial color on the soil surface. This reduces evaporation via 30–40%, a indispensable gain for arid region vegetation establishment.
Additionally, take a look at the manufacturer’s accelerated weathering take a look at statistics (ASTM G155 or ISO 4892). A well-designed 3D internet retains at least 80% of its tensile energy after 2,000 hours of Xenon-arc exposure. Avoid merchandise that exhibit floor cracking or loss of crimp earlier than that threshold.

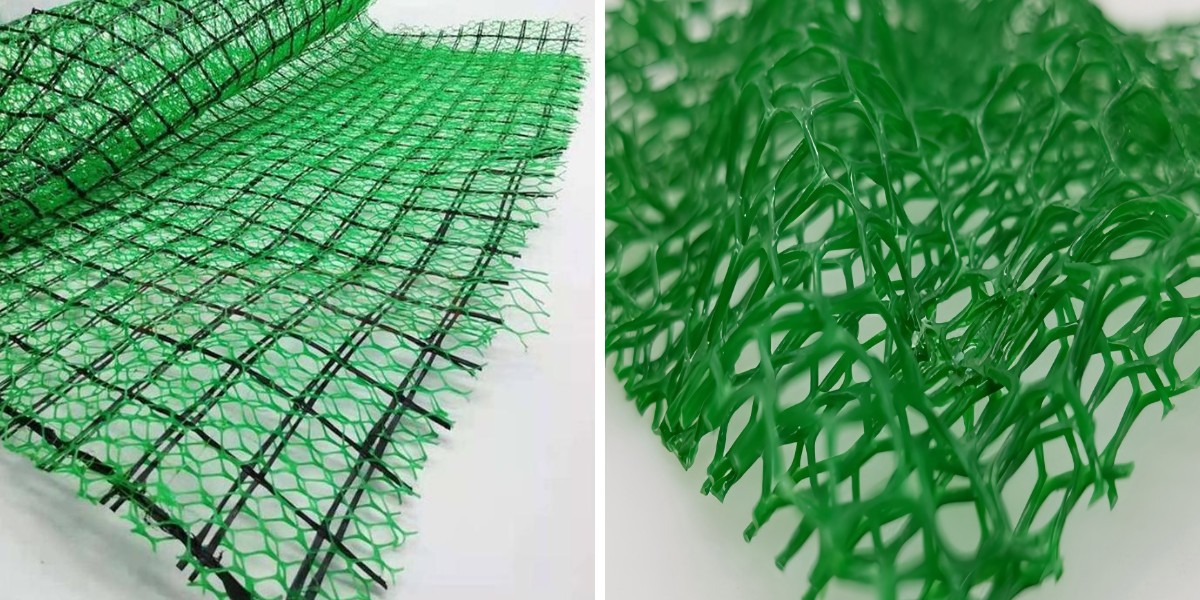

H2: Factor two – Thickness and Fiber Crimp for Root Interception

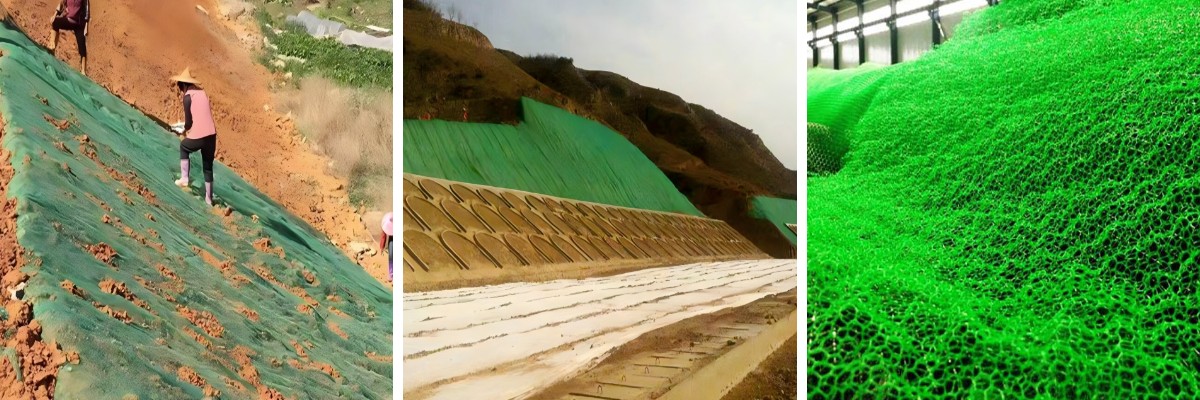

The mechanical overall performance of a 3D vegetation internet relies upon closely on its thickness (measured in millimeters) and the crimp or waviness of character filaments. For steep slope erosion control, these parameters come to be safety-critical. Slopes exceeding 2:1 (horizontal:vertical) generate shear stresses from raindrop affect and overland drift that can peel skinny nets off the soil floor like a banana skin.
A strong format for steep slopes starts offevolved with a minimal thickness of 15 mm after compression testing. Thinner nets (8–10 mm) lack the void area for roots to weave thru a couple of layers, ensuing in “floating” turf that detaches all through the first heavy rain. The fiber crimp—measured as the ratio of straightened size to internet thickness—should be at least 1.4:1. This creates a random, tangled matrix that intercepts root suggestions from each annual and perennial species.
Field research exhibit that a 3D internet with excessive crimp and thickness will increase root tensile pressure by using 200–300% in contrast to flat mats. For steep slope erosion control, specify nets with a mass per unit location of 300–450 g/m² (higher for rockier substrates) and a vertical healing price of over 90% when compressed. Avoid nets that lay flat after foot traffic; they lack the resilience wanted to anchor soil on gradients.
Also reflect onconsideration on how the internet interfaces with subgrade. On steep slopes, a “dimpled” backside floor creates soil pockets that withstand downslope creep. Some designs comprise cellulose or coir fibers in the decrease layer to preserve moisture throughout the first 4 weeks—a fundamental duration for steep slope erosion manipulate earlier than roots establish.
H2: Factor three – Anchoring and Seam Strength Integration
Even the exceptional 3D internet will fail if its anchoring device is an afterthought. The sketch aspect right here covers two elements: the net’s aspect reinforcement and its compatibility with mechanical fasteners (staples, pins, or U-shaped nails). For initiatives requiring a riparian vegetation net, this thing takes on extra complexity due to the fact bankside installations face each hydraulic raise (from rising water) and burrowing animal activity.
A well-specified 3D internet facets bolstered selvedge edges—where the fibers are doubled or woven into a denser band—at least 10 cm large on all sides. This prevents tearing round staples, a frequent failure point. For riparian zones, the internet must additionally consist of pre-perforated grommet holes each 50 cm alongside the higher edge, permitting fast set up with corrosion-resistant staples (e.g., zinc-coated or stainless steel). Without these, waterfowl and muskrats can pry free edges, main to undercutting.
When used as a riparian vegetation net, the product ought to additionally exhibit excessive moist tear strength. Immersion in water for 28 days ought to now not minimize tensile capability by means of greater than 25%. Check for ASTM D4632 take hold of take a look at results; values above two hundred N for laptop course and one hundred fifty N for pass route are advisable. Some superior designs contain a biodegradable netting jacket over a everlasting core—this permits instant stabilization whilst roots colonize the core, which then acts as a dwelling mat resistant to high-flow events.

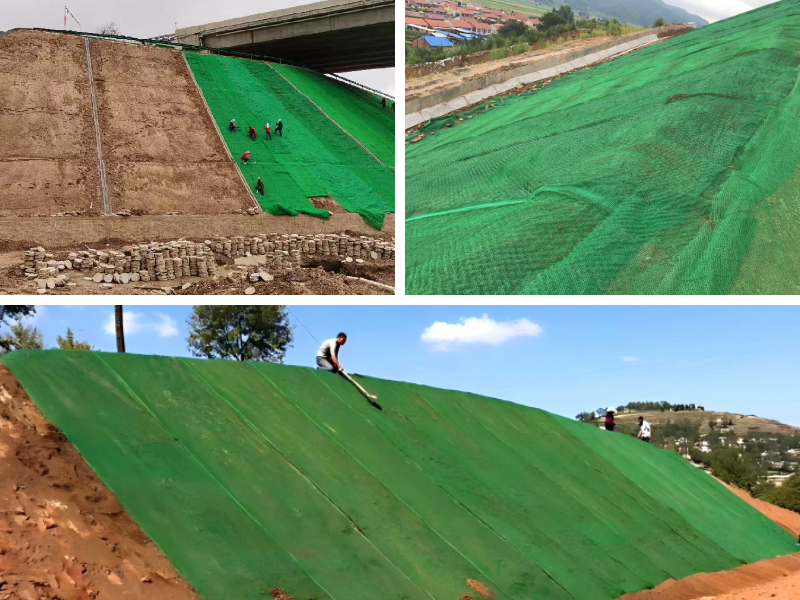

On steep slopes, anchor spacing have to be reduced. General pointers advocate two staples per rectangular meter for slopes below 25°, however for steep slope erosion manage on 35°+ gradients, enlarge to five staples per rectangular meter, with longer pins (30 cm minimum) pushed at a 10° upslope angle. The net’s seam strength—where a couple of widths are joined—should be factory-bonded or double-stitched, in no way field-overlapped besides adhesive. Overlaps by myself create slip planes.
H2: Factor four – Hydraulic Roughness and Water Management
A 3D vegetation internet is now not simply a root scaffold; it’s a hydraulic structure. Its layout determines how floor runoff interacts with the soil, affecting each erosion prevention and seedling survival. For arid area vegetation establishment, the internet ought to sluggish runoff ample to promote infiltration whilst warding off ponding that drowns younger roots. In contrast, a riparian vegetation internet need to deal with periodic submersion barring dropping its structure or trapping silt excessively.

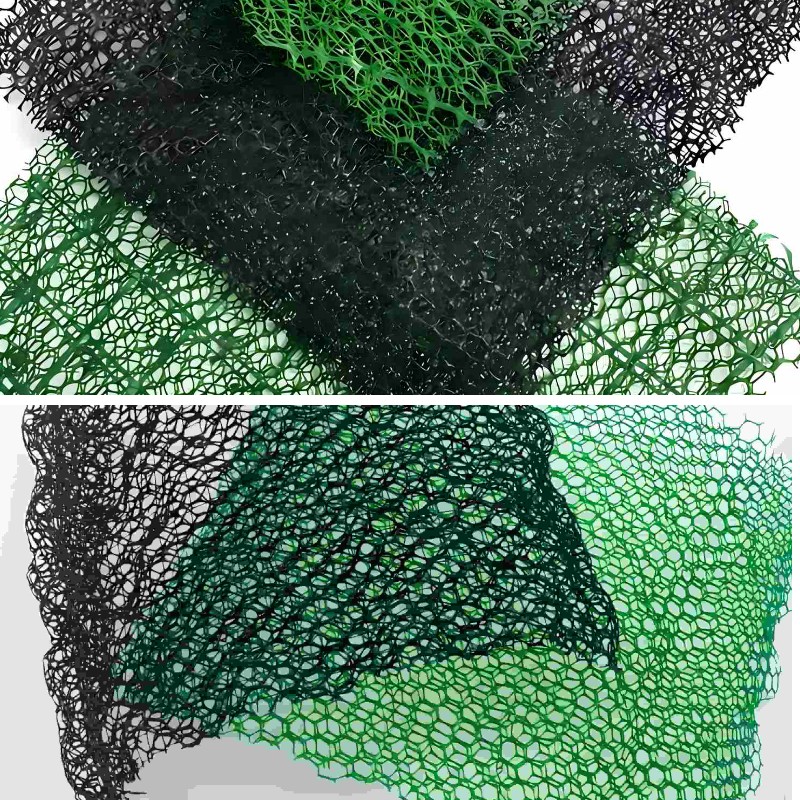

The key parameter is Manning’s roughness coefficient (n). A well-designed 3D internet will increase n from 0.02 (bare soil) to 0.05–0.08, decreasing go with the flow pace through half. This is carried out via a “dual-layer” architecture: a coarse decrease layer (10–15 mm thickness) with massive voids for drainage, and a finer higher layer that filters sediment. For arid sites, the top layer need to be unfastened adequate to enable fast drying between rain events, stopping fungal boom on seeds. Some designs comprise water-absorbent fibers (e.g., cross-linked polyacrylate particles) that shop dew and mild rain, releasing moisture over more than one days—a game-changer for arid quarter vegetation establishment.

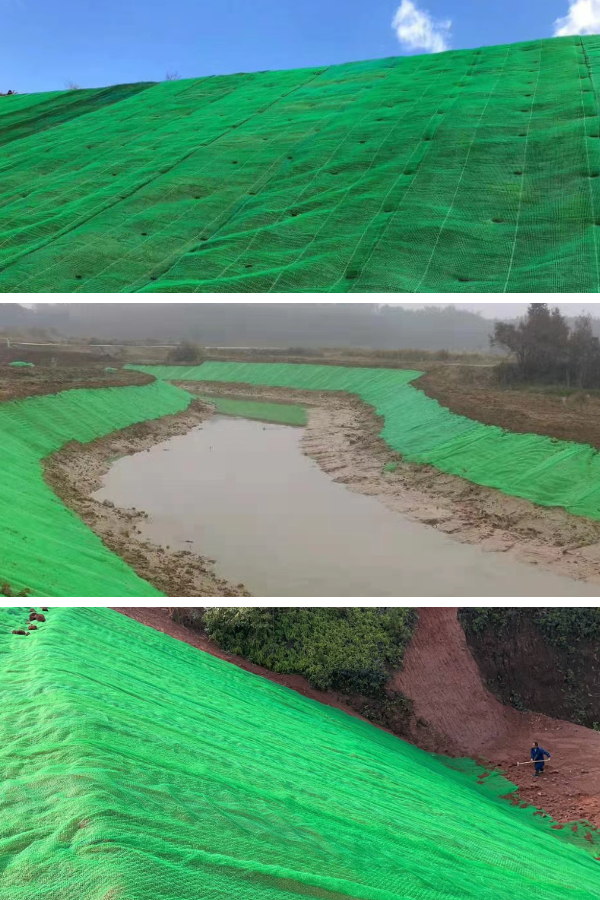

When specifying for riparian corridors, seem to be for nets with a “channelized” underside that creates small drift paths even when thoroughly saturated. A actual riparian vegetation internet will have a permeability of at least half cm/s underneath a five cm head of water, stopping hydrostatic uplift. Additionally, the net’s thickness need to taper at the edges to keep away from growing a dam impact that diverts water into unprotected adjoining areas.
Hydraulic checking out is essential. Request flume check information at drift velocities of 2–4 m/s (typical for bankfull conditions). The internet ought to exhibit much less than 5% elongation and no aspect lifting after 30 minutes of simulated flood. For steep slopes, additionally consider the net’s resistance to “rilling”—preferential waft paths that enhance along seams. A plan thing frequently unnoticed is the inclusion of transverse ribs or cross-fibers each 20 cm, which act as micro-check dams. These are helpful for steep slope erosion control, as they destroy lengthy slope lengths into shorter hydraulic runs.
H2: Factor five – Biodegradability Timeline Matching Plant Succession
3D vegetation nets fall into two categories: everlasting (synthetic) and transient (biodegradable). Neither is universally better; the right preference relies upon on the institution duration of the goal vegetation. For arid area vegetation establishment, native shrubs and bunchgrasses frequently take 18–24 months to strengthen a self-sustaining root mat. A internet that degrades in 12 months (common with pure jute or coir) will go away younger roots uncovered to wind scouring and heat. Conversely, a everlasting internet on a riparian financial institution ought to entangle otters or lure floating debris.
The best diagram for arid zones is a “hybrid” net: a slow-degrading cellulose core (e.g., coconut coir blended with sisal) wrapped in a UV-resistant artificial mesh that opens as the internal core dissolves. This affords three-phase protection: preliminary runoff manipulate (months 0–6), root safety (months 6–18), and eventual disappearance through month 36, leaving solely the vegetation. Always affirm the degradation fee by way of ASTM D6400 (composting conditions) or ISO 20200. For arid quarter vegetation establishment, keep away from fast-degrading substances like starch-PLA blends, which hydrolyze beneath the minimal moisture discovered in deserts.
In riparian environments, a riparian vegetation internet ought to degrade at a fee matched to willow or sedge root development—typically 24 to 36 months. However, if the website online has high beaver or muskrat activity, a everlasting internet with giant openings (5 cm mesh) lets in animal passage whilst nevertheless controlling financial institution erosion. Some producers produce nets with “sacrificial” outer layers that destroy down in 12 months, exposing a coarser everlasting grid. This two-stage graph is specially nice for steep slope erosion manage alongside reservoir drawdown zones, the place water degrees fluctuate seasonally.
Finally, think about the end-of-life microplastic risk. Permanent nets made from polypropylene or polyester can fragment into microplastics if now not utterly buried. Specify nets with documented “fragmentation resistance” (a lack of embrittlement after accelerated aging) or pick biodegradable choices for ecologically touchy areas. When in doubt, a blended internet (70% coir, 30% synthetic) provides a balanced compromise—enough durability for steep slope erosion control, but minimal long-term pollution
Conclusion
Specifying 3D vegetation nets requires greater than choosing the thickest or most inexpensive option. The 5 integral diagram factors—material UV stability, fiber crimp and thickness, anchoring integration, hydraulic roughness, and biodegradability timing—directly decide success or failure. Whether you are enabling arid area vegetation institution in a wilderness toll road cut, designing steep slope erosion manipulate for a mining reclamation project, or deploying a riparian vegetation internet alongside a salmon-bearing stream, every aspect should be tailor-made to the site’s climate, hydrology, and vegetation goals. By traumatic overall performance records and matching internet structure to ecological timelines, you can construct slopes that continue to be vegetated for decades—not simply till the subsequent storm.
