3D Vegetation Nets vs. Turf Reinforcement Mats: What's the Difference?
When it comes to erosion control, slope stabilization, and vegetation establishment, engineers and landscapers regularly face a imperative choice: 3D vegetation nets or turf reinforcement mats. Both options are designed to guard soil and promote plant growth, however they serve exceptional functions and operate beneath one-of-a-kind conditions. Understanding the variations can retailer your mission from high-priced failures—especially when dealing with steep slopes, excessive water flow, or landslide-prone areas. In this guide, we’ll damage down how every gadget works, the place to use them, and why choosing the proper one things for slope revegetation and long-term land stability.
What Are 3D Vegetation Nets?

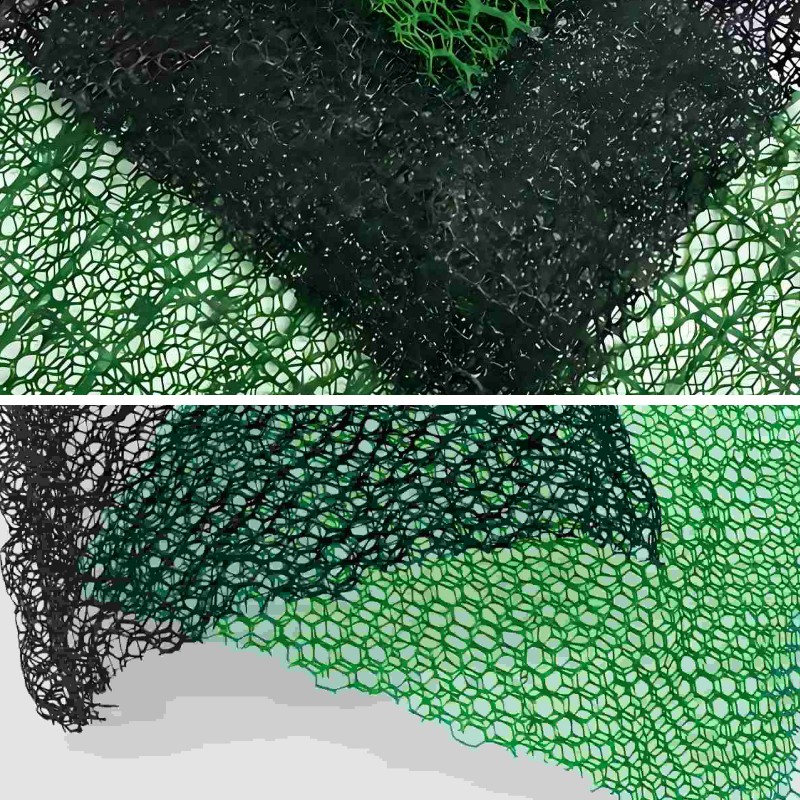

3D vegetation nets are lightweight, third-dimensional polymer mesh constructions designed exceptionally to anchor seeds and topsoil on slopes. Their open, web-like configuration creates a micro-environment that holds moisture, reduces floor runoff velocity, and protects germinating plants. These nets are normally made from UV-stabilized polypropylene or comparable artificial materials, and they degrade over time—usually inside two to 5 years—once vegetation is absolutely established.
The principal feature of a 3D vegetation internet is slope revegetation on moderate to relatively steep inclines. By developing a bodily barrier towards rain splash and sheet erosion, the internet approves grass, herbs, or native flora to take root except being washed away. However, it’s vital to notice that 3D vegetation nets provide confined mechanical strength. They are no longer designed to stand up to focused water flow, heavy foot traffic, or vast soil movement. For tasks requiring a genuine landslide safety vegetation net, a widespread 3D internet may also fall brief due to the fact landslides contain deep soil failure or excessive shear stresses that light-weight nets can't resist.
Common functions for 3D vegetation nets include:
1.Highway embankments with slopes up to 1:1 (45 degrees)
2.Reclamation of mining websites and landfills
3.Garden and panorama erosion control
4.Temporary cowl for seed germination
What Are Turf Reinforcement Mats (TRMs)?
Turf reinforcement mats (TRMs) are a great deal heavier, greater long lasting erosion manipulate products. They consist of a dense, three-d matrix of artificial fibers (often nylon, polypropylene, or a blend) that are thermally bonded or needle-punched to shape a thick, resilient layer. Unlike 3D vegetation nets, TRMs are designed to completely enhance vegetation roots, growing a composite “living turf” that can face up to high-flow hydraulic conditions, reasonable traffic, and even shallow landslide forces.
A super turf reinforcement mat presents long-term soil stabilization by way of interlocking with plant roots. As roots develop via the mat’s open structure, they structure a bolstered sod layer that resists shear stress up to various hundred kilos per rectangular foot. This makes TRMs appropriate for drainage channels, spillways, steep slopes, and areas susceptible to floor erosion that ought to set off shallow landslides. In fact, many engineers specify TRMs as a light-weight choice to riprap or concrete lining when mixed with landslide safety vegetation internet principles—though TRMs by myself are no longer a answer for deep-seated slope failures.
Typical functions for turf reinforcement mats include:
1.High-flow drainage ditches and swales
2.Riverbanks and reservoir margins
3.Steep slopes exceeding 1:1 gradient
4.Areas with mild automobile or pedestrian traffic
5.Long-term slope safety the place vegetation is the principal stabilizer
Key Differences Between 3D Vegetation Nets and Turf Reinforcement Mats
1. Material Thickness and Durability
The most apparent distinction is thickness. 3D vegetation nets are typically 5–10 mm thick, with a low mass per rectangular meter (100–300 g/m²). They sense like a coarse, open mesh. Turf reinforcement mats, by means of contrast, vary from 10–25 mm thick and weigh 300–1,500 g/m² or more. The denser shape of a turf reinforcement mat presents on the spot erosion safety even earlier than vegetation establishes, whilst a 3D internet depends nearly totally on flora for strength.
2. Mechanical Performance Under Stress
3D vegetation nets provide minimal resistance to focused flow. In a channel with float velocities above 1.5 m/s, a 3D internet will in all likelihood fail inside weeks. TRMs, however, can manage velocities of 3–6 m/s relying on vegetation maturity. For landslide safety vegetation internet applications, a TRM is frequently the minimal requirement due to the fact it helps bind the root zone, decreasing the possibility of shallow translational slides. But beware: neither product can quit deep-seated landslides; they solely shield the floor layer.
3. Longevity and Degradation
3D vegetation nets are deliberately degradable. Most are designed to disappear after 2–5 years, leaving in the back of a absolutely rooted vegetative cover. This is best for slope revegetation initiatives the place long-term balance comes solely from plants. Turf reinforcement mats are commonly non-degradable or very sluggish to degrade (10+ years). They continue to be in the soil as a everlasting reinforcement layer, which is indispensable for high-stress environments. However, some contemporary TRMs use biodegradable substances blended with synthetics to stability toughness and environmental impact.
4. Cost and Installation
3D vegetation nets are cheaper—often 30–50% much less costly per rectangular meter than TRMs. They are additionally simpler to installation on mild slopes; you can roll them out, staple them down, and seed over the top. Turf reinforcement mats require extra cautious anchoring, frequently with trenching at the crest and toe, plus heavier staples or stakes. For large-scale slope revegetation budgets, the decrease value of 3D nets is attractive, however solely if web page prerequisites are mild.
When to Choose a 3D Vegetation Net for Slope Revegetation
Select a 3D vegetation internet when:
1.Slope gradient is much less than 1:1 (45 degrees)
2.No targeted water float (e.g., no channels or gullies)
3.Soil kind is cohesive (clay or silt) as an alternative than free sand
4.You want brief safety for 1–3 years
5.The most important aim is slope revegetation with native grasses or herbs
6.Budget is confined and mechanical hundreds are minimal
For example, a toll road embankment with a 2:1 slope and reasonable rainfall is a best candidate for a 3D net. The internet holds seed and topsoil in place, prevents rill erosion, and degrades after grass establishes. However, if the identical slope has a records of small slumps or floor slides, a landslide safety vegetation internet strategy would require a TRM instead. The 3D internet truly lacks the root reinforcement potential to face up to these forces.
When to Choose a Turf Reinforcement Mat for Landslide Protection
A turf reinforcement mat is the higher desire when:
1.Slope gradient exceeds 1:1 (steeper than forty five degrees)
2.Concentrated drift paths exist (even seasonal streams)
3.Soil is loose, sandy, or susceptible to floor slumping
4.Long-term (10+ years) erosion manipulate is required
5.Light site visitors (maintenance vehicles, livestock) is expected
You want landslide safety vegetation internet overall performance for shallow slides
Consider a reservoir financial institution that experiences wave motion and fluctuating water levels. A 3D internet would rapidly erode, however a TRM with deep-rooted vegetation can face up to hydraulic carry and shear stresses. Similarly, a steep landfill cap (1.5:1 slope) issue to heavy rainfall advantages from a TRM’s on the spot soil retention—even earlier than grass germinates. For slope revegetation in difficult conditions, TRMs supply a security margin that 3D nets cannot.
Can You Combine Both Systems?
Yes. In some projects, designers use a 3D vegetation internet as a seed provider on pinnacle of a turf reinforcement mat. The 3D internet holds moisture and seed close to the surface, whilst the underlying TRM presents everlasting reinforcement. This mixture is luxurious however advantageous for imperative slopes the place each speedy germination and long-term balance are mandatory. The layered strategy additionally enhances landslide safety vegetation internet abilities by way of growing a thick, composite root-mat system.
Another hybrid method: observe a 3D internet on the upper, gentler parts of a slope and change to a TRM in drainage channels or steeper sections. This optimizes price barring compromising safety. Always seek advice from a geotechnical engineer when designing for slope revegetation on slopes inclined to failure.
Common Mistakes to Avoid
Using a 3D vegetation internet in a drainage channel – It will wash away in the first heavy rain. A turf reinforcement mat is obligatory for any focused flow.
Assuming all TRMs are the equal – Some TRMs have decrease UV resistance or tensile strength. Match the product to your site’s most anticipated go with the flow pace and shear stress.
Forgetting root depth – For real landslide safety vegetation internet function, pick out deep-rooted flowers (grasses with 1–2 m roots or shrubs) and make certain the TRM permits root penetration. Shallow-rooted turf on a TRM may additionally nonetheless slide.
Ignoring long-term upkeep – Even the high-quality TRM requires inspection after storms. A turf reinforcement mat with broken fibers can unravel, decreasing its effectiveness.
Environmental Considerations
Both merchandise are made from plastics, elevating issues about microplastic pollution. Some 3D vegetation nets use biodegradable polymers (e.g., coir or jute blended with synthetics) that ruin down into innocent natural matter. For slope revegetation in touchy ecosystems, specify completely biodegradable nets—though they have even decrease electricity than popular 3D nets. Turf reinforcement mats are not often completely biodegradable, however some producers provide recycled-content versions. When landslide safety vegetation internet is the goal, the sturdiness of synthetics regularly outweighs environmental drawbacks, as stopping erosion protects downstream water quality.
Conclusion: Matching Product to Purpose
The distinction between 3D vegetation nets and turf reinforcement mats comes down to one word: strength. A 3D vegetation internet is a lightweight, brief useful resource for slope revegetation on moderate slopes with no centred flow. A turf reinforcement mat is a heavy-duty, everlasting answer for steep slopes, channels, and areas requiring landslide safety vegetation internet performance.
To pick correctly, verify your site’s most anticipated water velocity, slope angle, soil type, and required lifespan. When in doubt, lean towards the superior option—a failed slope is some distance extra luxurious than upgrading from a 3D internet to a TRM. For most infrastructure projects, a turf reinforcement mat blended with deep-rooted vegetation presents the fine stability of cost, durability, and environmental safety. Meanwhile, for landscaping or low-risk embankments, a 3D vegetation internet gives an economical, eco-friendlier begin to slope revegetation. Know your site, comprehend your risks, and choose the device that fits the job.
