Integrating 3D Vegetation Nets with Other Geosynthetics for Composite Slope Design

Introduction: The Next Frontier in Slope Protection
Modern infrastructure development faces a power challenge: how to stabilize slopes correctly whilst retaining ecological integrity. Traditional difficult armoring solutions—concrete, riprap, and protecting walls—often be triumphant structurally however fail aesthetically and environmentally. Enter composite slope design: the strategic integration of 3D vegetation nets with complementary geosynthetics to create structures that are better than their character components and greener than traditional alternatives.
This method acknowledges that no single product solves each slope steadiness problem. By combining 3-dimensional reinforcement matrices with different geosynthetic technologies, engineers can tackle floor erosion, mass instability, and vegetation institution simultaneously. The result? Slopes that face up to shear stresses up to 15 ft per 2d whilst helping thriving plant communities . Whether you are dealing with tender soil basis revegetation challenges or in search of steep slope erosion manipulate solutions, appreciation composite machine plan transforms how you method slope protection.

Understanding 3D Vegetation Nets: The Living Reinforcement
What Are 3D Vegetation Nets?

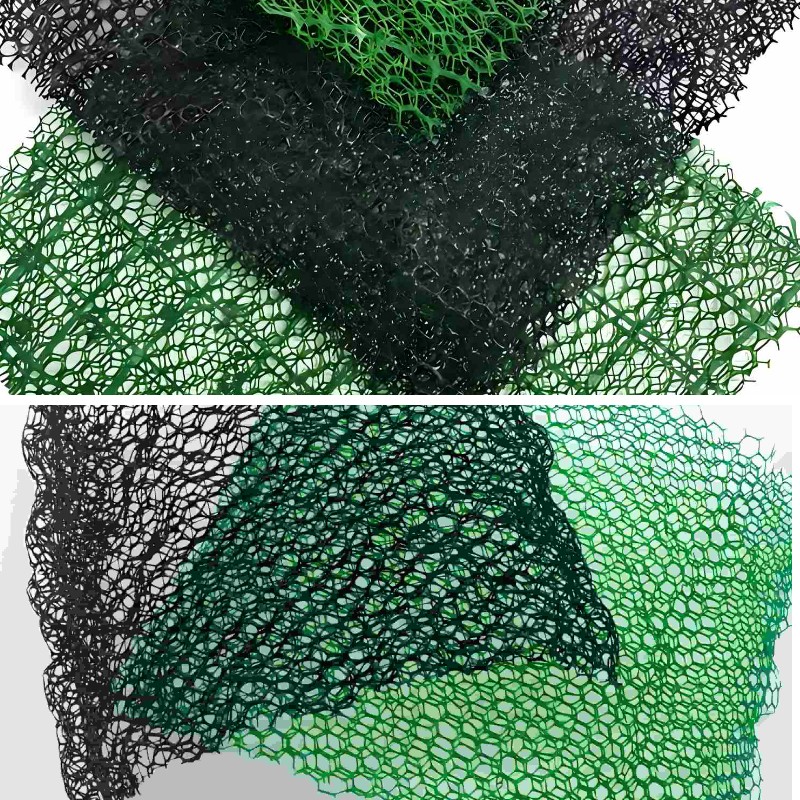

Three-dimensional vegetation nets, typically labeled as turf reinforcement mats (TRMs), characterize an evolution past easy erosion manipulate blankets. These permanent, non-degradable buildings consist of UV-stabilized artificial fibers, filaments, and nettings processed into dimensionally secure matrices . Unlike transient covers that degrade after vegetation establishes, 3D nets stay in location indefinitely, imparting non-stop reinforcement to root systems.

The magic lies in the geometry. These mats function open three-d structures—often described as pyramid-like matrices—that create void areas ranging from 80% to 95% . This openness serves two fundamental functions: it permits soil filling for the duration of set up and gives root structures room to increase thru the matrix. When vegetation matures, roots intertwine with the artificial structure, growing a composite cloth the place flowers and polymers work synergistically.

How They Function in Slope Protection
The most important mechanism entails what engineers name "root-soil-matrix interaction." As plant roots develop thru the 3-dimensional net, they come upon artificial factors that extend root quarter lateral strength. This reinforcement prevents plant dislodgement underneath hydraulic forces whilst the mat shape consolidates and protects soil from being stripped out of the vegetative cowl .

For gentle soil basis revegetation projects, this performance proves invaluable. The mat stabilizes the soil floor lengthy adequate for seedlings to establish, then transitions to a everlasting reinforcement role. Even on difficult substrates the place natural count is limited, the three-d shape offers bodily aid that encourages root improvement and long-term vegetation persistence.

The Composite Approach: Synergy Through Integration
Why Combine Technologies?
No single geosynthetic addresses each and every slope failure mechanism. Surface erosion differs essentially from deep-seated instability, and vegetation necessities add any other layer of complexity. Composite designs renowned this truth by using assigning unique features to specific device elements while making sure they work collectively seamlessly.

Consider a regular steep slope scenario: the higher soil layer faces raindrop influence and sheet erosion, whilst deeper zones contend with mass motion potential. A turf reinforcement mat would possibly guard the floor and guide vegetation, however by myself it cannot forestall deep-seated failure. Conversely, a structural geogrid would possibly stabilize the slope mass however go away the floor inclined to rilling. Together, they create a whole solution.

Key Geosynthetic Partners
Several geosynthetic kinds many times combine with 3D vegetation nets:
Geocells (Cellular Confinement Systems) : These three-dimensional, honeycomb-like buildings enlarge on-site to create restricted cells stuffed with topsoil. When mixed with vegetation nets placed over or inside the cells, they supply splendid resistance to each floor and mass movement. Research confirms that geogrid-double net-horizontal baffle constructions exhibit most useful anti-erosion overall performance in contrast to less difficult structures .
Geogrids: Primarily functioning as tensile reinforcement inside soil masses, geogrids stabilize slopes internally. When vegetation nets cowl the slope face, they defend the geogrid from UV publicity whilst the geogrid offers the deep steadiness critical for long-term vegetation success.
Erosion Control Blankets (Temporary) : In some composite designs, degradable blankets guard the 3D internet and seed throughout preliminary establishment, degrading after vegetation matures and leaving the everlasting artificial matrix as long-term reinforcement.

Soft Soil Foundation Revegetation: Building from the Ground Up
The Challenge of Weak Substrates
Soft soil foundations existing special difficulties for vegetation establishment. Low shear energy potential the soil itself may additionally deform underneath load, whilst bad nutrient content material limits plant growth. Traditional methods regularly concerned importing giant volumes of topsoil—expensive and now and again impractical on far off or steep sites.
Composite designs seriously change this challenge. By distributing masses thru geosynthetic reinforcement, the basis will become succesful of helping vegetation that would in any other case fail. The key is creating a steady platform the place roots can improve barring being sheared off by means of soil movement.
System Design for Soft Soils
Effective gentle soil basis revegetation the usage of composite structures normally follows a layered approach. A base layer of high-strength geogrid or geocell affords world stability, distributing masses and stopping mass movement. Above this, a increase medium—often amended with natural cloth and seed—supports plant development. The 3D vegetation internet at the floor protects towards raindrop affect and rill erosion whilst reinforcing rising root systems.
This stratification mimics herbal soil profiles however with engineered reinforcement at every level. The geosynthetics really create a "floating" root quarter that strikes with the gentle basis alternatively than shearing apart. Over time, roots penetrate thru all layers, growing a residing mat that similarly enhances stability.
Species Selection Considerations
Vegetation desire drastically influences gadget overall performance in gentle soils. Deep-rooted native grasses regularly outperform added species due to the fact their root structure adapts to nearby conditions. Legumes add nitrogen, enhancing long-term fertility. The third-dimensional internet publications root development, encouraging vertical penetration instead than shallow spreading—critical for getting access to deeper moisture and nutrients.

Steep Slope Erosion Control: Engineering for Gravity
Understanding the Stakes
Steep slope erosion manipulate needs greater than floor protection—it requires structures that withstand each hydraulic forces and gravity-driven mass movement. Slopes exceeding 3H:1V speed up water flow, growing erosive electricity exponentially . On 2:1 or 1:1 slopes, the challenges multiply: water speed increases, soil particles detach extra easily, and vegetation struggles to set up earlier than being washed away.

Composite designs tackle these forces via redundancy. If floor vegetation suffers transient damage, the underlying geosynthetics preserve protection. If deep-seated motion threatens, structural reinforcement resists failure. This multi-layered protection proves in particular precious for the duration of intense climate activities when single-layer structures may fail catastrophically.

Composite System Configurations
Several validated configurations exist for steep slope applications:
Geocell-Vegetation Net Composites: The geocell gives instant structural stability, confining fill fabric and stopping downslope movement. Above this, a turf reinforcement mat protects the floor and reinforces vegetation. Installation usually includes increasing geocell panels, anchoring them with stakes in a 2x2 pattern, filling with topsoil, then putting and seeding the vegetation internet .
Geogrid-TRM Systems: Horizontal geogrid layers inside the slope furnish tensile reinforcement, whilst a non-stop TRM masking the face prevents floor erosion. This configuration excels on slopes up to 70 ranges the place soil nailing or different deep stabilization strategies tackle international balance .
Anchored Double-Net Systems: Recent improvements encompass anchor-double net-baffle (ADNB) structures that structure third-dimensional bendy constructions combining anchors, double nets, and baffles. Research demonstrates these structures substantially beautify erosion resistance on high-steep rock slopes the place visitor soil steadiness proves not easy .

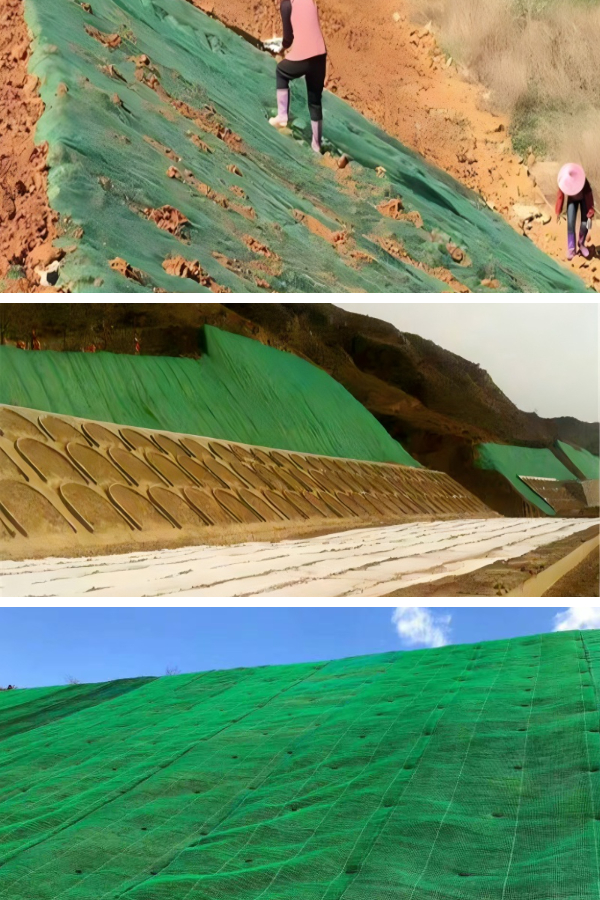

Installation Best Practices
Success on steep slopes relies upon closely on set up quality. Surface training ought to encompass disposing of rocks large than two inches, smoothing hard spots, and making sure constant grade . For slopes exceeding forty five degrees, take a look at slots at the slope pinnacle forestall water from undermining the system. Anchoring patterns must observe producer specifications—typically greater commonplace on steeper slopes and in areas of targeted flow.

Overlap important points depend enormously. Rolls must be shingled from pinnacle to bottom, with upslope rolls overlapping downslope rolls by means of at least 7 inches. Side overlaps of four inches minimal forestall water from discovering paths between sections . Proper tensioning ensures intimate soil contact except stretching the mat—bulges or gaps invite erosion underneath.

Turf Reinforcement Mats: The Critical Component
What Makes TRMs Different?
Turf reinforcement mat technological know-how has developed appreciably from early erosion blankets. Modern TRMs are engineered as permanent reinforcement, now not transient cover. They characteristic excessive tensile strength—often exceeding 2000 kilos per foot width—and three-d buildings that hold thickness below load . This thickness creates area for root improvement whilst defending soil from shear stresses up to 10 kilos per rectangular foot .
Performance classifications assist healthy merchandise to web page conditions. Type A TRMs swimsuit slopes up to 1.5H:1, whilst Type B and C merchandise deal with steeper terrain . High-performance TRMs (HPTRMs) tackle the most stressful applications: slopes exceeding 1H:1 and channels with excessive go with the flow velocities.
Synergy with Vegetation
The relationship between TRMs and vegetation is really synergistic. The mat protects seedlings at some stage in establishment, then reinforces mature root structures towards hydraulic elevate and shear. In turn, set up vegetation colorings the artificial components, stopping UV degradation and extending provider lifestyles indefinitely . Roots developing thru the matrix create a unified dwelling mat that outperforms both aspect alone.
This synergy proves especially treasured in channels and drainage ways. Vegetated TRM-lined channels stand up to velocities that would strip unprotected vegetation, whilst ultimate extra ecologically useful than concrete or riprap selections . The gadget really creates armored vegetation as an alternative than vegetated armoring.

Selecting the Right TRM
Product choice have to consider:
Functional longevity: Permanent functions require UV-stabilized synthetics designed for a long time of service.
Hydraulic demands: Expected shear stress and go with the flow pace decide required mat thickness and tensile strength.
Vegetation requirements: Some TRMs accommodate seeding earlier than installation; others work exceptional with topsoil filling after placement .
Slope geometry: Steeper slopes typically require higher-performance mats with higher thickness and strength.

Composite Design in Practice: Real-World Applications
Highway Cut Slopes
Transportation corridors regularly characteristic steep reduce slopes in variable geology. Composite designs right here mix soil nailing or anchored geogrids for international balance with TRM-covered surfaces for erosion control. The vegetation internet helps fast institution of native species, meeting each aesthetic necessities and environmental enabling standards. Projects on London's A2 and A3 highways reveal how 45-70 diploma slopes can be stabilized whilst keeping rural appearance—a essential consideration in touchy landscapes .

Development Site Perimeter Slopes
Construction initiatives regularly create transient or everlasting slopes requiring on the spot protection. Composite structures shine right here due to the fact they set up safety straight away whilst aiding long-term vegetation. At San Francisco's Oyster Point development, a 2H:1 slope experiencing extreme storm erosion used to be stabilized the usage of geocell confinement with vegetated fill—transforming a legal responsibility into an asset that better property values .

High-Altitude Revegetation
Extreme environments take a look at each substances and methods. In Peru's Tayacaja location at 3000 meters elevation, engineers confronted the task of reforming and revegetating steep reduce slopes used as building quarries. Their solution—filling biodegradable jute baggage with alluvial soil and putting them in contour rows—demonstrates how composite questioning extends past synthetics to encompass herbal substances the place appropriate. The gadget withstood severe seasonal rains whilst helping dense vegetation growth, eventually fulfilling stringent environmental authority necessities .

Design Considerations for Composite Systems
Site Assessment Parameters
Effective composite format starts with thorough web site understanding. Critical elements include:
Soil properties: Texture, nutrient content, and shear energy have an impact on each mechanical balance and vegetation potential. On tender soil basis revegetation projects, bearing potential frequently dictates geosynthetic selection.
Slope geometry: Angle and size decide erosive electricity and get admission to for set up equipment.
Hydrology: Surface and subsurface water manage can also require integration with drainage geocomposites or perimeter ditches.
Climate: Rainfall intensity, freeze-thaw cycles, and developing season size have an effect on vegetation institution windows.
Performance Testing and Verification
Design verification need to consist of each momentary and long-term considerations. Rainfall simulation testing, like that used in ADNB machine research, quantifies erosion resistance beneath managed prerequisites . Post-installation monitoring tracks vegetation institution and identifies upkeep desires earlier than issues develop.
Maintenance Requirements
Even well-designed composite structures require attention. Mowing vegetation too low exposes TRMs to UV damage, lowering long-term effectiveness . Inspections need to take a look at for cracks, tears, or breaches in mats, especially after fundamental storm events. Sediment accumulation in channels may additionally require elimination to keep hydraulic potential except unfavourable vegetation.

Future Directions in Composite Slope Design
Smart Systems and Monitoring
Emerging applied sciences promise smarter composite systems. Embedded sensors should display moisture, movement, and vegetation health, imparting early warning of growing problems. Integration with GIS and far flung sensing allows system-wide circumstance evaluation barring web page visits.
Advanced Materials
Research continues into substances that mix overall performance with environmental compatibility. Recycled polymers, bio-based synthetics, and hybrid natural-synthetic composites enlarge format picks whilst addressing sustainability concerns. The intention stays the same: structures that operate structurally whilst aiding thriving, self-sustaining vegetation.
Climate Adaptation
As climate patterns turn out to be greater extreme, composite designs should adapt. Systems succesful of withstanding each drought and severe rainfall activities require cautious species decision and strong reinforcement. The inherent redundancy of composite approaches—multiple protection layers towards more than one failure modes—positions them nicely for an unsure local weather future.

Conclusion: The Whole Exceeds the Sum
Integrating 3D vegetation nets with complementary geosynthetics represents greater than technical innovation—it displays a imperative shift in how we strategy slope stability. Rather than deciding on between structural options and ecological ones, composite layout embraces both. The end result is infrastructure that protects whilst it restores, stabilizes whilst it beautifies.

For engineers dealing with steep slope erosion manipulate challenges, the message is clear: no single product is probable optimal. By combining applied sciences strategically—matching every slope's special needs with fabulous reinforcement types—we create structures that outperform something viable with character components. The turf reinforcement mat protects the floor whilst geocells or geogrids tackle deeper stability, all whilst assisting the tender soil basis revegetation that transforms engineered slopes into residing landscapes.

The future of slope safety lies now not in deciding on between inexperienced and tough solutions, however in integrating them so entirely that the big difference blurs. In well-designed composite systems, vegetation and geosynthetics emerge as inseparable—each strengthening the other, collectively growing slopes that are each steady and alive.
