A Contractor's Guide to Installing Geocell for Earth Stabilization
In the world of civil building and earthworks, attaining long-term steadiness on difficult floor is a consistent pursuit. Traditional strategies can be costly, time-consuming, and every so often insufficient. This is the place mobile confinement structures come into play, supplying a sturdy and versatile solution. This complete information is designed for contractors searching to grasp the set up of geocell science for a broad vary of earth stabilization applications.
Understanding Geocell and Cellular Confinement Systems

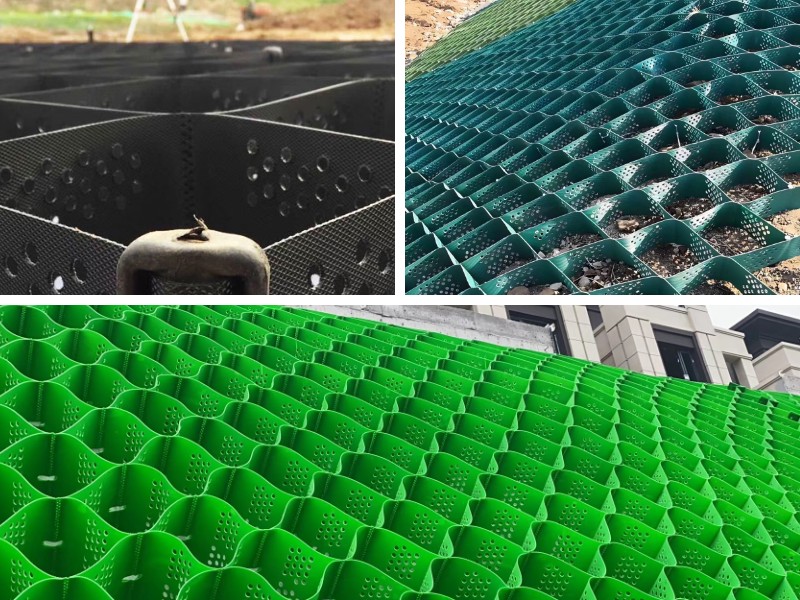

Before diving into the set up process, it is quintessential to recognize what you are working with. Geocell is a three-dimensional, honeycomb-like shape made from strips of polymer substances that are welded or related at ordinary intervals. When improved on-site, these panels structure a flexible, high-tensile community of cells.
This system, recognized mutually as a cell confinement system, works by way of confining and stabilizing infill materials—such as sand, gravel, or soil—within its cells. This confinement dramatically will increase the load-bearing ability and shear electricity of the infill, remodeling in any other case vulnerable substances into a strong, composite structure. The predominant functions for this technological know-how encompass load aid for roads and foundations, geocell slope protection in opposition to erosion, and channel lining.
Pre-Installation Planning and Site Preparation
A profitable mission starts lengthy earlier than the geocell is unrolled. Thorough planning and website guidance are non-negotiable.
Site Assessment: Conduct a particular geotechnical survey to apprehend the subgrade conditions, together with soil type, moisture content, and bearing capacity. This will impact your preference of infill cloth and the required compaction effort.
Design Specifications: Always observe the engineered diagram plans. These will specify the kind of geocell, its depth, the tensile electricity required, the kind of infill material, and the required compaction density.
Material and Equipment Mobilization: Ensure all materials, together with the cell confinement systems, anchoring stakes, and infill material, are on-site and blanketed from UV exposure. Necessary gear generally consists of a compact curler (vibratory plate compactor for smaller areas), a front-end loader or skid-steer for spreading infill, and widespread hand tools.
Subgrade Preparation: This is the most vital step. The subgrade should be desirable graded to the favored contour and compacted to the designated density. For geocell slope protection, the slope face need to be easily graded and free of debris, sharp rocks, and vegetation that ought to puncture the material. A stable, well-compacted subgrade ensures uniform guide and prevents differential settlement.
Step-by-Step Geocell Installation Procedure
Following a meticulous set up process is key to reaching the designed overall performance from your cell confinement systems.
Step 1: Expanding and Anchoring the Geocell
Begin by using transporting the collapsed geocell panels to their special location. Expand them completely through pulling the panels apart, making sure all cells are absolutely opened and the panel is located successfully in accordance to the plans.
Immediately anchor the improved geocell in place. Use J-shaped or U-shaped anchoring stakes, using them via the phone junctions round the perimeter and throughout the panel at precise intervals. On slopes, begin anchoring from the top. Proper anchoring is quintessential for geocell slope safety to stop the complete gadget from sliding downhill for the duration of the infill process.
Step 2: Placing and Compacting the Infill Material
With the geocell securely anchored, the infill manner can begin.
Placement: Dump the accredited infill fabric (e.g., aggregate, sand) onto the accelerated geocell panel. Use a light-weight music loader or a spreader container to distribute the fabric evenly. The tools need to function immediately on the empty geocell, as its shape is designed to deal with this preliminary load. The intention is to fill the cells to about 1-2 inches above the pinnacle rim to account for compaction.
Compaction: Compaction is what prompts the mobile confinement device with the aid of growing a dense, interlocked mass. For granular infills, a vibratory plate compactor or a smooth-drum curler is commonly used. Make at least two passes barring vibration to at the beginning settle the material, observed by means of a couple of passes with vibration. The "lifts" or layers of infill need to be compacted till the preferred density is achieved, making sure a steady and unified mattress.

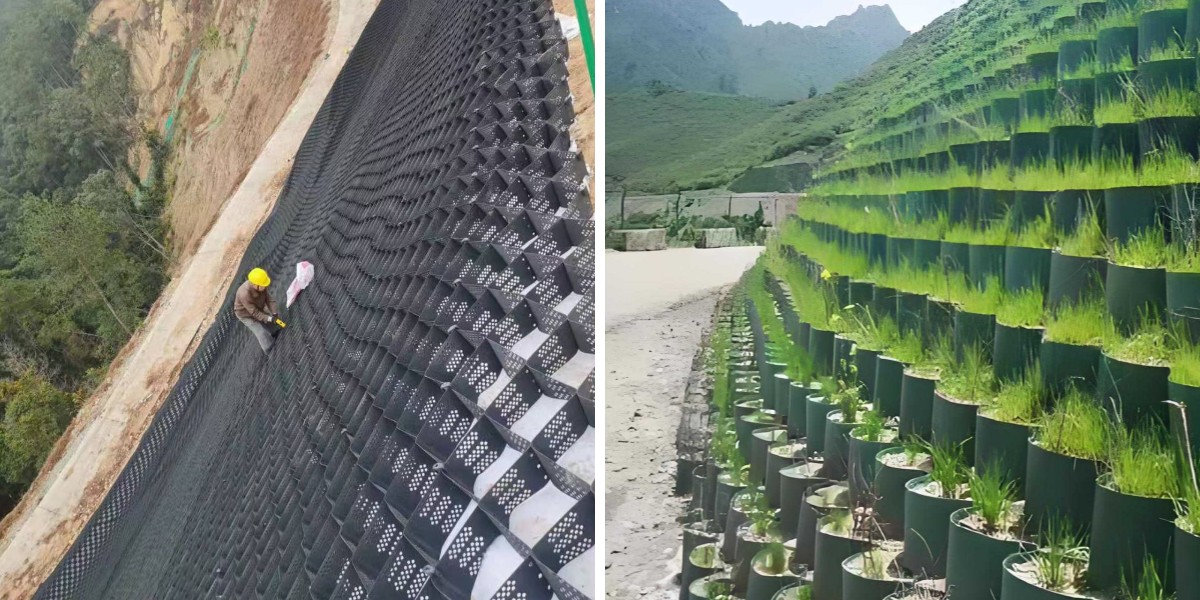

Special Considerations for Geocell Slope Protection
Installing geocell on slopes requires greater interest to element to make sure balance and durability.
Anchoring: As mentioned, anchoring is paramount. The sample and frequency of stakes will be targeted in the plan to withstand down-slope forces.
Placement Sequence: Always work from the pinnacle of the slope downwards. This permits the upper, anchored sections to assist stabilize the decrease sections as they are filled.
Infill Selection: For geocell slope protection, the infill fabric have to be non-erodible. Angular, well-graded combination is perfect as it interlocks tightly inside the cells, forming a durable, permeable armor layer that resists water go with the flow and floor erosion.
Vegetation (if applicable): In some environmental applications, the geocell might also be stuffed with topsoil and seeded. The cells defend the seeds and soil from erosion whilst the vegetation will become established, developing a reinforced, inexperienced slope.
Quality Control and Post-Installation Inspection
Your accountability would not give up as soon as the remaining mobilephone is filled. A rigorous exceptional manipulate system ensures the long-term success of the installation.
Check Anchor Integrity: Verify that all anchors are securely in region and that the geocell has now not shifted all through infill.
Verify Infill Level and Compaction: Ensure all cells are constantly crammed and that the infill fabric has been compacted to the unique density. Check for uniformity throughout the complete surface.
Final Surface Grading: The completed floor must be graded to promote appropriate drainage, stopping water from pooling on the stabilized area. This is in particular fundamental for geocell slope safety to manipulate floor runoff effectively.
Conclusion: Building a Stronger Foundation
Mastering the installation of geocell and cell confinement structures is a precious talent for any contractor. This engineered answer offers a cost-effective, durable, and environmentally pleasant technique for fixing complicated earth stabilization challenges. By adhering to appropriate web page preparation, a meticulous installation sequence, and rigorous best control—particularly for specialised purposes like geocell slope protection—you can supply superior, long-lasting consequences for your clients, constructing a recognition for great and innovation in the process.
