Using 3D Geomats for Drainage Channel Linings: Protection Against High Flow Velocities

Introduction: The Hidden Challenge of High-Velocity Drainage Channels
Drainage channels are critical infrastructure for managing stormwater runoff, agricultural irrigation, and industrial water discharge. However, when water strikes at excessive float velocities, it turns into a unfavourable force. Unprotected channel linings go through from erosion, scouring, and structural failure, main to expensive repairs and environmental damage. Traditional options like concrete or riprap have limitations—they are rigid, expensive, and frequently damage nearby ecosystems. Enter 3D geomats—a progressive erosion manage technological know-how that combines flexibility, durability, and ecological compatibility. This article explores how 3D geomats defend drainage channel linings towards excessive go with the flow velocities, whilst integrating superior substances like turf reinforcement mat, landslide safety vegetation net, and inexperienced infrastructure vegetation internet to create resilient, sustainable water conveyance systems.

Understanding 3D Geomats: Structure and Mechanism

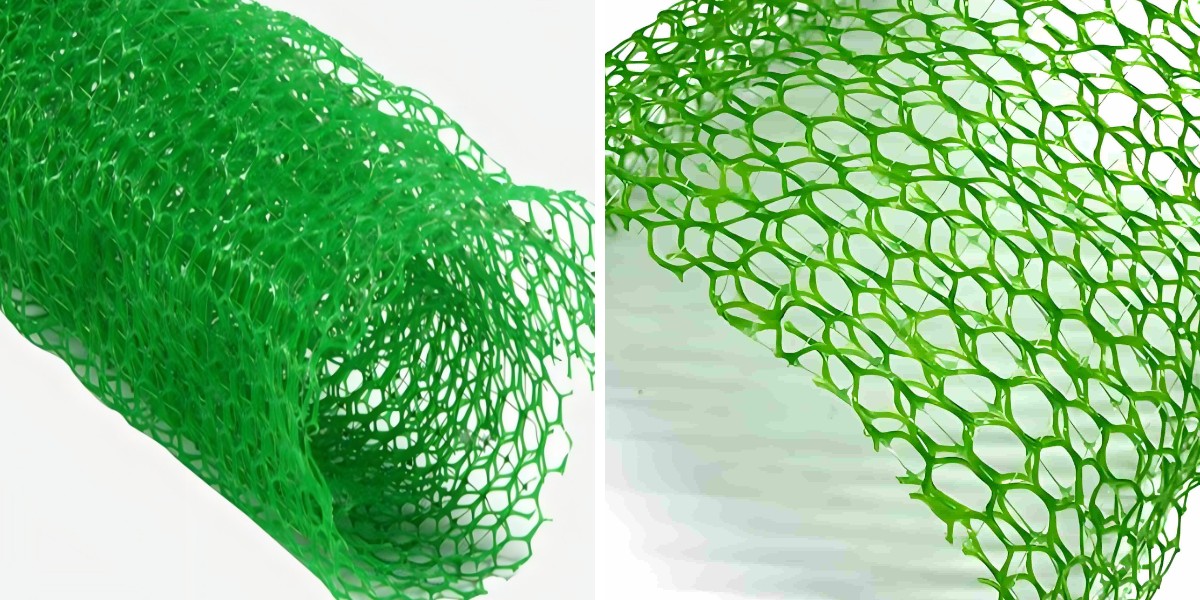

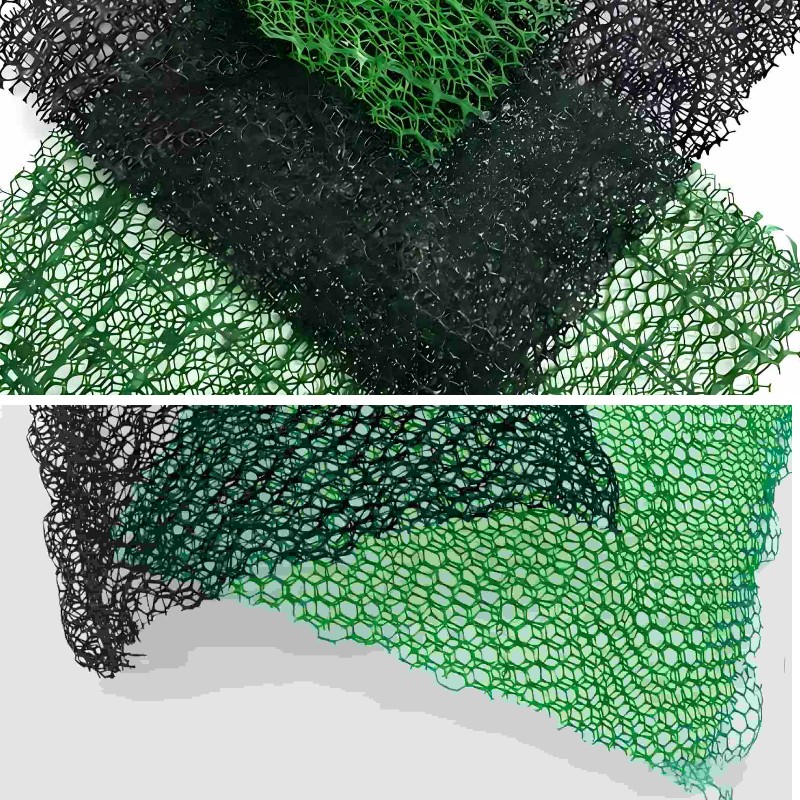

3D geomats are three-d polymeric structures—typically made from UV-stabilized polypropylene or nylon—that resemble a thick, open mesh. Their special configuration consists of entangled filaments or ribs that create a matrix of voids, regularly 10 to 20 mm thick. When positioned over organized soil or a base layer, these mats anchor the floor and promote vegetation growth. Under excessive waft velocities (exceeding 2–3 m/s), a true established 3D geomat dissipates water strength through creating micro-turbulence at the soil surface, decreasing shear stress. This mechanism prevents particle detachment and soil loss. A particular kind of 3D geomat recognised as a turf reinforcement mat takes this notion further. Turf reinforcement mats comprise stiffer, extra densely packed fibers that interlock with grass roots, forming a living, strengthened sod layer succesful of withstanding drift velocities up to 6 m/s or more. By mixing artificial reinforcement with herbal vegetation, turf reinforcement mat technological know-how presents a economical choice to difficult armoring.

The Threat of High Flow Velocities: Erosion and Scour in Drainage Channels
When water strikes unexpectedly thru a channel, it exerts three foremost forces on the lining: tractive stress (shear alongside the bed), turbulent raise (suction on particles), and influence strain from debris. Velocities above 1.5 m/s can provoke erosion in first-class soils; above three m/s, even gravels may additionally be displaced. Without protection, channels endure revolutionary degradation: rills form, deepen into gullies, undercut aspect slopes, and finally set off slope failures. In steep terrains or close to culvert outlets, high-velocity flows regularly destabilize adjoining hillslopes, main to landslides. This is the place a landslide safety vegetation internet will become critical. Such nets are specialised geosynthetics designed to fortify shallow soil layers on slopes adjoining to drainage channels. They consist of high-tenacity fibers organized in a net-like sample that distributes tensile forces throughout the slope, stopping mass movement. When mixed with a 3D geomat lining the channel bottom, a landslide safety vegetation internet extends protection to the whole corridor, making sure that neither the channel nor its banks fail underneath excessive float events.

Turf Reinforcement Mat: The Core of High-Performance Channel Linings
Among all 3D geomat variants, the turf reinforcement mat is the most extensively exact for drainage channels going through excessive waft velocities. A turf reinforcement mat differs from general erosion manipulate blankets due to the fact it keeps its thickness and integrity even beneath extended hydraulic stress. Its open, third-dimensional shape approves grass roots to develop thru and round the artificial fibers, developing a composite cloth regularly known as “reinforced vegetation.” This composite can withstand shear stresses up to six hundred Pa (equivalent to water velocities of 5–7 m/s relying on channel roughness). Field assessments have proven that channels lined with a turf reinforcement mat ride much less than 5% soil loss in contrast to naked soil below same go with the flow conditions.

Installation starts with grading the channel to its plan profile, then making use of a skinny layer of topsoil. The turf reinforcement mat is unrolled, anchored with biodegradable or metallic stakes, and seeded both earlier than or after placement. Over 4–8 weeks, grass roots intertwine with the mat’s filaments, locking the soil into a coherent mass. Once vegetated, the turf reinforcement mat approves the channel to characteristic like a herbal waterway—absorbing some infiltration, filtering pollutants, and imparting natural world habitat—while imparting the erosion resistance of concrete. For channels that journey intermittent excessive flows (e.g., stormwater conveyances), a turf reinforcement mat is best due to the fact it helps dry-season greenery besides cracking or settling issues.

Landslide Protection Vegetation Net: Securing Steep Side Slopes

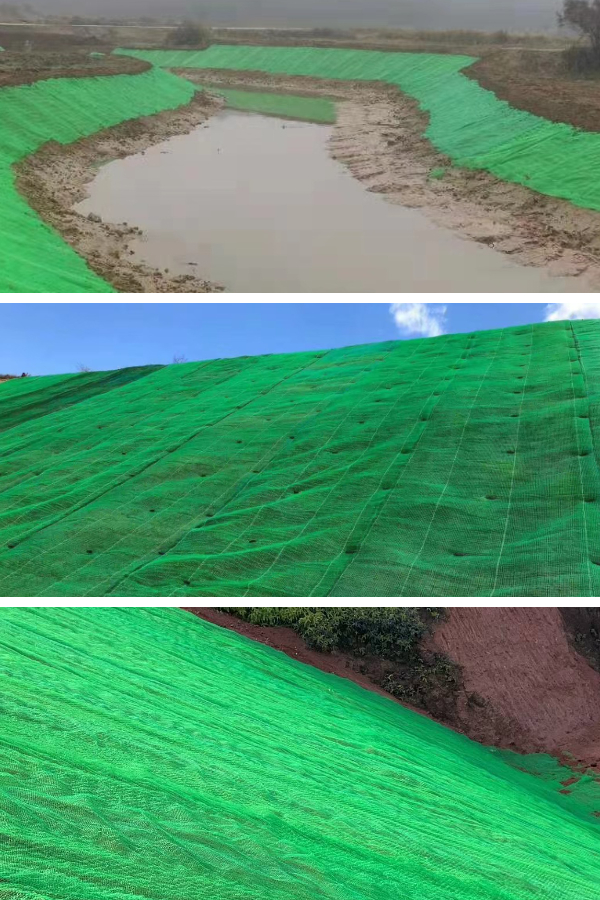

Drainage channels are regularly reduce into hillsides or built alongside valley walls, growing steep aspect slopes that are prone to shallow landslides. When high-velocity water spills over the channel banks in the course of top waft events, it saturates the soil, lowering its shear strength. Without reinforcement, slope screw ups can bury the channel, block flow, and purpose catastrophic backwater flooding. A landslide safety vegetation internet addresses this danger directly. These nets are usually heavier than general erosion blankets, with tensile strengths exceeding 20 kN/m. They are pinned deep into the slope (often 30–50 cm anchors) and may also consist of biodegradable aspects that inspire deep root penetration.

In practice, a landslide safety vegetation internet is utilized to channel aspect slopes and adjoining hillslopes up to 1:1 gradients. The internet acts as a tensioned membrane that holds soil particles in vicinity whilst permitting vegetation to establish. Over time, grass, shrub, or tree roots develop via the net, developing a root-soil composite with expanded cohesion—often 2–3 instances that of unreinforced soil. For drainage channels situation to each excessive waft velocities and seismic activity, pairing a landslide safety vegetation internet with a 3D geomat in the channel mattress creates a unified stabilization system. The internet prevents financial institution erosion that should widen the channel, minimize float depth, and decrease velocity—an frequently omitted interaction. By retaining sketch cross-sections, the landslide safety vegetation internet in a roundabout way helps retain the hydraulic overall performance of the channel lining.

Green Infrastructure Vegetation Net: Merging Ecology with Hydraulic Efficiency
Modern stormwater administration emphasizes inexperienced infrastructure—systems that mimic herbal hydrology whilst imparting engineered performance. A inexperienced infrastructure vegetation internet is a classification of 3D geomat mainly designed for minimal impact improvement (LID) drainage channels. These nets are made from recycled or unexpectedly renewable polymers and frequently encompass moisture-retentive fibers, slow-release fertilizers, and native seed carriers. Unlike traditional linings, a inexperienced infrastructure vegetation internet prioritizes fast vegetation establishment, excessive biodiversity, and pollutant filtration. For drainage channels serving city developments, parking lots, or highways, this internet transforms a utilitarian concrete ditch into a bio-swale that absorbs heavy metals, captures sediments, and reduces thermal pollution.

Under excessive waft velocities, a inexperienced infrastructure vegetation internet performs two indispensable functions. First, its open shape dissipates turbulent power close to the soil surface, equal as different 3D geomats. Second, it promotes a dense, various plant community with deep root structures that naturally armor the channel. Research suggests that channels lined with a inexperienced infrastructure vegetation internet can take care of velocities up to 4.5 m/s after two developing seasons—comparable to many synthetic-only solutions. Additionally, the internet helps infiltration thru macropores created by way of roots, lowering runoff extent and height drift quotes downstream. For engineers in search of to meet regulatory necessities for post-construction stormwater management, a inexperienced infrastructure vegetation internet affords documented erosion manage and water first-class benefits. By integrating this internet into drainage channel linings, initiatives can earn LEED credits, fulfill MS4 permits, and show ecological stewardship—all whilst withstanding severe hydraulic loads.

Comparative Advantages: Why 3D Geomats Outperform Traditional Linings
To admire the fee of 3D geomats for drainage channel linings, reflect onconsideration on the alternatives. Concrete linings withstand excessive velocities however require enlargement joints, fail when soil settles, and create useless zones for aquatic life. Riprap (loose stone) approves infiltration however regularly receives displaced at velocities above five m/s, and requires massive combination that harms circulation continuity. Asphalt linings are bendy however degrade below UV and hydrocarbons. 3D geomats, in particular when blended with turf reinforcement mat, landslide safety vegetation net, and inexperienced infrastructure vegetation net, provide a hybrid solution: they are flexible, self-repairing (vegetation regrows after damage), permeable (reduces hydrostatic pressure), and ecological. Cost analyses usually exhibit 3D geomat linings are 30–50% more cost-effective than concrete over a 20-year lifecycle, factoring in decrease fabric costs, quicker installation, and decreased maintenance.

Installation Best Practices for High-Velocity Channels

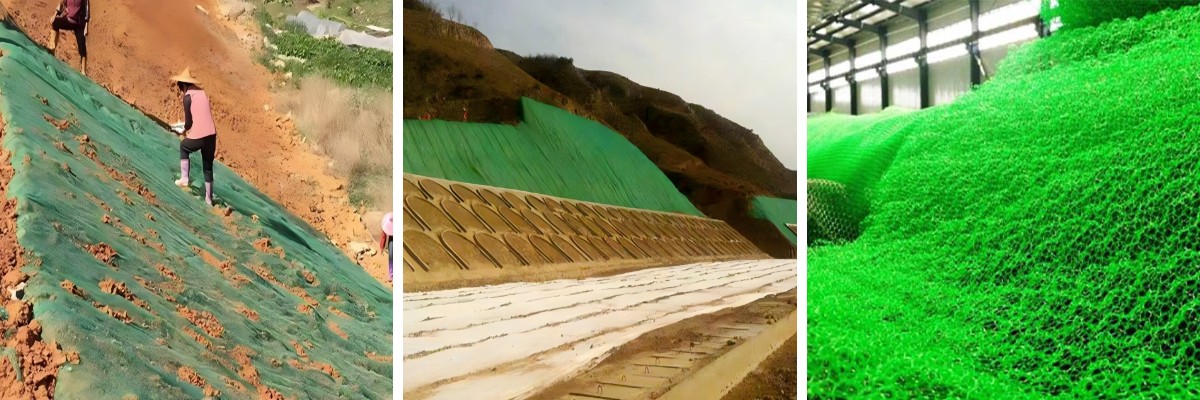

Proper set up is integral for 3D geomats to face up to excessive glide velocities. Start with a secure subgrade—compact the channel mattress and aspect slopes to 90% general Proctor density, however keep away from over-smoothing (some roughness aids anchoring). For channels anticipated to see velocities above four m/s, specify a turf reinforcement mat with a excessive mass per unit place (e.g., >500 g/m²) and double the anchor density in the backside 1/3 of the channel. Overlap adjoining mat rolls via at least a hundred and fifty mm and staple each edges each and every 30 cm. On aspect slopes steeper than 2:1, combine a landslide safety vegetation internet earlier than putting the channel mat; impervious each nets collectively with three hundred mm lengthy U-pins spaced seventy five cm apart in a staggered pattern. For inexperienced infrastructure projects, use a inexperienced infrastructure vegetation internet that consists of coir (coconut fiber) or jute backing to keep moisture for the duration of germination. After installation, cowl the internet with 1–2 cm of quality topsoil (if no longer pre-seeded) and broadcast a seed combine of deep-rooted grasses (e.g., bermudagrass, fescue, or bluegrass). Irrigate each day for the first 30 days. Never expose a 3D geomat to go with the flow velocities above 1 m/s till vegetation reaches at least 10 cm height—unvegetated mats supply solely minor erosion protection.

Maintenance and Long-Term Performance
Once vegetated, a drainage channel lined with 3D geomats requires minimal maintenance. Inspect after each and every most important storm match for symptoms of scour, mainly at transitions (e.g., culvert outlets, junctions). Small naked spots can be patched with extra turf reinforcement mat and seed. If rills show up on aspect slopes, add a landslide safety vegetation internet strip and re-anchor. For channels incorporating a inexperienced infrastructure vegetation net, display plant diversity—if invasive species dominate, spot-treat with accepted herbicides. Every 3–5 years, think about overseeding to hold dense cover. Unlike concrete, vegetated 3D geomats without a doubt enhance with age as roots thicken and intertwine. Case research from DOT tasks exhibit that channels lined with 3D geomats have carrier lives exceeding 25 years except principal rehabilitation, even below annual top velocities of five m/s.

Conclusion: Embrace 3D Geomats for Resilient Drainage Infrastructure
High waft velocities do no longer have to imply expensive, inflexible channel linings. 3D geomats grant a proven, cost-effective, and environmentally really useful alternative. By incorporating a turf reinforcement mat in the channel bed, a landslide safety vegetation internet on adjoining slopes, and a inexperienced infrastructure vegetation internet in ecologically touchy areas, engineers can plan drainage structures that face up to erosion, stop landslides, and aid inexperienced infrastructure goals. Whether you are managing stormwater in an city subdivision, defending a roadside ditch, or conveying irrigation return flows, 3D geomats provide the safety you need. Start specifying them today—and flip your drainage channels from vulnerable hyperlinks into resilient assets.
