HDPE Geomembrane for Landfills: Key Considerations for Environmental Compliance

Ensuring Leak-Proof Containment & Regulatory Adherence

Landfills are fundamental for waste management, however they pose giant environmental risks—namely, leachate (contaminated liquid from waste) seepage into soil and groundwater. Environmental rules global (e.g., EPA Subtitle D, EU Landfill Directive) mandate strong containment structures to mitigate these risks, and HDPE Geomembrane has emerged as the gold popular for landfill liners. As a durable, impermeable barrier, HDPE Geomembrane no longer solely prevents air pollution however additionally ensures compliance with strict regulatory requirements. This article explores the key concerns for the usage of HDPE Geomembrane in landfills, from cloth compliance and sketch to set up and long-term monitoring—critical for engineers, challenge managers, and landfill operators aiming to meet environmental standards.

1. Material Compliance: Choosing HDPE Geomembrane That Meets Regulatory Standards

The Foundation of Landfill Environmental Compliance

Not all HDPE Geomembrane is appropriate for landfills—regulatory our bodies impose strict fabric necessities to make certain long-term impermeability and resistance to landfill conditions, so selecting a compliant HDPE Geomembrane is the first and most imperative step in assembly environmental standards. Landfill-specific rules usually mandate HDPE Geomembrane made from virgin or recycled HDPE resin with a density of 0.940–0.965 g/cm³ for structural integrity and chemical degradation resistance, a minimal thickness of 1.5mm (60 mil) for major liners and 1.0mm (40 mil) for secondary liners (with 2.0mm+ endorsed for high-risk areas like landfill bottoms and slopes), a minimal tensile energy of 18 MPa and elongation at wreck of 500% to adapt to soil motion and settlement, and UV stabilization and resistance to natural acids, heavy metals, and hydrocarbons frequent in leachate. Additionally, seem to be for HDPE Geomembrane licensed to ASTM D751 or ISO 14688, as these requirements align with world environmental regulations, and keep away from non-compliant fabric that dangers contamination, fines, and challenge delays.

2. Design Considerations: Engineering HDPE Geomembrane Systems for Leak Prevention

Building a Compliant Containment Structure

Even the highest-quality HDPE Geomembrane will fail if the landfill liner machine is poorly designed, so regulatory compliance requires a holistic plan that debts for landfill geometry, soil conditions, and leachate administration whilst maximizing the Geomembrane’s performance. Key graph factors for compliance encompass dual-liner structures (primary HDPE Geomembrane in direct contact with waste and a secondary Geomembrane under with a leachate series machine in between for a “fail-safe” design), landfill slopes designed with a most 3:1 (horizontal:vertical) gradient (or textured HDPE Geomembrane/geotextile underlays for superior friction and stability), permeable leachate series layers (e.g., gravel, geonet) between liners to decrease hydrostatic strain on the HDPE Geomembrane, and invulnerable facet anchoring (e.g., trench anchors) and heat-welded seams with a minimal 150mm (6 inches) overlap for reliability. For complicated web sites like these with uneven terrain or excessive groundwater tables, interact a geosynthetic engineer to sketch a customized HDPE Geomembrane device that meets nearby regulatory requirements, as a well-designed machine ensures compliance and extends the landfill’s operational life.

3. Installation Best Practices: Avoiding Common Pitfalls That Jeopardize Compliance

Proper Installation = Long-Term Regulatory Adherence

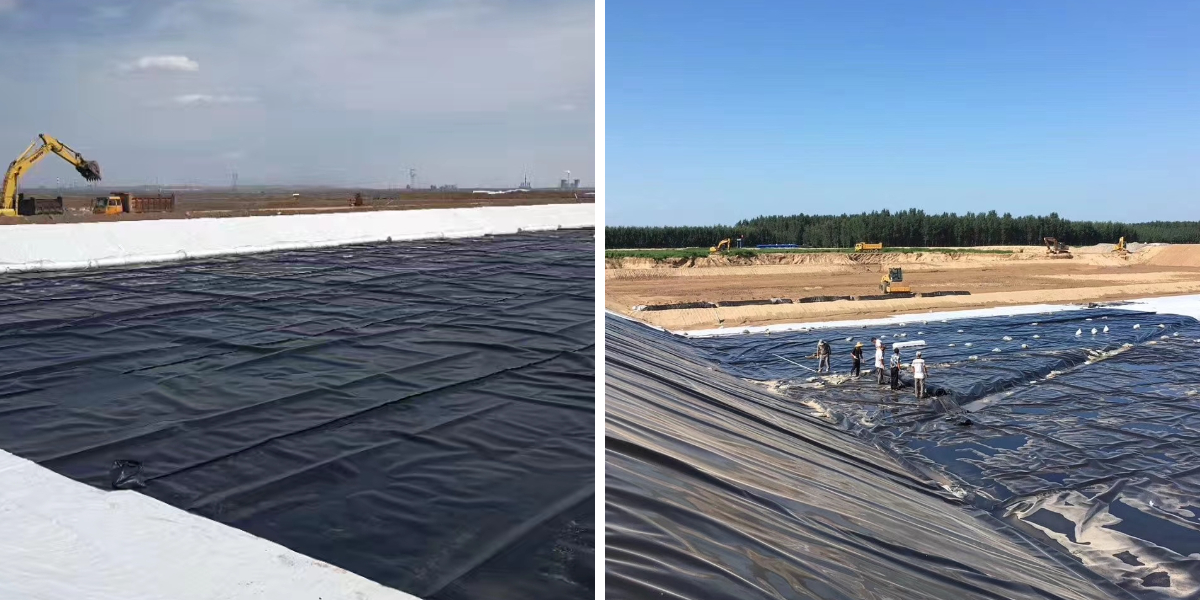

HDPE Geomembrane’s overall performance relies upon completely on right installation, as even minor errors like punctures, bad seam welding, or unsuitable anchoring can lead to leaks, violating environmental policies and inflicting irreversible pollution. Critical set up steps for compliance encompass web page practise (clearing debris, leveling and compacting soil, and laying a non-woven geotextile underlay to forestall punctures), seam welding with automated wedge welders (flat surfaces) or extrusion welders (corners/edges) observed by way of a hundred percent non-destructive trying out (air stress or vacuum testing) with documented results, keeping off injury with the aid of prohibiting heavy equipment on hooked up liners (using tracked automobiles or brief walkways) and education people on cautious handling, and impenetrable anchoring with the aid of burying liner edges in 30–60cm deep trenches (or extra stakes/concrete blocks for steep slopes). Detailed documentation of installation—including seam take a look at results, cloth certificates, and website inspections—is additionally key, as regulators can also request these information to confirm compliance throughout audits.

4. Monitoring & Maintenance: Sustaining HDPE Geomembrane Compliance Over Time

Long-Term Oversight for Regulatory Compliance

Landfill compliance doesn’t give up with installation—regulations require ongoing monitoring and protection to make sure the HDPE Geomembrane machine stays effective, as leaks can boost over time due to settlement, waste movement, or wear. Essential practices encompass putting in electrical leak detection (ELD) structures underneath the fundamental HDPE Geomembrane to discover breaches by way of electrical current, conducting quarterly visible inspections (or after excessive weather) to test for tears, punctures, or lifting edges and inspecting leachate series structures to forestall clogging, addressing harm at once (patching small tears with HDPE Geomembrane with the aid of extrusion welding or changing large sections and retesting seams), and monitoring landfill contract with markers to modify the liner device (e.g., including enlargement joints) if motion exceeds 10% to forestall tearing. Long-term preservation extends the HDPE Geomembrane’s lifespan (25–30 years with appropriate care) and ensures ongoing compliance, whilst forget can lead to leaks, penalties, and high-priced remediation.

5. Additional Compliance Considerations: End-of-Life & Remediation

Closing the Loop on Landfill Environmental Responsibility

Regulatory compliance extends past the landfill’s operational life, so applicable closure and post-closure care of the HDPE Geomembrane device are required to forestall long-term environmental harm. Key end-of-life issues encompass designing a ultimate cap gadget with a 1.0–1.5mm thick HDPE Geomembrane to stop rainwater infiltration, a drainage layer, and vegetative cowl to minimize erosion as soon as the landfill is full, conducting 30+ years of post-closure monitoring (as required with the aid of regulators) such as groundwater trying out and liner inspections whilst keeping the HDPE Geomembrane and leak detection systems, and following regulatory protocols for remediation if a leak is detected—such as excavating the affected area, repairing the Geomembrane, and treating contaminated soil or groundwater. Planning for end-of-life compliance all through the preliminary graph section avoids high priced surprises and ensures the landfill meets all regulatory necessities at some stage in its lifecycle.

Conclusion: HDPE Geomembrane Is the Cornerstone of Landfill Compliance

Landfill environmental compliance is non-negotiable—and HDPE Geomembrane is the most dependable answer for assembly strict regulatory standards. From selecting compliant substances and designing a sturdy gadget to ideal set up and ongoing maintenance, each and every step affects the liner’s overall performance and compliance.
HDPE Geomembrane’s ideal impermeability, durability, and chemical resistance make it the perfect preference for landfill containment. By following the key issues outlined in this article, engineers, challenge managers, and landfill operators can make certain their HDPE Geomembrane device prevents pollution, meets regulatory requirements, and protects the surroundings for decades.
Ready to enforce a compliant HDPE Geomembrane machine for your landfill project? Partner with a relied on dealer that affords certified, brilliant Geomembrane and gives technical guide for design, installation, and maintenance. Invest in compliance these days to keep away from fines, guard the environment, and make sure long-term landfill success.
