5mm Concrete Canvas
1. Simple and fast construction：Roll shaped supply, lightweight and easy to handle, solidifies with watering after unfolding, without the need for complex equipment, greatly shortening the construction period.
2. Good durability：After hardening, it has high strength, tear resistance, waterproof and fireproof properties, can adapt to various environments, and has a long service life.
3. Environmentally friendly materials：Compared to traditional concrete, it saves more than 95% of materials, reduces dust and noise during construction, and minimizes waste.
4. Adapt to complex terrain：The texture is soft and bendable, and can fit irregular terrain such as slopes and rivers. Construction is not limited by terrain.
Product Introduction

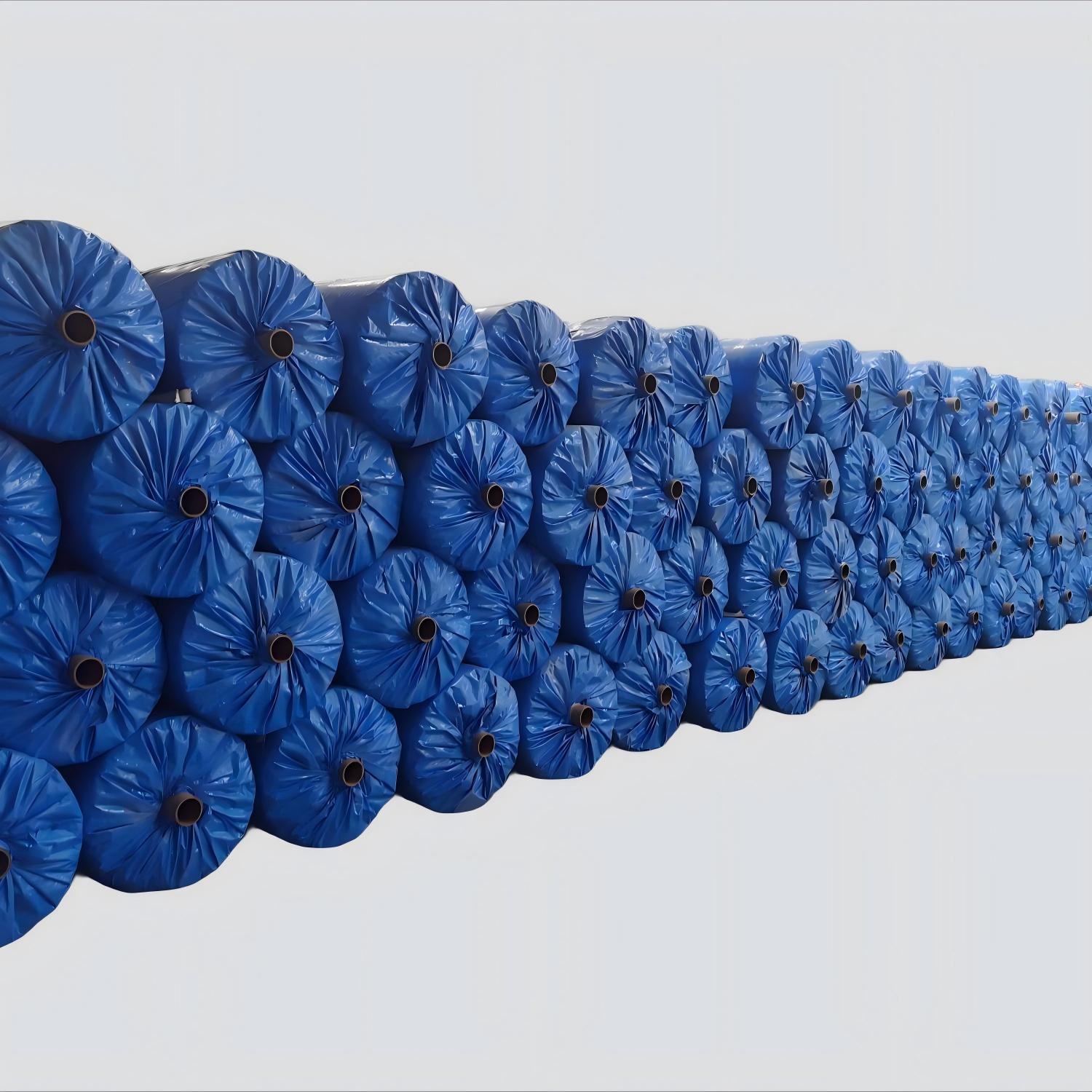

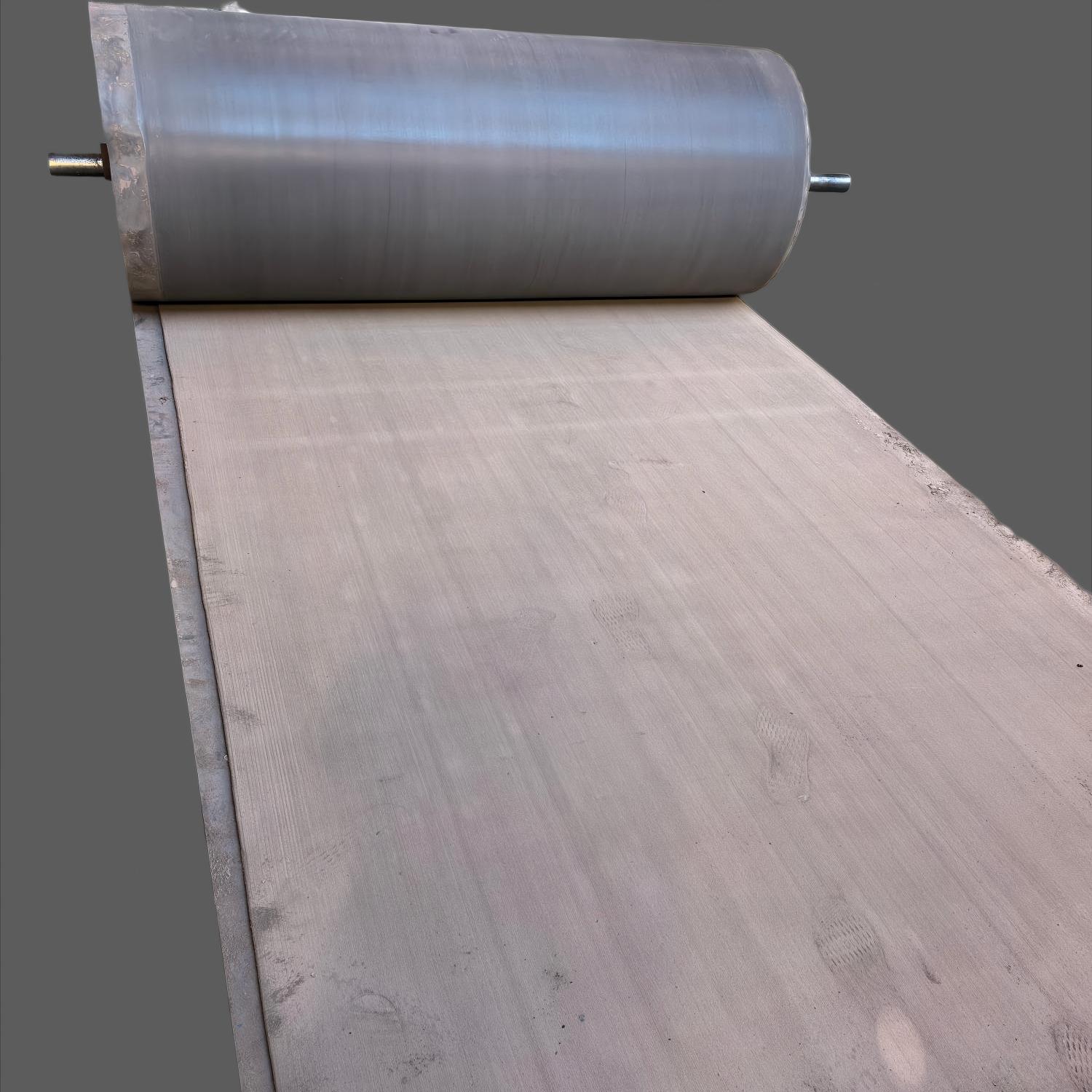

Convenient construction: 5mm Concrete Canvas is supplied in a roll shape, lightweight in texture, and can be easily transported by a single person. Transportation and installation do not require the assistance of large mechanical equipment. During on-site construction, simply lay and water to initiate the curing process, making the operation extremely simple. In general, the daily construction area can reach 400 square meters with the cooperation of two people.
Rapid prototyping: After watering, it can be processed in terms of size and shape within a short period of time, with strong plasticity within 2 hours. Within 24 hours, the hardening degree can reach 80% strength. And, according to special needs, the formula can be adjusted to achieve rapid solidification or delayed solidification, flexibly meeting different construction schedule requirements.
High strength and durability: The internal fiber reinforced material greatly enhances the overall strength, effectively preventing cracking problems from occurring. Its compressive strength can usually reach the C40 concrete standard or even higher, and its flexural strength performance is also excellent. At the same time, it has good chemical resistance, can resist long-term erosion from wind and rain, and will not easily degrade under ultraviolet irradiation. Under normal use, its durability can last up to 50 years.
Excellent waterproof and fireproof performance: The waterproof layer design on the bottom enables it to have complete waterproof function, effectively blocking moisture infiltration and further enhancing its resistance to chemical erosion. In addition, its building materials and products have a combustion performance rating of A, with excellent fire resistance.
Environmental advantages: It belongs to low-quality and low-carbon technology products, and compared with commonly used concrete, the material consumption can be reduced by up to 95%. The alkali content is strictly controlled within a limited range, with minimal impact on the local ecological environment. Moreover, it can operate in a low temperature environment of -5 ℃, especially suitable for high-altitude regions. The foundation does not require complex treatment and can adapt well to foundation deformation.

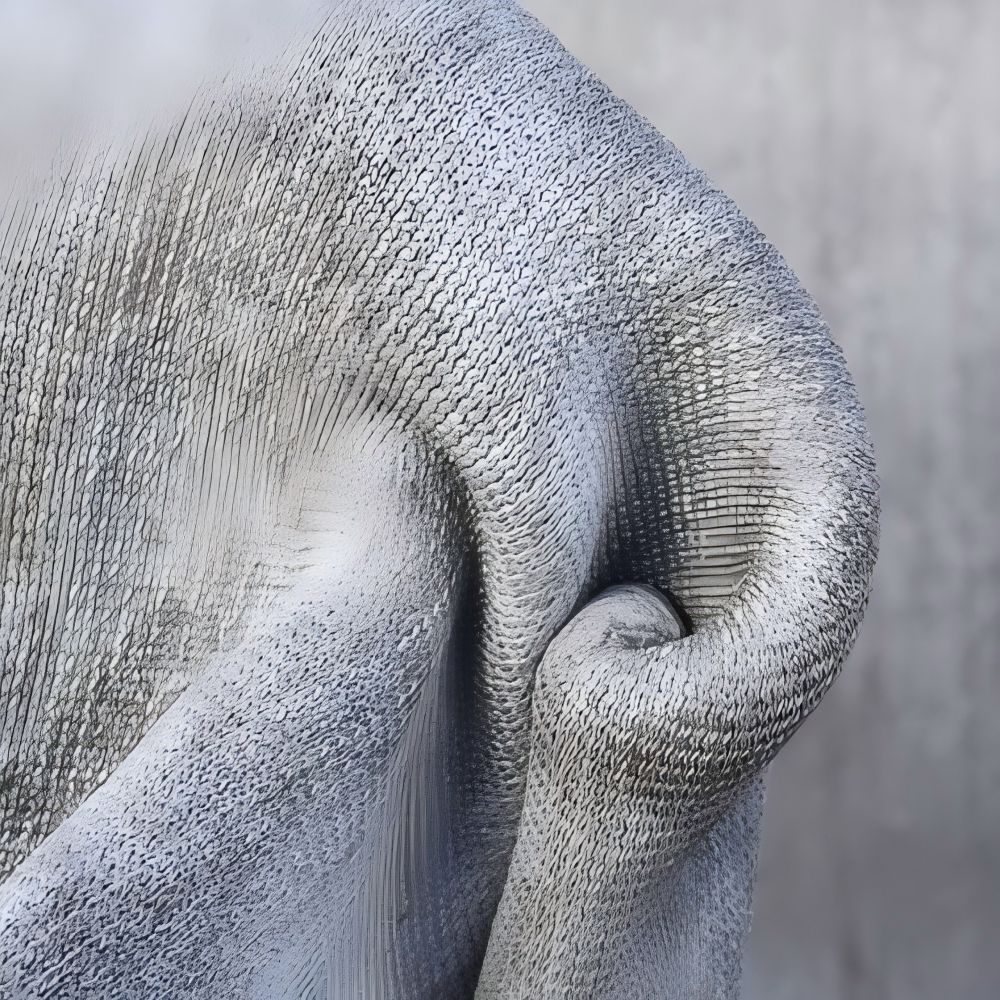

High application flexibility: It has good drape and can closely follow various complex shapes, even forming hyperbolic shapes. Before solidification, ordinary hand tools can be used for cutting or trimming to meet diverse engineering shape requirements
Product Parameters
surveillance project | DYSNT-A1 | DYSNT-B1 | DYSNT-C1 | Test basis | remarks |
length (M) | 10--50 | / | |||
width (M) | 1--3 | / | |||
thickness (mm) | 6mm/8mm/9mm/10mm/12mm/15mm/20mm | / | |||
Compressive strength (MPa) | ≧50 | ≧70 | ≧85 | GB/T17671-2021 | |
Flexural strength (MPa) | ≧13 | ≧18 | ≧22 | GB/T 7019-2014 | |
Flexural strength retention rate after freeze-thaw cycles (%) | ≧85% | ≧90% | ≧90% | GB/T 50082-2009 | The freezing and thawing cycle from 50 to 200 times changed the indexes accordingly |
Water quality requirements for hydration | running water | Tap water, sea water | Tap water, seawater, sewage | / | |
Construction temperature conditions | · Construction above 0℃ | · Construction above-5℃ | · Construction above-5℃ | / | |
fire protecting performance | B1 | GB 8624-2012 | |||
Harmful substance leaching test items | Limitation index (mg/L) | GB 5085.3-2007 | |||
Copper (total copper) (mg/L) | ≤100 | ||||
Zinc (total zinc) (mg/L) | ≤100 | ||||
Cadmium (total) (mg/L) | ≤1 | ||||
Lead (total lead) (mg/L) | ≤5 | ||||
Total chromium (mg/L) | ≤15 | ||||
Nickel (total nickel) | ≤5 | ||||
Arsenic (total) | ≤5 | ||||
Product Application
1、 Application of Water Conservancy Engineering

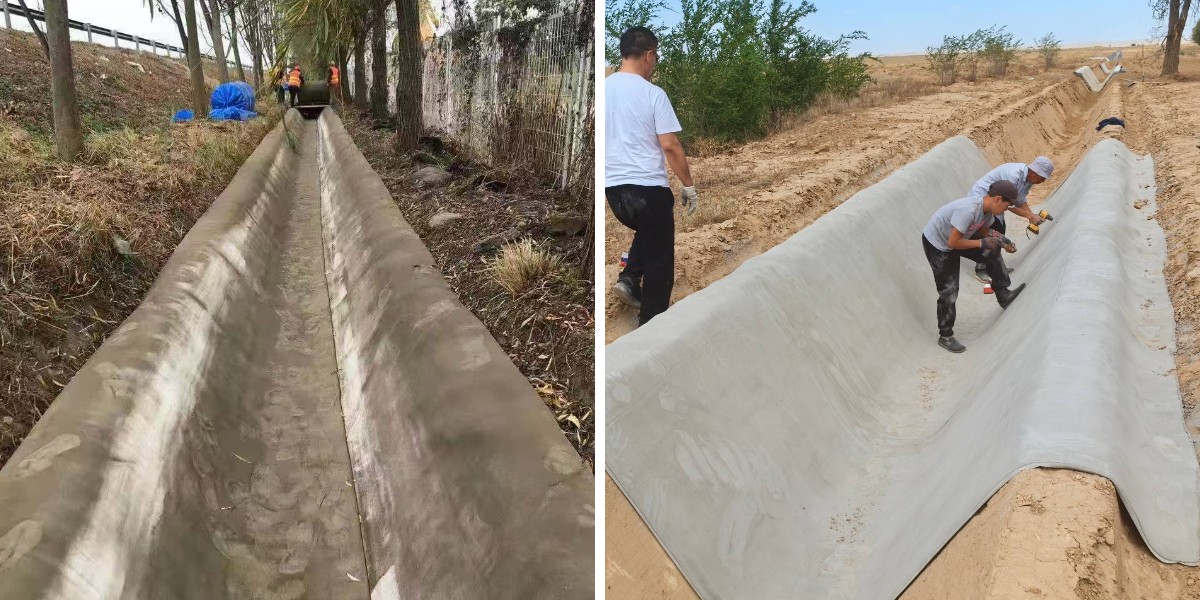

River and canal lining
Cement blankets can be quickly laid at the bottom of rivers, canals, and slopes. Its waterproof performance prevents water leakage and reduces water resource waste; High strength characteristics resist long-term erosion by water flow and maintain structural stability. In small-scale farmland irrigation channels, rapid construction can be carried out to reduce the impact on agricultural water use.

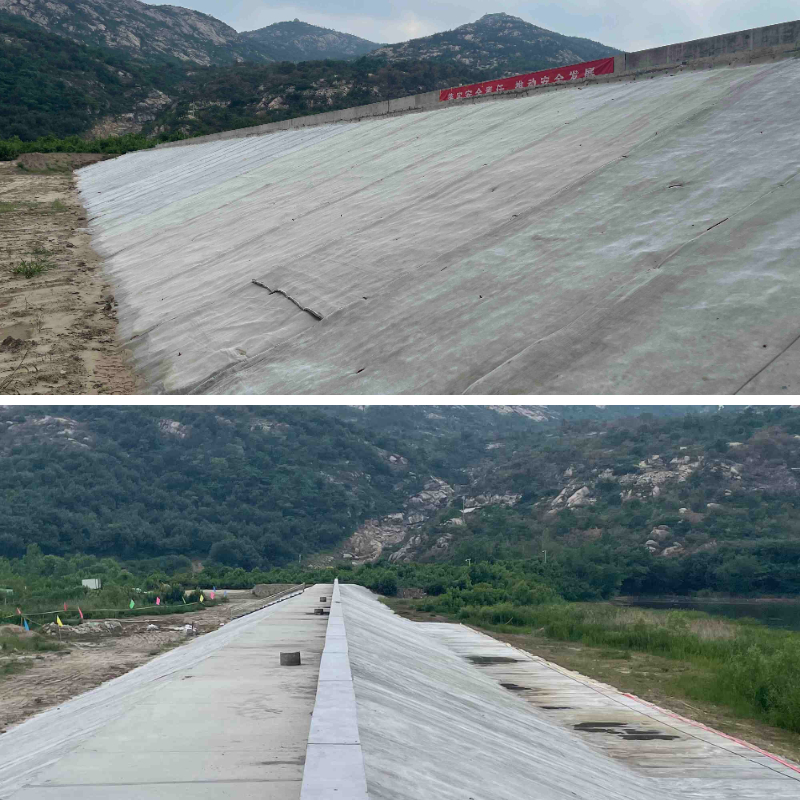

Reservoir and embankment protection
Used for anti-seepage at the bottom of reservoirs, preventing water leakage and ensuring water storage capacity. Laying on the upstream and downstream sides of the dam to enhance its anti-seepage and erosion resistance, cope with extreme situations such as floods, and improve the safety of water conservancy facilities.
Construction of fish ponds and aquaculture ponds
Laying at the bottom and around the fish pond effectively prevents water leakage and stabilizes the aquaculture environment. Meanwhile, its durability can reduce frequent repairs, lower breeding costs, and increase breeding profits.
2、 Transportation Engineering Applications

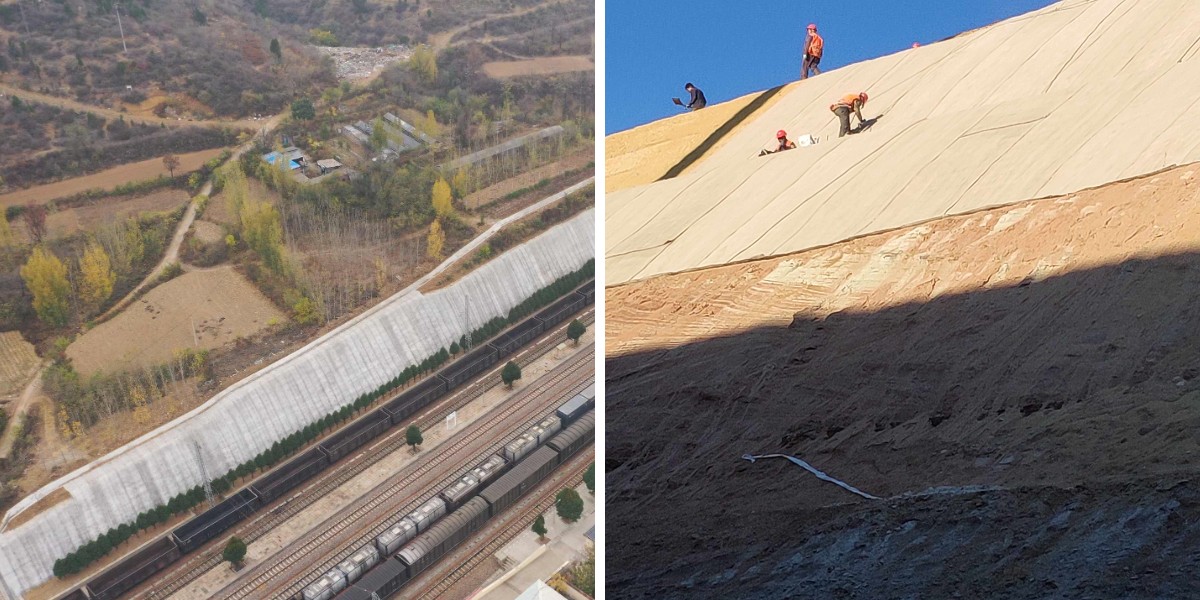

Road slope protection
Laying cement blankets on the slopes of highways and railways to reinforce the soil and prevent soil erosion and slope collapse. Its rapid curing characteristics make it suitable for emergency construction under harsh conditions such as rainy season, ensuring road safety.
Road repair
Cement blankets can quickly repair potholes and damages on roads. After laying, water and solidify to restore road traffic capacity in a short period of time. Compared with traditional repair methods, it greatly shortens construction time and reduces the impact on traffic.
3、 Application of Environmental Protection Engineering
Anti seepage measures for landfill sites
Laying cement blankets at the bottom and slopes of landfills can effectively prevent leachate leakage, avoid soil and groundwater pollution, and meet the strict requirements of environmental engineering for anti-seepage.
Protection of sewage treatment facilities
Lay on the inner surface of sewage treatment tanks, regulating tanks and other facilities to prevent sewage from corroding the tank body, extend the service life of the facilities, and ensure the stable operation of the sewage treatment system.
4、 Emergency and Temporary Engineering Applications
Flood control and emergency rescue
When a flood comes, cement blankets can be quickly laid at the weak points and breaches of the dam to quickly form a waterproof barrier, block the flood, seize the rescue time, and protect the lives and property of surrounding residents.
Temporary shelter construction
After disasters such as earthquakes and mudslides, temporary shelters are built using cement blankets. After hardening in the presence of water, it forms a sturdy shell with waterproof and fireproof properties, providing a safe shelter for disaster stricken people.
5、 Other applications
Slope greening assistance
Laying cement blankets on slopes and planting plants on their surfaces can not only reinforce the slopes, but also achieve greening and beautify the environment. It is suitable for slope areas such as garden landscapes and both sides of highways.
Underground pipeline protection
After the underground pipeline is laid, covering it with a cement blanket can protect the pipeline from external pressure, soil erosion, and extend its service life.
Cement blankets play a key role in various fields such as water conservancy, transportation, environmental protection, and emergency response due to their convenient construction, rapid prototyping, high strength, durability, and environmental friendliness. Whether it is permanent engineering construction or temporary emergency and repair needs, cement blankets can provide efficient and reliable solutions, and are a new type of engineering material with great potential for application.
